MASTER CYLINDER

ZR50SK 1982 (X) (E02 E16 E17 E21 E41)

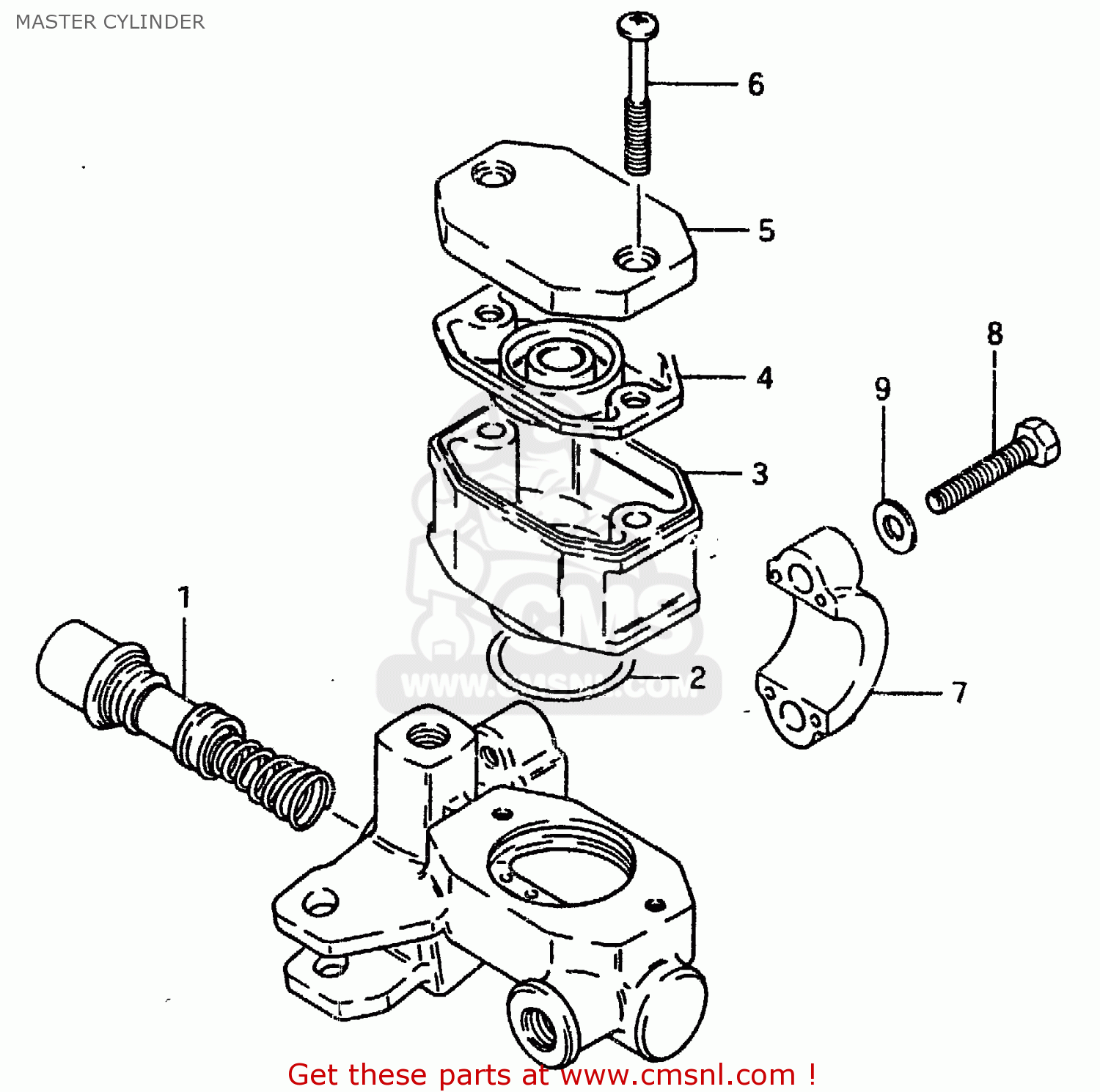

Master cylinder diagram ZR50SK 1982 (X) (E02 E16 E17 E21 E41)

MASTER CYLINDER ZR50SK 1982 (X) (E02 E16 E17 E21 E41)

MASTER CYLINDER ZR50SK 1982 (X) (E02 E16 E17 E21 E41)

prices are in EUR

ref

part #

description

quantity

0

5960036550
ref: 0

CYLINDER ASSY, MASTER

€ 225.50

1

5960036810
ref: 1

PISTON & CUP SET

€ 38.50

2

5968645100
ref: 2

O RING

€ 9.50

3

5968736500
ref: 3

RESERVOIR

€ 13.50

4

5966736500
ref: 4

DIAPHRAGM

€ 8.00

5

5966936500
ref: 5

CAP,RESERVOIR

€ 13.50

6

5969136500
ref: 6

SCREW

€ 1.50

7

5967136500
ref: 7

HOLDER

€ 10.00

8

0110706258
ref: 8

BOLT

€ 2.00

9

0832221068
ref: 9

WASHER

€ 2.00
