FUEL COCK

ZR50SK 1982 (X) (E02 E16 E17 E21 E41)

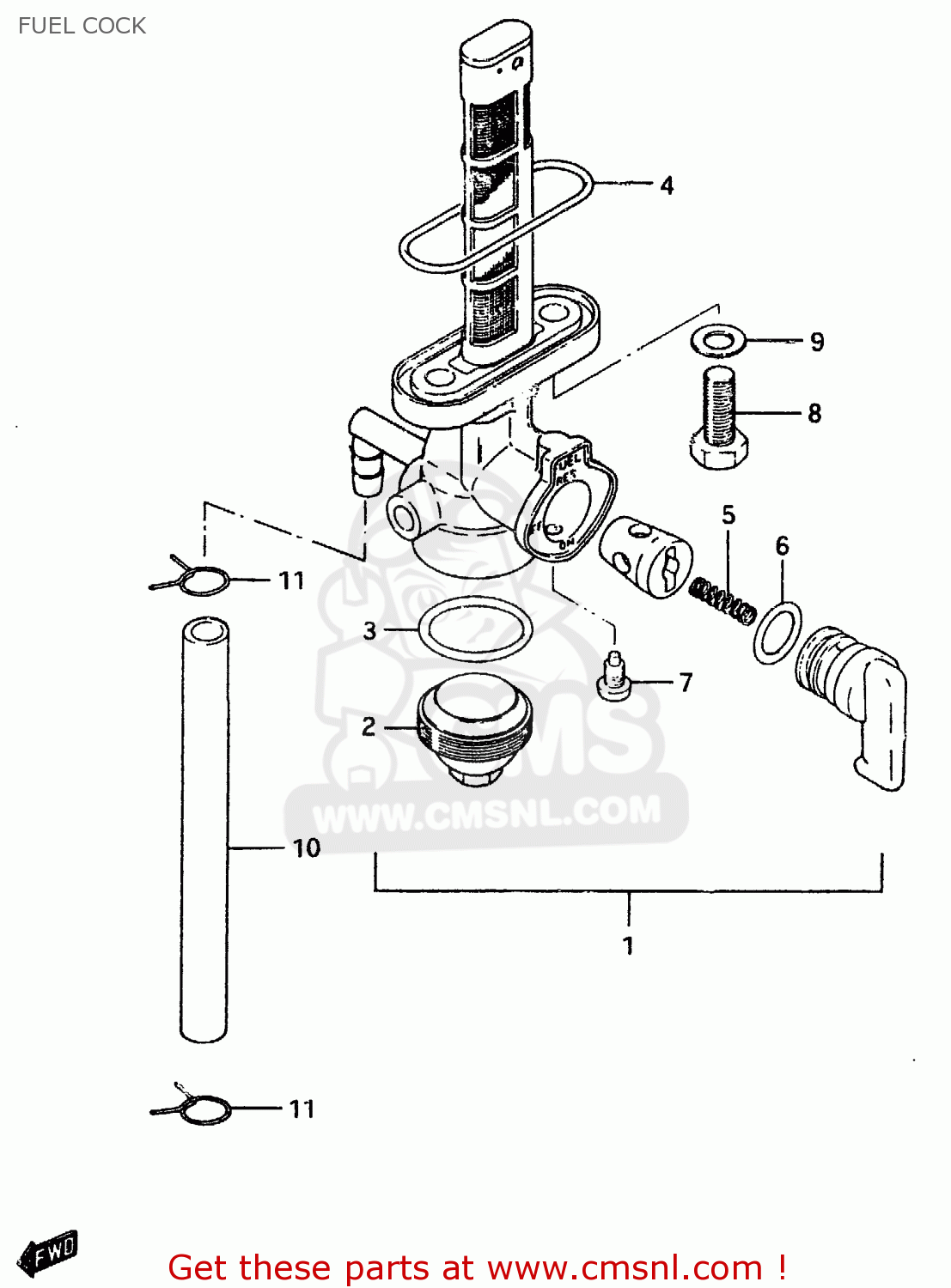

Fuel cock diagram ZR50SK 1982 (X) (E02 E16 E17 E21 E41)

FUEL COCK ZR50SK 1982 (X) (E02 E16 E17 E21 E41)

FUEL COCK ZR50SK 1982 (X) (E02 E16 E17 E21 E41)

prices are in EUR

ref

part #

description

quantity

1

4430013271
ref: 1

COCK ASSY, FUEL

€ 57.50

2

4434728071
ref: 2

CUP,STRAINER

€ 7.50

3

4434628070
ref: 3

GASKET,FILTER (NAS)

€ 2.50

4

4434828070
ref: 4

O RING,FUEL COCK

€ 4.50

5

4435732470
ref: 5

SPRING

€ 2.00

6

4435332470
ref: 6

O-RING

€ 7.50

7

4434341370
ref: 7

SCREW

€ 2.00

8

0912806006
ref: 8

BOLT(6X20)

€ 2.00

9

0916806010
ref: 9

GASKET

€ 2.00

10

0934305129
ref: 10

HOSE

€ 13.00

11

0940108402
ref: 11

CLIP

€ 1.50
