BATTERY

ZR50SK 1982 (X) (E02 E16 E17 E21 E41)

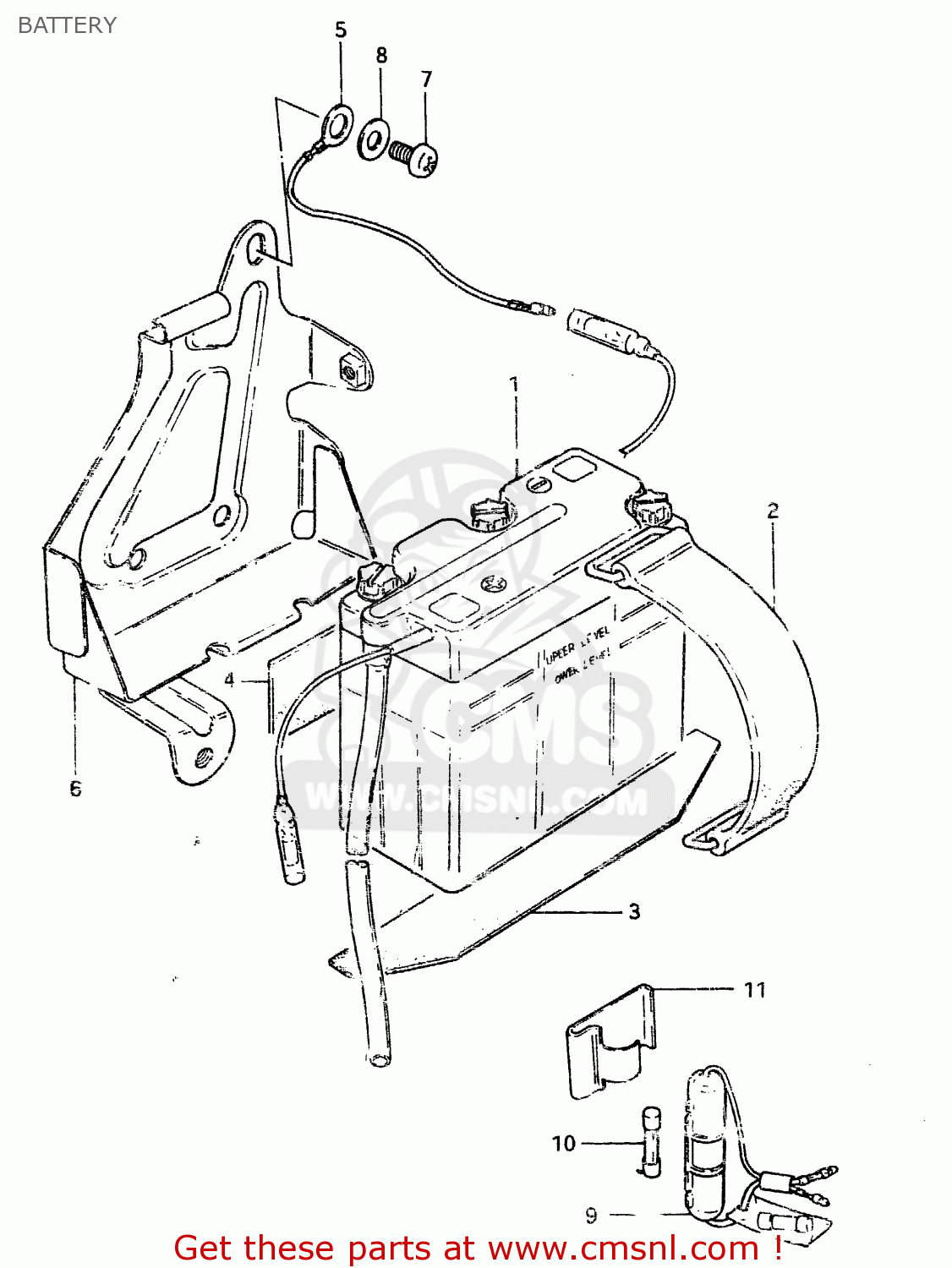

Battery diagram ZR50SK 1982 (X) (E02 E16 E17 E21 E41)

BATTERY ZR50SK 1982 (X) (E02 E16 E17 E21 E41)

BATTERY ZR50SK 1982 (X) (E02 E16 E17 E21 E41)

prices are in EUR

ref

part #

description

quantity

1

3361003610
ref: 1

BATTERY(6N4B-2A,6V4.2AH)

€ 49.50

2

0946200067
ref: 2

BAND

€ 4.50

3

3365126400
ref: 3

PROTECTOR,BATTERY

€ 4.00

4

3365234000
ref: 4

PROTECTOR(30X80X2)

€ 4.50

5

3686227690
ref: 5

LEAD WIRE

€ 9.00

6

4154046530
ref: 6

HOLDER, BATTERY

€ 13.50

7

0211206128
ref: 7

SCREW 6X12

€ 2.00

8

0832221068
ref: 8

WASHER

€ 2.00

9

3674035011
ref: 9

BOX ASSEMBLY,FUSE

€ 11.00

10

0948110001
ref: 10

FUSE(10A)

€ 2.00

11

3679146700
ref: 11

HOLDER,FUSE CASE

€ 9.00
