CRANKCASE

ZR50SK 1982 (X) (E02 E16 E17 E21 E41)

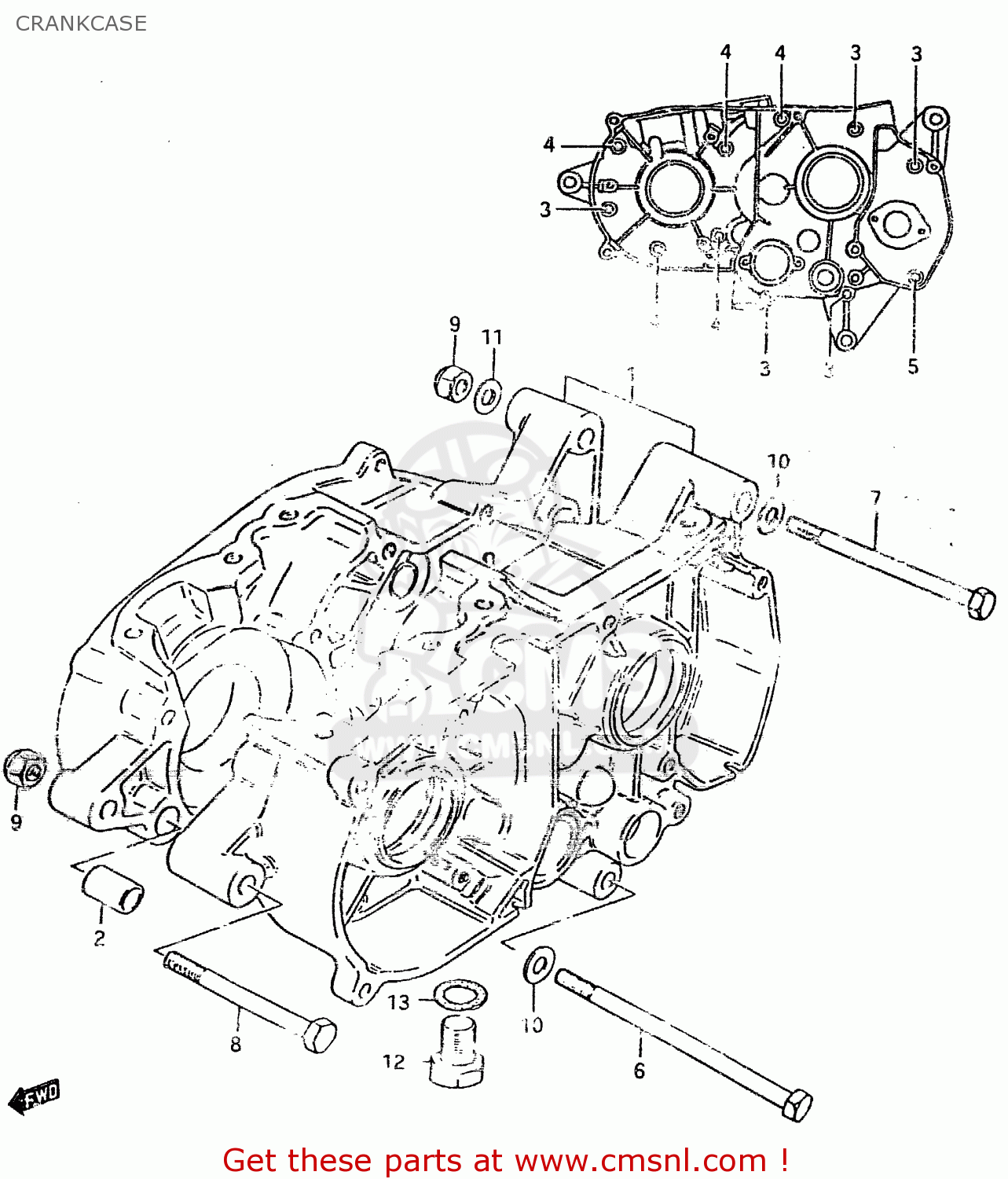

Crankcase diagram ZR50SK 1982 (X) (E02 E16 E17 E21 E41)

CRANKCASE ZR50SK 1982 (X) (E02 E16 E17 E21 E41)
CRANKCASE ZR50SK 1982 (X) (E02 E16 E17 E21 E41)
CRANKCASE ZR50SK 1982 (X) (E02 E16 E17 E21 E41)
prices are in EUR
ref
part #
description
quantity
1
1130046826
ref: 1
CRANKCASE SET
€ 272.00
2
0421111189
ref: 2
PIN
0421111189
€ 2.00
3
0211206458
ref: 3
SCREW (6X45)
0211206458
€ 2.00
4
0211206358
ref: 4
SCREW (6X35)
€ 2.50
5
0211206258
ref: 5
SCREW
€ 2.00
6
0910008027
ref: 6
BOLT
€ 4.00
7
0910308009
ref: 7
BOLT
0910308009
€ 5.00
8
0151708758
ref: 8
BOLT 8X75
€ 3.50
9
0915908020
ref: 9
NUT
0915908020
€ 2.50
10
0832211088
ref: 10
WASHER
0832211088
€ 2.00
11
0916008030
ref: 11
WASHER
€ 2.50
12
0110710208
ref: 12
BOLT 10X20
0110710208
€ 3.50
13
0916810002
ref: 13
GASKET(10X14X3.6) (NAS)
0916810002
€ 2.00
