HANDLE SWITCH

ZR50SK 1982 (X) (E02 E16 E17 E21 E41)

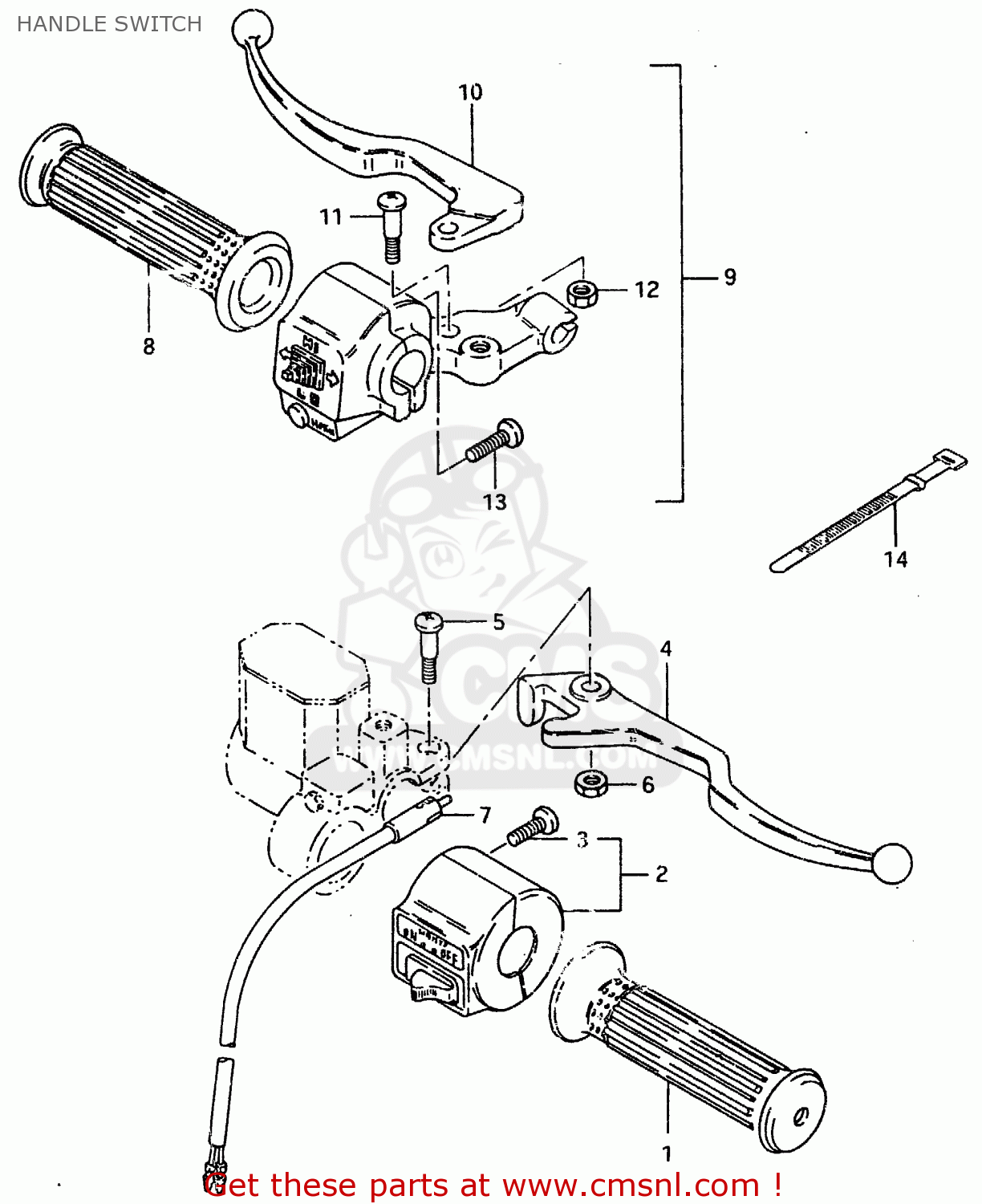

Handle switch diagram ZR50SK 1982 (X) (E02 E16 E17 E21 E41)

prices are in EUR

ref

part #

description

quantity

5711013000
ref: 1

GRIP,THROTTLE

€ 17.00

3720013020
ref: 2

SWITCH ASSY, HANDLE RH

€ 66.50

3720013000
ref: 2
E17

SWITCH ASSY, HANDLE RH

€ 82.50

0211205208
ref: 3

SCREW 5X20

€ 3.00

5742113000
ref: 4

LEVER,BRAKE

€ 18.00

5743113010
ref: 5

SCREW

€ 5.50

0831921068
ref: 6

NUT 6MM

€ 2.00

5746013000
ref: 7

SWITCH ASSEMBLY

€ 18.00

5721146111
ref: 8

GRIP,L

€ 7.50

5750013000
ref: 9

LEVER ASSY, CLUTCH

€ 88.50

5762013000
ref: 10

LEVER,CLUTCH

€ 29.50

5743113000
ref: 11

SCREW

€ 5.00

5763327500
ref: 12

NUT,LEVER BOLT

€ 1.50

0211205208
ref: 13

SCREW 5X20

€ 3.00

0940712402
ref: 14

CLAMP(L:120)

€ 3.00
