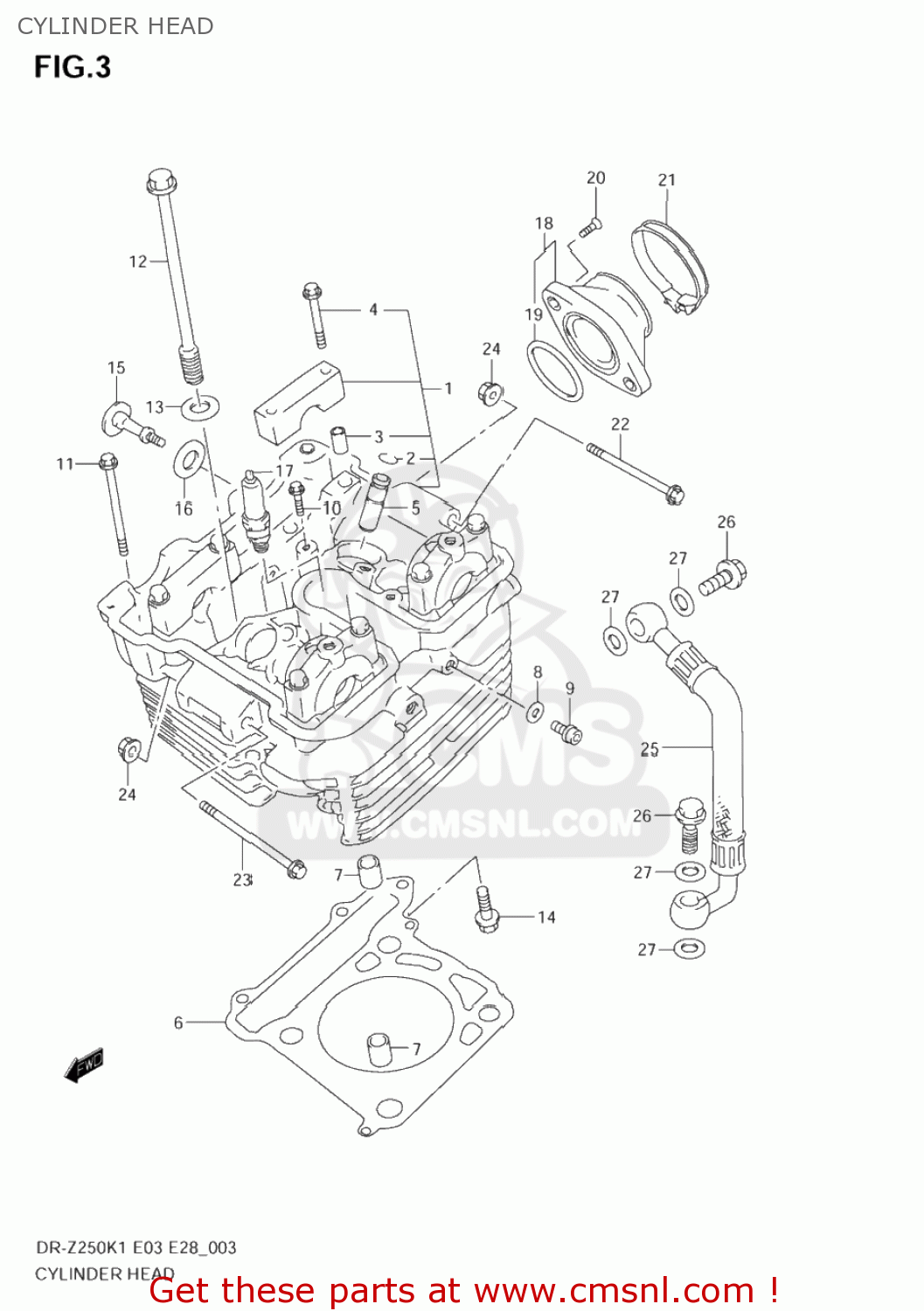

CYLINDER HEAD

ref

part #

description

quantity

1-1

1110013E01
ref: 1-1

HEAD ASSY,CYLINDER

€ 0.00

1-2

1110013E10
ref: 1-2

HEAD ASSY,CYLINDER

€ 0.00

2

0938110004
ref: 2

RING,SNAP

€ 1.50

3

0920608001
ref: 3

PIN(6.2X8X11)

€ 2.00

4

0910306165
ref: 4

BOLT(6X45)

€ 2.50

5

1111533D71
ref: 5

GUIDE,VALVE(OS:0.3)

€ 23.00

6

1114113E00
ref: 6

GASKET,CYLINDER HEAD

€ 32.50

7

0421113189
ref: 7

PIN

€ 2.50

8

0916806023
ref: 8

GASKET(5.8X13X1.2) (NAS)

€ 2.00

9

0155006123
ref: 9
01550-0612A

BOLT

€ 2.50

10

0712006123
ref: 10
07120-0612B

BOLT

€ 3.50

11

0910306103
ref: 11

BOLT(6X70)

€ 2.50

12

0910310272
ref: 12

BOLT(10X160)

€ 14.00

13

0916810031
ref: 13

GASKET(10.2X20X2).3 (NAS)

€ 2.00

14

0155006303
ref: 14
01550-0630A

BOLT

€ 2.50

15

1116133E00
ref: 15

BOLT,CYL HEAD SIDE FACE

€ 8.00

16

1119113E00
ref: 16

WASHER,HEAD COVER

€ 4.00

17-1

0948200458
ref: 17-1

PLUG,SPARK(NGK CR9E)

€ 8.50

17-2

0948200459
ref: 17-2

PLUG,SPARK(U27ESR-N)

€ 8.50

17-3

0948200456
ref: 17-3

PLUG,SPARK(CR8E)

€ 7.00

17-4

0948200460
ref: 17-4

PLUG,SPARK(CR10E)

€ 8.50

17-5

0948200457
ref: 17-5

PLUG,SPARK(U24ESR-N)

€ 7.00

17-6

0948200461
ref: 17-6

PLUG,SPARK(U31ESR-N)

€ 8.50

18-1

1310113E01
ref: 18-1

PIPE ASSY,INTAKE

€ 0.00

18-2

1310113E20
ref: 18-2

PIPE ASSY,INTAKE

€ 0.00

19

0928041007
ref: 19

O RING(D:1.9,ID:40.7)

€ 10.50

20

0912606014
ref: 20

SCREW(6X16)

€ 2.00

21-1

0940252208
ref: 21-1

CLAMP

€ 5.50

21-2

0940248208
ref: 21-2

CLAMP

€ 4.50

22

0910308217
ref: 22

BOLT(8X60)

€ 3.00

23

0910308099
ref: 23

BOLT(8X70)

€ 6.00

24

0831931088
ref: 24
08319-3108A

NUT

€ 2.50

25

1648013E00
ref: 25

HOSE,T/M OIL OUTER

€ 88.00

26

0936010032
ref: 26
09360-10055

BOLT UNION

€ 3.00

27

0916810007
ref: 27

GASKET(10.1X16X1) (NAS)

€ 2.00
