MAGNETO

DR-Z250 2005 (K5) USA (E03) DRZ250 DR Z250

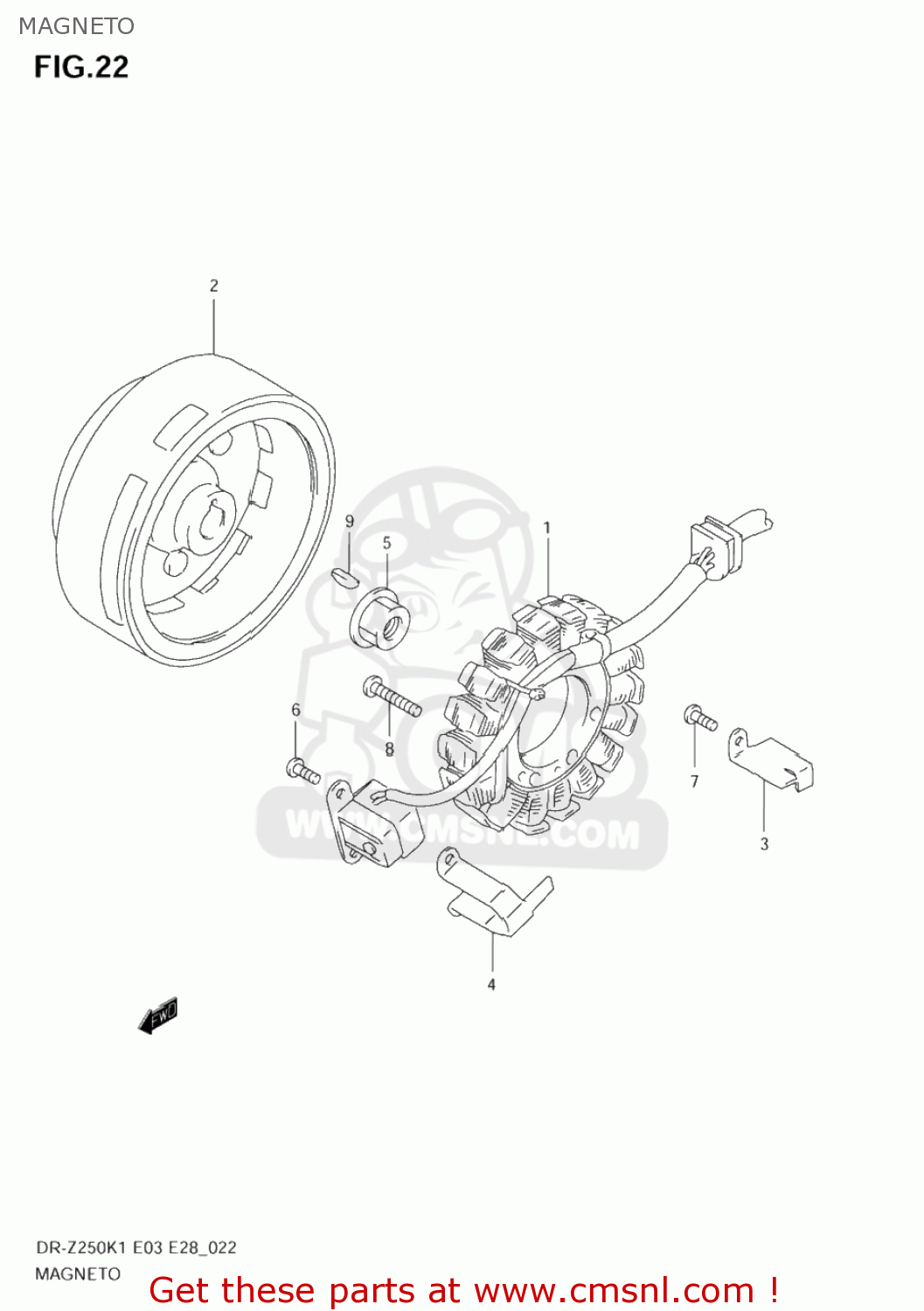

Magneto diagram DR-Z250 2005 (K5) USA (E03) DRZ250 DR Z250

prices are in EUR

ref

part #

description

quantity

3210113E02
ref: 1

STARTER ASSY

€ 633.00

3210213E00
ref: 2

ROTOR ASSY

€ 409.50

3237113E10
ref: 3

CLAMP,MAGNETO LEAD

€ 8.00

3237114D01
ref: 4

CLAMP,MAGNETO LEAD WIRE

€ 3.50

0831610123
ref: 5
08316-1012A

NUT

€ 2.50

0211205103
ref: 6
02112-0510A

SCREW

€ 2.00

0211205103
ref: 7
02112-0510A

SCREW

€ 2.00

0211205253
ref: 8
02112-0525A

SCREW

€ 1.50

0942004008
ref: 9

KEY

€ 3.50
