TRANSMISSION

DR-Z250 2005 (K5) USA (E03) DRZ250 DR Z250

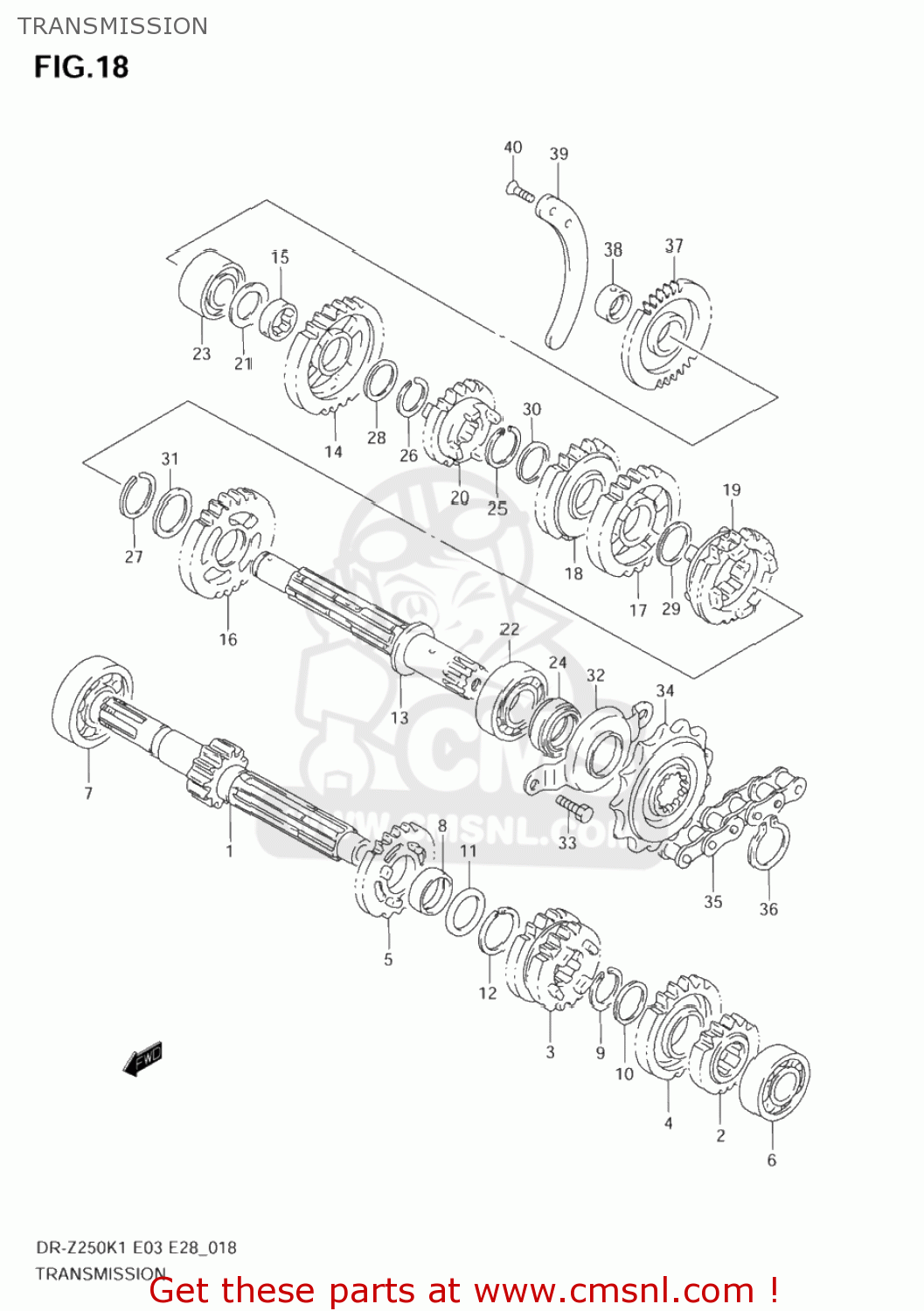

Transmission diagram DR-Z250 2005 (K5) USA (E03) DRZ250 DR Z250

TRANSMISSION DR-Z250 2005 (K5) USA (E03) DRZ250 DR Z250
TRANSMISSION DR-Z250 2005 (K5) USA (E03) DRZ250 DR Z250
TRANSMISSION DR-Z250 2005 (K5) USA (E03) DRZ250 DR Z250
prices are in EUR
ref
part #
description
quantity
1
2412014D20
ref: 1
SHAFT,COUNTER(NT:12)
€ 0.00
2
2422114D10
ref: 2
GEAR,2ND DRIVE(NT:15)
€ 0.00
3
2423114D00
ref: 3
GEAR,3RD & 4TH DRIVE(NT:18/18)
2423114D00
€ 108.00
4
2425114D00
ref: 4
GEAR,5TH DRIVE(NT:21)
2425114D00
€ 84.50
5
2426114D02
ref: 5
GEAR,6TH DRIVE(NT:23)
2426114D02
€ 83.00
6
0926217046
ref: 6
BEARING(17X40X12)
0926217046
€ 23.00
7
0926220116
ref: 7
09262-20145
BEARING 20X52X15
0926220116
€ 24.00
8
0930022008
ref: 8
BUSH(22X26X9)
0930022008
€ 10.50
9
0938022006
ref: 9
CIRCLIP
0938022006
€ 3.00
10
0918122111
ref: 10
SHIM(22X26X1)
0918122111
€ 3.00
11
0918122167
ref: 11
SHIM(22X30X1)
0918122167
€ 3.00
12
0938022006
ref: 12
CIRCLIP
0938022006
€ 3.00
13
2413014D20
ref: 13
SHAFT,DRIVE
€ 0.00
14
2431114D01
ref: 14
GEAR,1ST DRIVEN(NT:29)
2431114D01
€ 61.50
15
2431214D00
ref: 15
BUSH,1ST DRIVEN GEAR
2431214D00
€ 15.00
16
2432014D00
ref: 16
GEAR,2ND DRIVEN(NT:26)
2432014D00
€ 87.50
17
2433114D10
ref: 17
GEAR,3RD DRIVEN(NT:24)
2433114D10
€ 40.50
18
2434114D10
ref: 18
GEAR,4TH DRIVEN(NT:20)
€ 0.00
19
2435114D01
ref: 19
GEAR,5TH DRIVEN(NT:20)
2435114D01
€ 95.00
20
2436114D01
ref: 20
GEAR,6TH DRIVEN(NT:19)
2436114D01
€ 95.50
21
0918122167
ref: 21
SHIM(22X30X1)
0918122167
€ 3.00
22
0926222024
ref: 22
BEARING(22X56X16)
0926222024
€ 40.00
23
0926717003
ref: 23
BEARING(17X40X17.5)
0926717003
€ 57.00
24
0928322025
ref: 24
SEAL,OIL(22X34X7)
0928322025
€ 12.50
25
0938022006
ref: 25
CIRCLIP
0938022006
€ 3.00
26
0938022006
ref: 26
CIRCLIP
0938022006
€ 3.00
27
0938025010
ref: 27
CIRCLIP
0938025010
€ 3.00
28
0821117322
ref: 28
WASHER
0821117322
€ 2.50
29
0918122139
ref: 29
SHIM(22X28X1)
0918122139
€ 4.00
30
0918122139
ref: 30
SHIM(22X28X1)
0918122139
€ 4.00
31
0918125167
ref: 31
SHIM(25X34X1)
0918125167
€ 3.50
32
2475114D00
ref: 32
RETAINER,DRIVE SHAFT OIL SEAL
€ 8.00
33
0150006123
ref: 33
01500-0612A
BOLT
0150006123
€ 2.00
34
2751115D00
ref: 34
27511-37F00
SPROCKET,ENGINE (NT:13)
€ 23.50
35
2760022D50112
ref: 35
CHAIN,DRIVE
€ 129.50
36
0938022012
ref: 36
CIRCLIP
0938022012
€ 3.50
37
2626114D10
ref: 37
GEAR,KICK STARTER IDLE(NT:27)
2626114D10
€ 58.50
38
2626214D00
ref: 38
BUSH,KICK STARTER IDLE GEAR
2626214D00
€ 11.00
39
2626413E00
ref: 39
RETAINER,KICK IDLE GEAR
€ 0.00
40
0912606014
ref: 40
SCREW(6X16)
0912606014
€ 2.00
