REAR MASTER CYLINDER

DR-Z250 2005 (K5) USA (E03) DRZ250 DR Z250

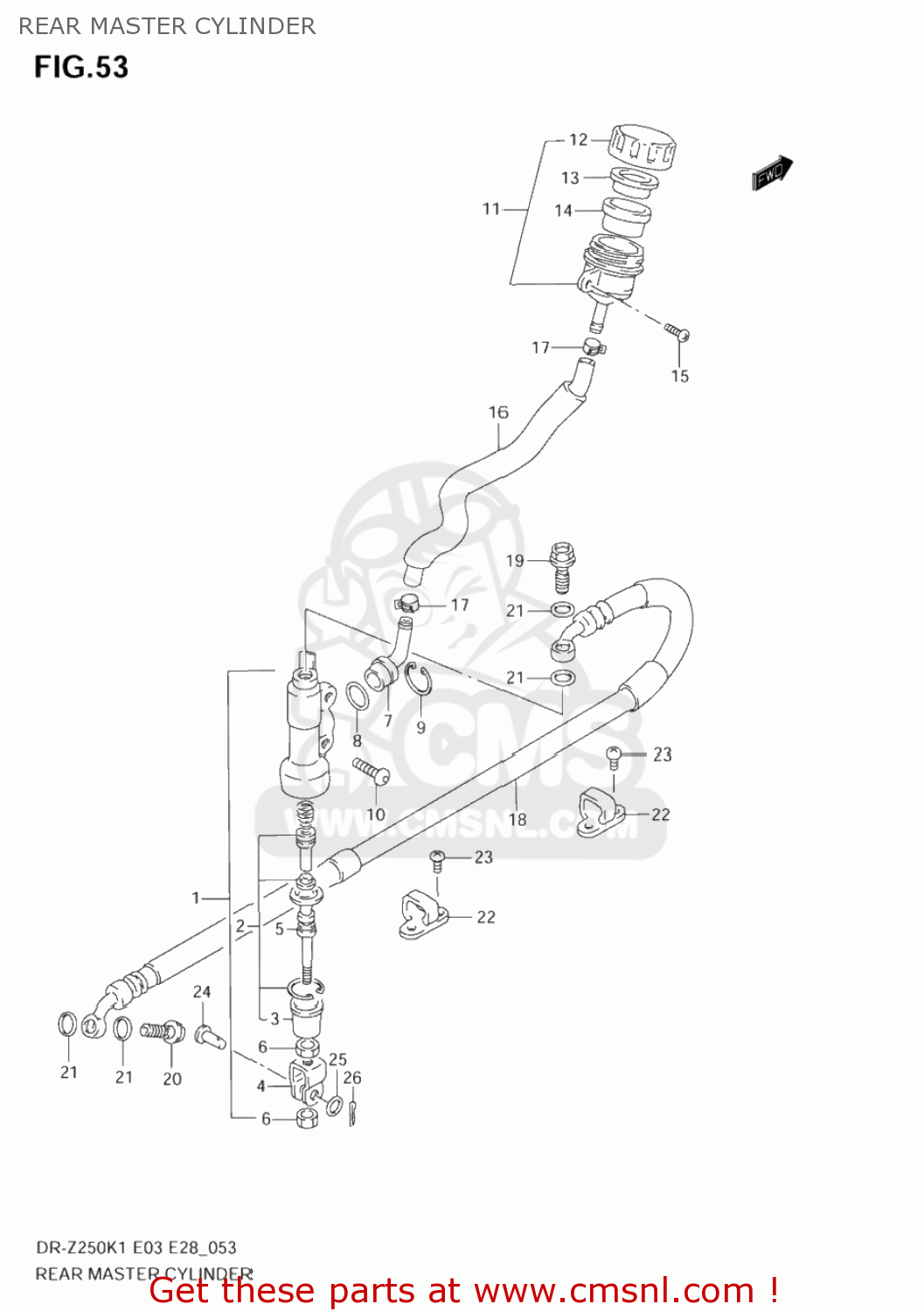

Rear master cylinder diagram DR-Z250 2005 (K5) USA (E03) DRZ250 DR Z250

REAR MASTER CYLINDER DR-Z250 2005 (K5) USA (E03) DRZ250 DR Z250
REAR MASTER CYLINDER DR-Z250 2005 (K5) USA (E03) DRZ250 DR Z250
REAR MASTER CYLINDER DR-Z250 2005 (K5) USA (E03) DRZ250 DR Z250
prices are in EUR
ref
part #
description
quantity
1
6960013E00
ref: 1
CYLINDER ASSY,RR MASTER
€ 0.00
2
6960034820
ref: 2
PISTON/CUP SET
6960034820
€ 37.00
3
6969100A00
ref: 3
BOOT
6969100A00
€ 3.50
4
6969213E00
ref: 4
YOKE
€ 11.00
5
6967001D00
ref: 5
ROD,PUSH
6967001D00
€ 24.50
6
6969305A00
ref: 6
NUT
6969305A00
€ 1.50
7
6967200B20
ref: 7
CONNECTOR
6967200B20
€ 5.00
8
6968634200
ref: 8
O RING
6968634200
€ 3.50
9
6967400B20
ref: 9
CIRCLIP
6967400B20
€ 3.00
10
0913906067
ref: 10
SCREW(6X16)
0913906067
€ 3.00
11
6974005D10
ref: 11
TANK ASSY,RESERVOIR
6974005D10
€ 48.00
12
6966903D00
ref: 12
CAP
6966903D00
€ 11.00
13
6966800B20
ref: 13
PLATE
6966800B20
€ 4.00
14
6966700B20
ref: 14
DIAPHRAGM
6966700B20
€ 9.50
15
0214206123
ref: 15
02142-0612A
SCREW 6X12
0214206123
€ 2.00
16
6973013E00
ref: 16
HOSE,RESERVOIR TANK
€ 0.00
17
0940112404
ref: 17
CLIP
0940112404
€ 2.50
18
6948013E00
ref: 18
69480-13E01
HOSE, REAR BRAKE
€ 48.50
19
0936010041
ref: 19
09360-10061
BOLT UNION
€ 6.50
20
0936010042
ref: 20
09360-10062
BOLT UNION
0936010042
€ 5.00
21
0916110009
ref: 21
WASHER(10X15X1.5)
0916110009
€ 2.00
22
6119627C30
ref: 22
GUIDE,RR BRAKE
6119627C30
€ 5.50
23
0214205103
ref: 23
02142-0510B
SCREW
0214205103
€ 2.50
24
0920008048
ref: 24
PIN(8X20)
0920008048
€ 3.00
25
0916008119
ref: 25
09160-08090
WASHER (8.5X14X1.6)
€ 2.50
26
0411120158
ref: 26
04111-2015A
PIN
0411120158
€ 1.50
