WIRING HARNESS

DR-Z250 2005 (K5) USA (E03) DRZ250 DR Z250

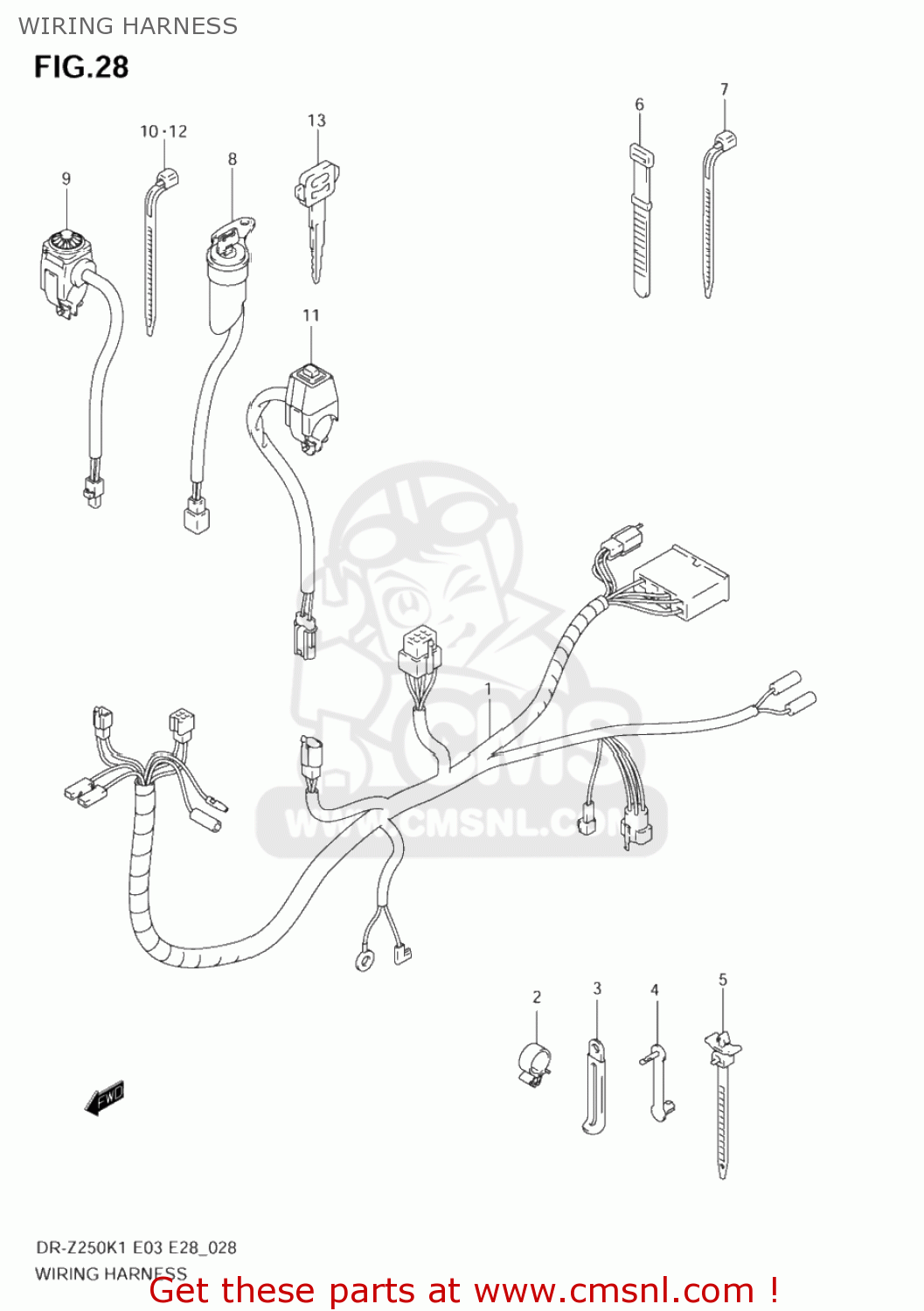

Wiring harness diagram DR-Z250 2005 (K5) USA (E03) DRZ250 DR Z250

prices are in EUR

ref

part #

description

quantity

1-1

3661013EA0
ref: 1-1

HARNESS, WIRING

€ 0.00

1-2

3661013EB0
ref: 1-2

HARNESS,WIRING

€ 149.00

0940316410
ref: 2
09407-11402

CLAMP

€ 1.50

0940406429
ref: 3

CLAMP(L:45)

€ 2.50

0940703401
ref: 4

CLAMP(L:33)

€ 3.50

0940711402
ref: 5

CLAMP(L:90)

€ 2.50

0940712402
ref: 6

CLAMP(L:120)

€ 3.00

7-1

0940714403
ref: 7-1

CLAMP(L:125)

€ 2.50

7-2

0940725401
ref: 7-2

CLAMP(L:235)

€ 4.00

3711013E01
ref: 8

SWITCH ASSY,IGNITION

€ 83.50

3731029F00
ref: 9

SWITCH ASSY,STARTER

€ 46.00

0940712402
ref: 10

CLAMP(L:120)

€ 3.00

3782036E00
ref: 11

SWITCH ASSY,ENGINE STOP

€ 21.00

0940712402
ref: 12

CLAMP(L:120)

€ 3.00

13-1

3714603A00
ref: 13-1

KEY,BLANK(TYPE:C)

€ 6.00

13-2

3714603A10
ref: 13-2

KEY,BLANK(TYPE:D)

€ 6.00

13-3

3714603A20
ref: 13-3

KEY,BLANK(TYPE:E)

€ 6.00

13-4

3714603A30
ref: 13-4

KEY,BLANK(TYPE:F)

€ 6.00
