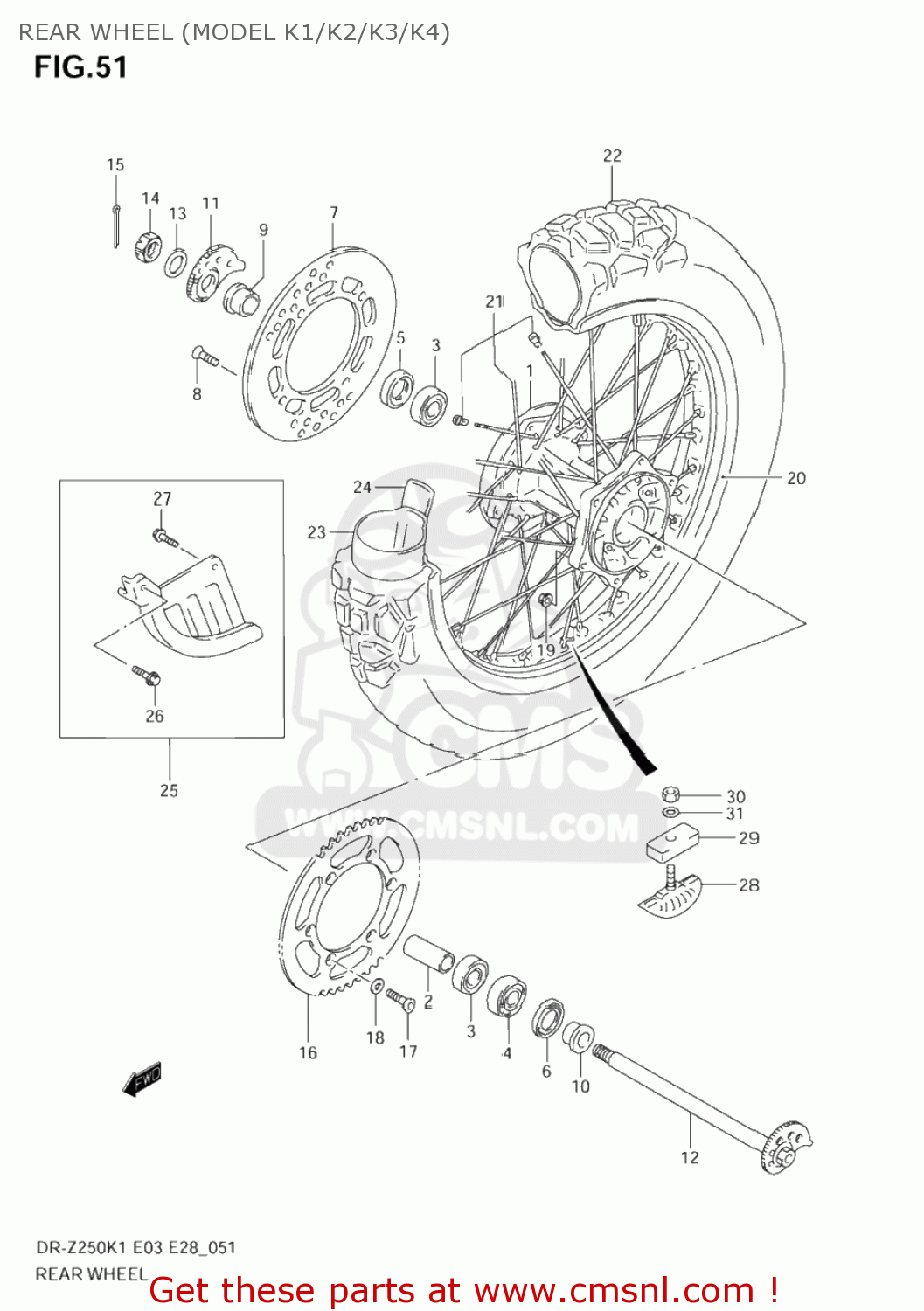

REAR WHEEL (MODEL K1/K2/K3/K4)

ref

part #

description

quantity

1

6411114D10
ref: 1

HUB,RR WHEEL

€ 260.00

2

6473113E00
ref: 2

SPACER,RR HUB BEARING

€ 17.00

3

0812360047
ref: 3
08133-60047

BALL BEARING

€ 21.00

4

0812362047
ref: 4

BEARING

€ 17.00

5

0928226001
ref: 5

SEAL,OIL(26X42X8)

€ 13.00

6

0928326019
ref: 6

SEAL,OIL(26X47X5)

€ 9.50

7

6921103D10
ref: 7

DISC,RR BRAKE

€ 166.00

8

0910608155
ref: 8

BOLT(8X20)

€ 4.00

9

6474114D00
ref: 9

SPACER,RR AXLE,R

€ 13.00

10

6475105D00
ref: 10

SPACER,RR AXLE,L

€ 15.00

11

6141032E00
ref: 11

ADJUSTER,CHAIN,R

€ 11.50

12

6471032E10
ref: 12

AXLE,RR

€ 0.00

13

0916019022
ref: 13

WASHER(19X32X3.2)

€ 5.00

14

0831440183
ref: 14
08314-4018A

NUT

€ 4.50

15

0411140308
ref: 15
04111-4030A

PIN,COTTER

€ 1.50

16

6451100B01
ref: 16

SPROCKET,RR(NT:49)

€ 99.00

17

0912008004
ref: 17

SCREW(8X33.5)

€ 3.00

18

0832201083
ref: 18
08322-0108A

WASHER

€ 1.50

19

0831931087
ref: 19

NUT

€ 2.50

20

6531114D00
ref: 20

RIM,RR WHEEL(18X2.15 AL)

€ 248.00

21

6532014D00
ref: 21

SPOKE SET,RR WHEEL

€ 64.50

22

6511013E80
ref: 22

TIRE,RR

€ 0.00

22

6511013E80
ref: 22

TIRE,RR

€ 0.00

23

6520013E00
ref: 23

TUBE ASSY,WHEEL INNER

€ 0.00

24

6526113E00
ref: 24

PROTECTOR,WHL INR TUBE

€ 0.00

25

6920028C00
ref: 25

COVER SET,RR BRAKE DISC

€ 29.50

26

0155006123
ref: 26
01550-0612A

BOLT

€ 2.50

27

0155006203
ref: 27
01550-0620A

BOLT

€ 2.50

28-1

6527043D00
ref: 28-1

STOPPER,BEAD(1.85)

€ 30.50

28-2

6527028E00
ref: 28-2

STOPPER,BEAD(2.15)

€ 38.00

29

6527127C00
ref: 29

CUSHION,BEAD STOPPER

€ 5.50

30

0831000083
ref: 30
08310-0008A

NUT

€ 1.50

31

0832201083
ref: 31
08322-0108A

WASHER

€ 1.50
