STARTING MOTOR

DR-Z250 2005 (K5) USA (E03) DRZ250 DR Z250

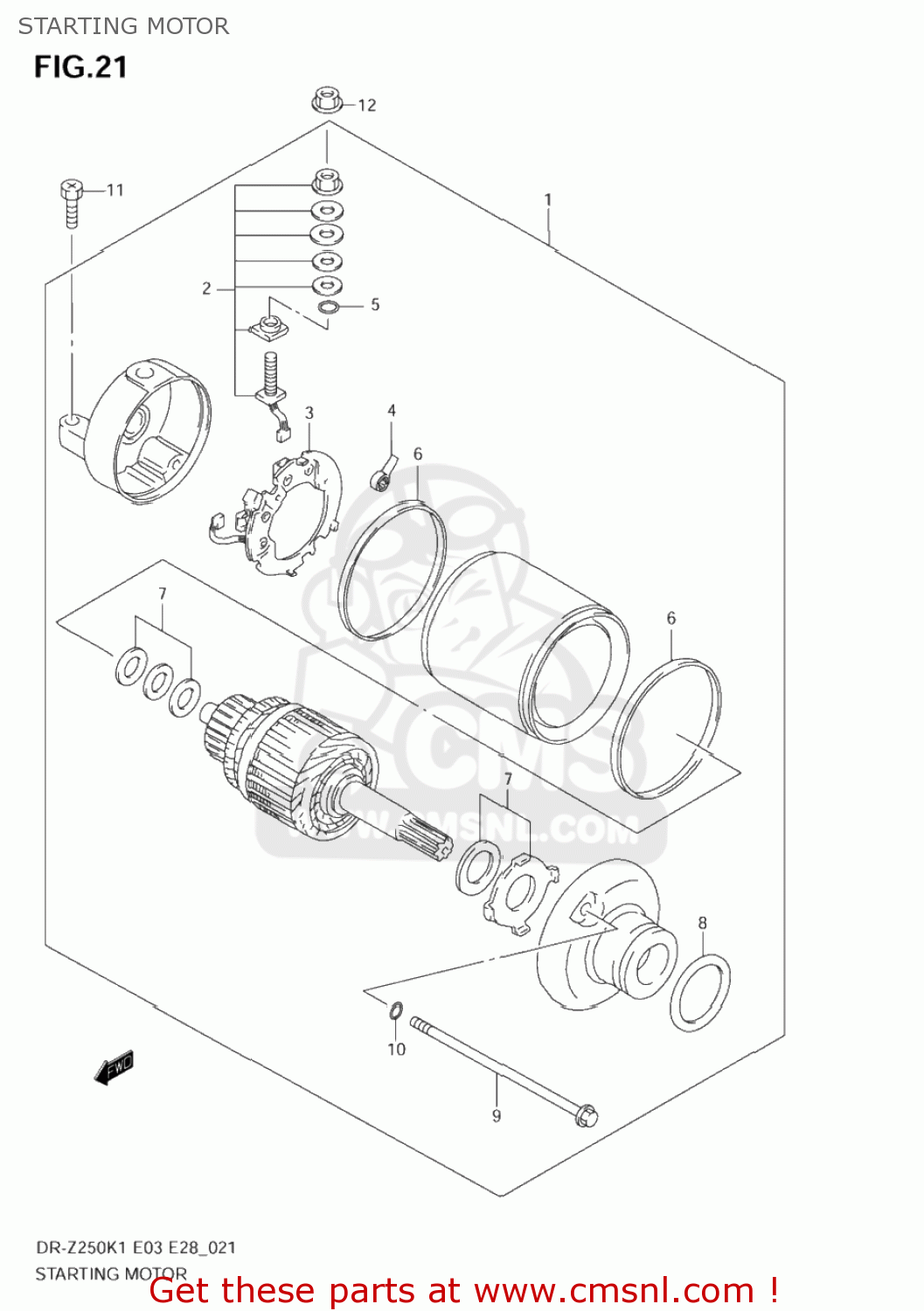

Starting motor diagram DR-Z250 2005 (K5) USA (E03) DRZ250 DR Z250

STARTING MOTOR DR-Z250 2005 (K5) USA (E03) DRZ250 DR Z250

STARTING MOTOR DR-Z250 2005 (K5) USA (E03) DRZ250 DR Z250

prices are in EUR

ref

part #

description

quantity

1

3110013E00
ref: 1

MOTOR ASSY,STARTING

€ 381.50

2

3113013E00
ref: 2

BRUSH TERMINAL SET

€ 42.50

3

3113213E00
ref: 3

BRUSH HOLDER SET

€ 47.50

4

3113531300
ref: 4

SPRING,BRUSH

€ 4.00

5

3114349040
ref: 5

O RING

€ 3.00

6

3126413E00
ref: 6

O RING

€ 6.00

7

3117019B10
ref: 7

SHIM SET,STARTING MOTOR

€ 8.00

8

0928025002
ref: 8

O RING(D:3.1,ID:24.4)

€ 2.00

9

3128013E00
ref: 9

BOLT

€ 16.50

10

3115613E00
ref: 10

O RING

€ 3.00

11

0912806024
ref: 11
09103-06212

SCREW (6X25)

€ 2.50

12

0836135068
ref: 12
08361-3506A

NUT

€ 2.00
