GEAR SHIFTING

DR-Z250 2005 (K5) USA (E03) DRZ250 DR Z250

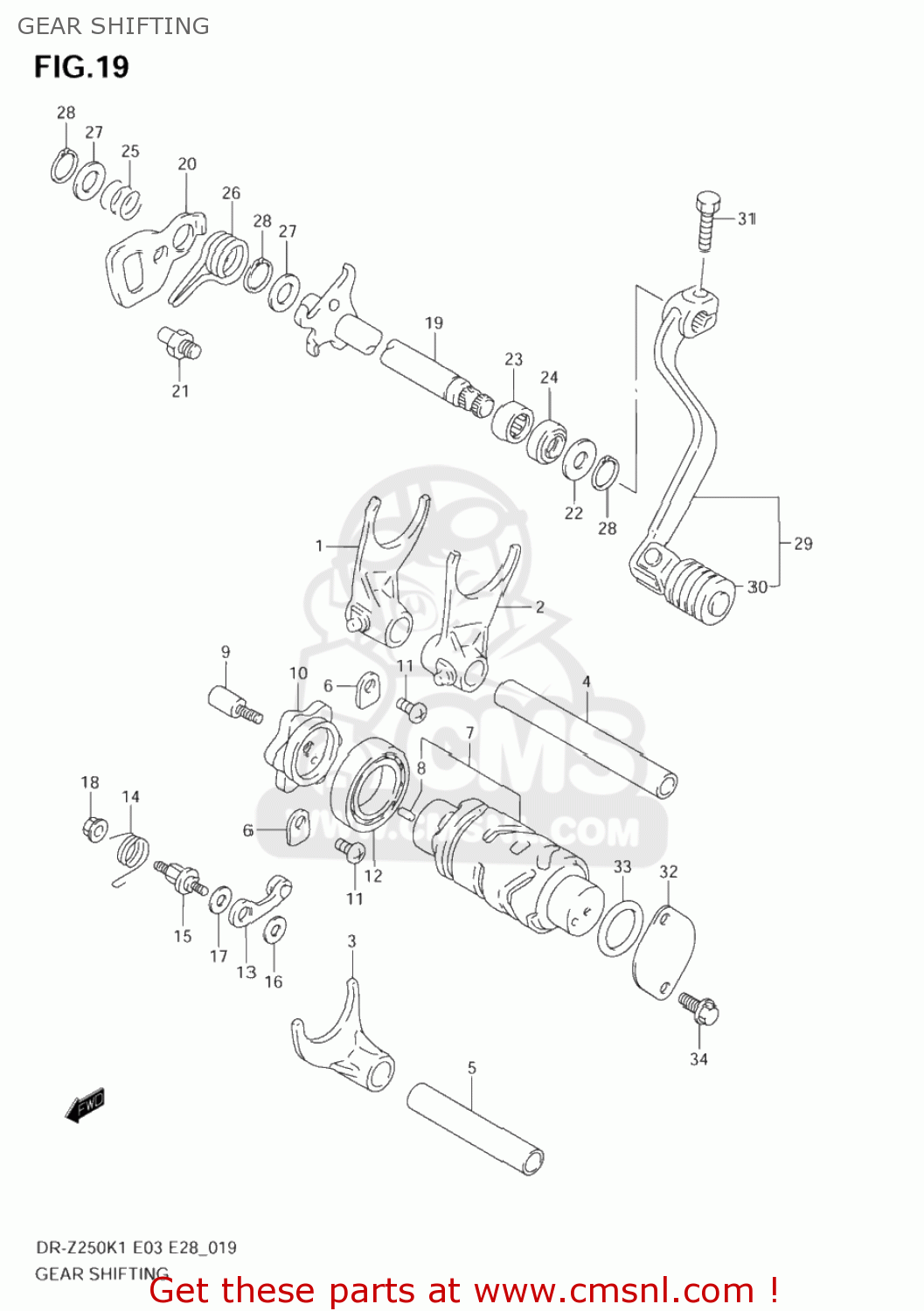

Gear shifting diagram DR-Z250 2005 (K5) USA (E03) DRZ250 DR Z250

GEAR SHIFTING DR-Z250 2005 (K5) USA (E03) DRZ250 DR Z250
GEAR SHIFTING DR-Z250 2005 (K5) USA (E03) DRZ250 DR Z250
GEAR SHIFTING DR-Z250 2005 (K5) USA (E03) DRZ250 DR Z250
prices are in EUR
ref
part #
description
quantity
1
2521114D02
ref: 1
FORK,GEAR SHIFT NO.1
€ 71.50
2
2522114D03
ref: 2
FORK,GEAR SHIFT NO.2
2522114D03
€ 71.50
3
2523114D02
ref: 3
FORK,GEAR SHIFT NO.3
2523114D02
€ 71.50
4
2541127C01
ref: 4
25411-37F20
SHAFT,GEAR SHIFT FORK
€ 11.50
5
2542114D00
ref: 5
SHAFT,GEAR SHIFT FORK(L:70)
2542114D00
€ 18.00
6
2474121A00
ref: 6
RETAINER
2474121A00
€ 2.00
7
2531014D10
ref: 7
CAM,GEAR SHIFT
€ 0.00
8
0422104089
ref: 8
PIN
0422104089
€ 1.50
9
2531212C00
ref: 9
PIN,SHIFT CAM DRIVEN GEAR
2531212C00
€ 6.00
10
2538113E10
ref: 10
PLATE,GEAR SHIFT CAM
2538113E10
€ 40.00
11
0912506110
ref: 11
BOLT(6X12)
0912506110
€ 2.50
12
0811369050
ref: 12
BEARING
0811369050
€ 36.00
13
2535024B00
ref: 13
STOPPER,GEAR SHIFT CAM
2535024B00
€ 8.00
14
2535513E00
ref: 14
25355-13E10
SPRING,SHIFT CAM STOPPER
€ 4.00
15
2535612C00
ref: 15
SUPPORT,CAM STOPPER ARM
2535612C00
€ 9.50
16
0821106141
ref: 16
WASHER
0821106141
€ 2.50
17
0821206203
ref: 17
WASHER
€ 2.50
18
0831610063
ref: 18
08316-1006B
NUT
0831610063
€ 2.50
19
2551013E01
ref: 19
SHAFT,GEAR SHIFT
€ 90.50
20
2551213E11
ref: 20
PLATE,GEAR SHIFT CAM DRIVE
2551213E11
€ 18.00
21
2567101011
ref: 21
STOPPER,GEAR SHIFT ARM
2567101011
€ 3.00
22
0916014033
ref: 22
09160-14062
WASHER
€ 3.00
23
0926314027
ref: 23
BEARING(14X20X12)
0926314027
€ 11.00
24
0928314006
ref: 24
SEAL,OIL(14X22X6)
0928314006
€ 6.50
25
0944017009
ref: 25
SPRING
0944017009
€ 1.50
26
0944420001
ref: 26
SPRING
0944420001
€ 5.00
27
0918114167
ref: 27
SHIM(14X22X1)
0918114167
€ 3.50
28
0833131146
ref: 28
08331-3114A
CIRCLIP
0833131146
€ 2.00
29
2560013E10
ref: 29
LEVER ASSY,GEAR SHIFT
€ 34.50
30
2565203D00
ref: 30
RUBBER,GEAR SHIFT PEDAL
2565203D00
€ 3.50
31
0150006203
ref: 31
01500-0620A
BOLT
0150006203
€ 2.00
32
1145146000
ref: 32
CAP,GEAR SHIFT CAM PIVOT
1145146000
€ 2.50
33
0928026005
ref: 33
O RING(D:2.4,ID:26.2)
0928026005
€ 2.50
34
0154705103
ref: 34
01547-0510B
BOLT
0154705103
€ 2.50
