STAND

DR-Z250 2005 (K5) USA (E03) DRZ250 DR Z250

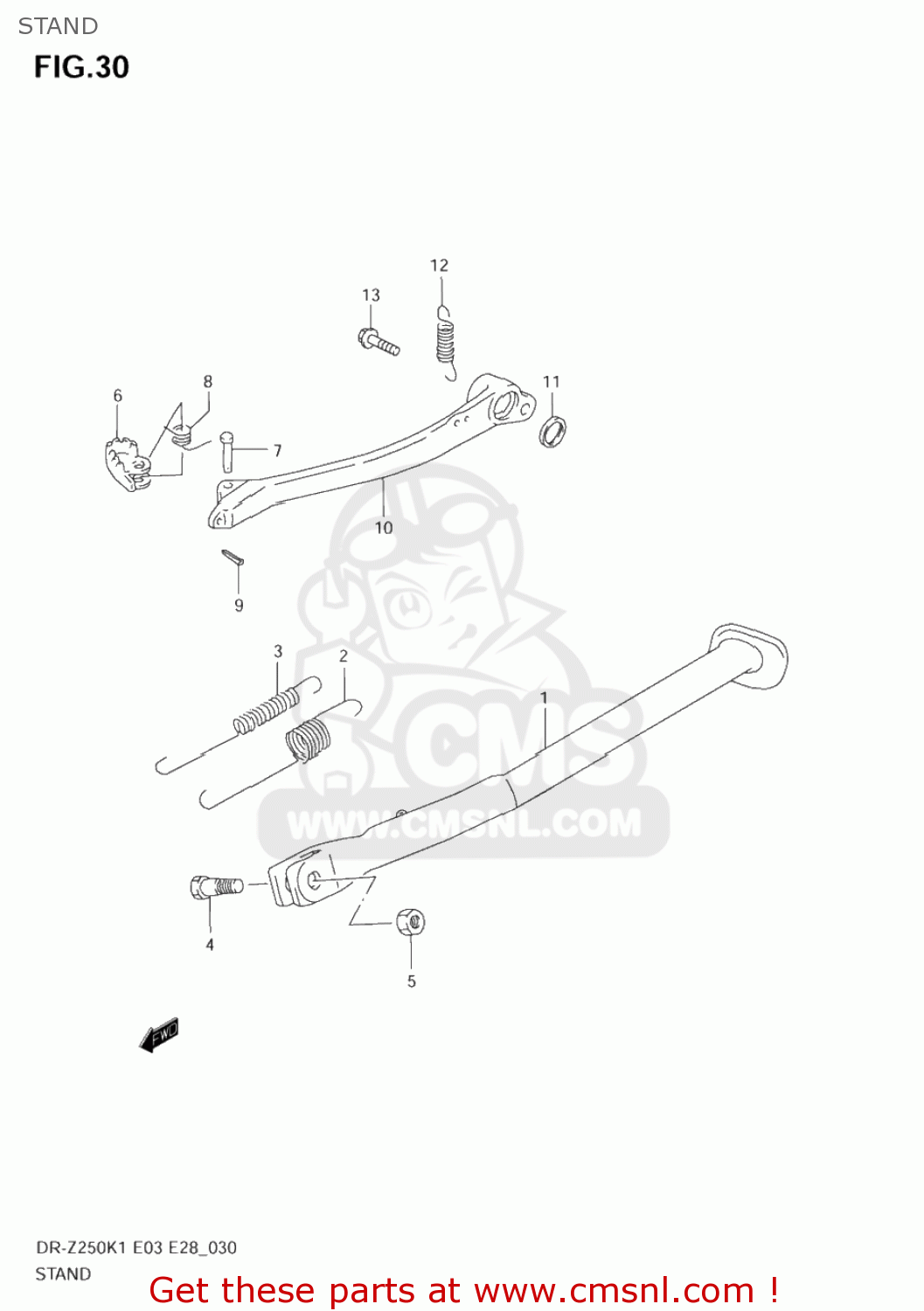

Stand diagram DR-Z250 2005 (K5) USA (E03) DRZ250 DR Z250

STAND DR-Z250 2005 (K5) USA (E03) DRZ250 DR Z250

STAND DR-Z250 2005 (K5) USA (E03) DRZ250 DR Z250

prices are in EUR

ref

part #

description

quantity

1

4231013E20
ref: 1
42310-13E00

STAND, PROP

€ 0.00

2

0944319010
ref: 2

SPRING

€ 6.00

3

0944312036
ref: 3

SPRING

€ 7.50

4

0911110047
ref: 4

BOLT(10X30)

€ 4.50

5

0915910097
ref: 5

NUT

€ 5.00

6

4311043D00
ref: 6

PEDAL,BRAKE

€ 6.00

7

0920006062
ref: 7

PIN(6X23.5)

€ 2.50

8

0944411006
ref: 8

SPRING

€ 3.50

9

0411120158
ref: 9
04111-2015A

PIN

€ 1.50

10

4311213E02
ref: 10

ARM,BRAKE PEDAL

€ 76.00

11

0928415006
ref: 11

SEAL,OIL(15X21X3)

€ 3.50

12

0944311030
ref: 12

SPRING

€ 4.00

13

0910608098
ref: 13

BOLT(8X14)

€ 6.50
