SEAT (MODEL K5)

DR-Z250 2005 (K5) USA (E03) DRZ250 DR Z250

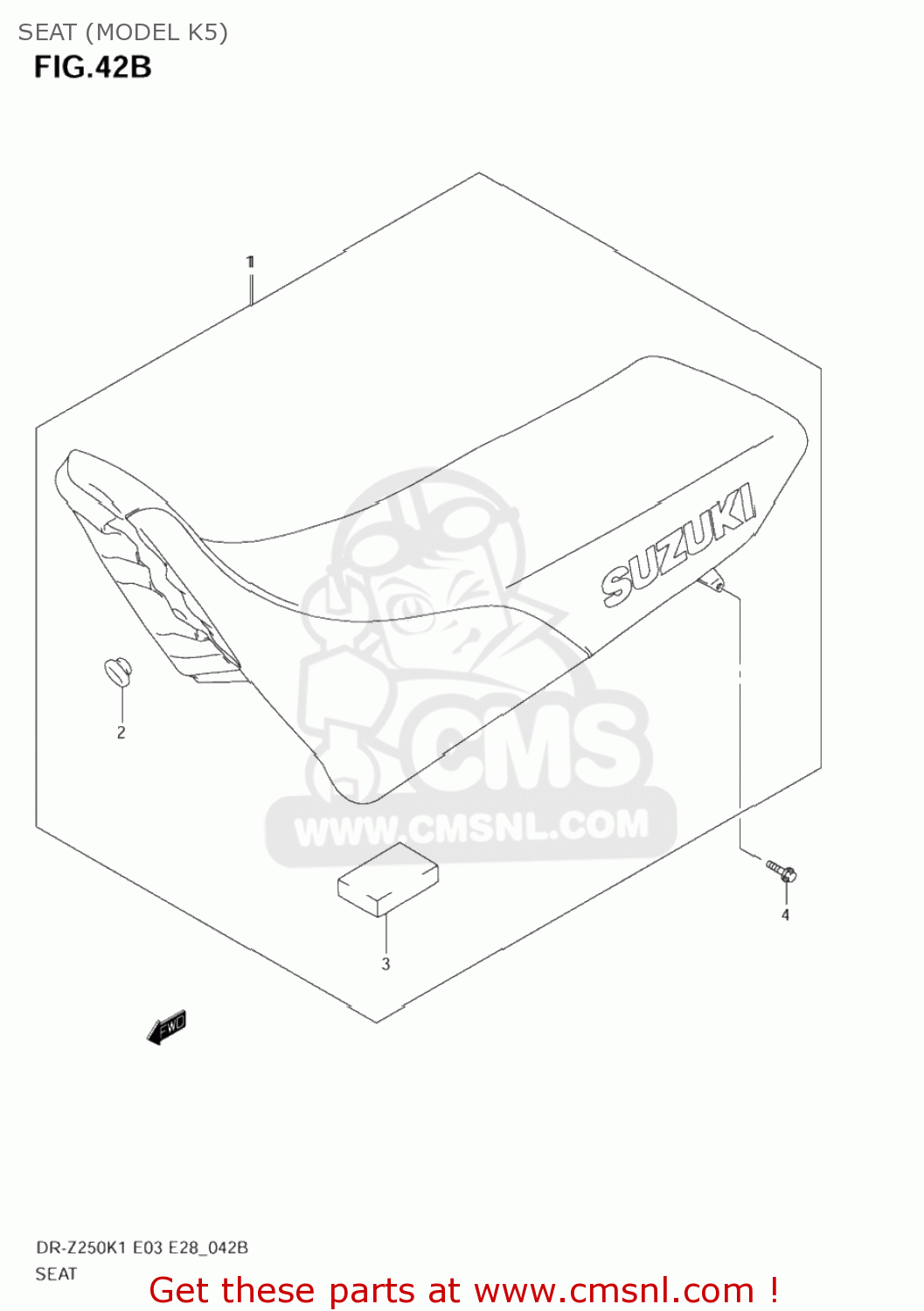

Seat (model k5) diagram DR-Z250 2005 (K5) USA (E03) DRZ250 DR Z250

SEAT (MODEL K5) DR-Z250 2005 (K5) USA (E03) DRZ250 DR Z250

SEAT (MODEL K5) DR-Z250 2005 (K5) USA (E03) DRZ250 DR Z250

prices are in EUR

ref

part #

description

quantity

1

4510013EH0BAE
ref: 1

SEAT ASSY

€ 266.00

2

4514933D00
ref: 2

CUSHION

€ 0.00

3

0932910001
ref: 3

CUSHION

€ 2.50

4

0155006123
ref: 4
01550-0612A

BOLT

€ 2.50
