SEAT (MODEL K2/K3/K4)

DR-Z250 2005 (K5) USA (E03) DRZ250 DR Z250

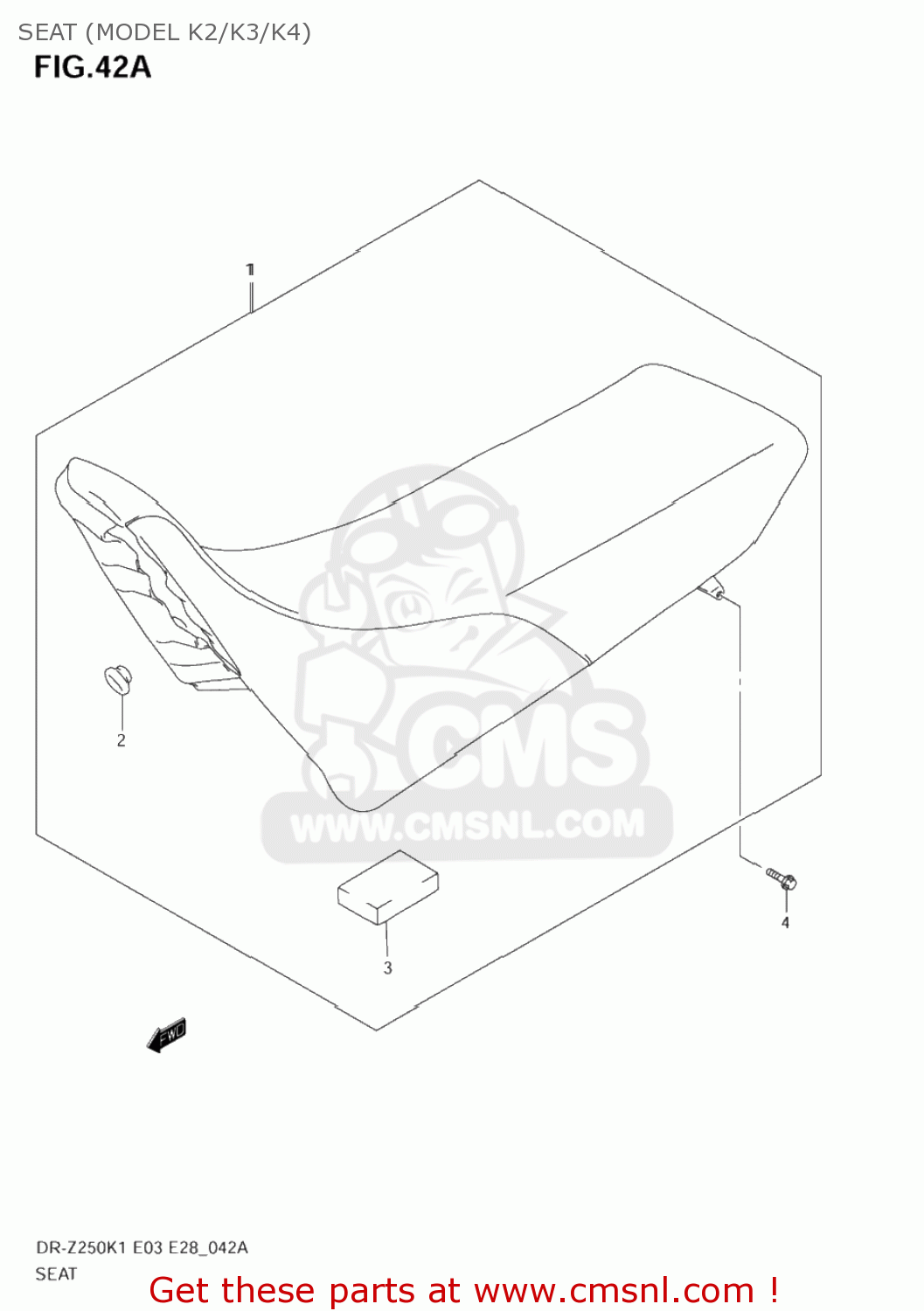

Seat (model k2/k3/k4) diagram DR-Z250 2005 (K5) USA (E03) DRZ250 DR Z250

SEAT (MODEL K2/K3/K4) DR-Z250 2005 (K5) USA (E03) DRZ250 DR Z250

SEAT (MODEL K2/K3/K4) DR-Z250 2005 (K5) USA (E03) DRZ250 DR Z250

prices are in EUR

ref

part #

description

quantity

1-1

4510013ED06BY
ref: 1-1

SEAT ASSY(BLACK)

€ 0.00

1-2

4510013EE06BY
ref: 1-2

SEAT ASSY

€ 0.00

2

4514933D00
ref: 2

CUSHION

€ 0.00

3

0932910001
ref: 3

CUSHION

€ 2.50

4

0155006123
ref: 4
01550-0612A

BOLT

€ 2.50
