HANDLEBAR

DR-Z250 2005 (K5) USA (E03) DRZ250 DR Z250

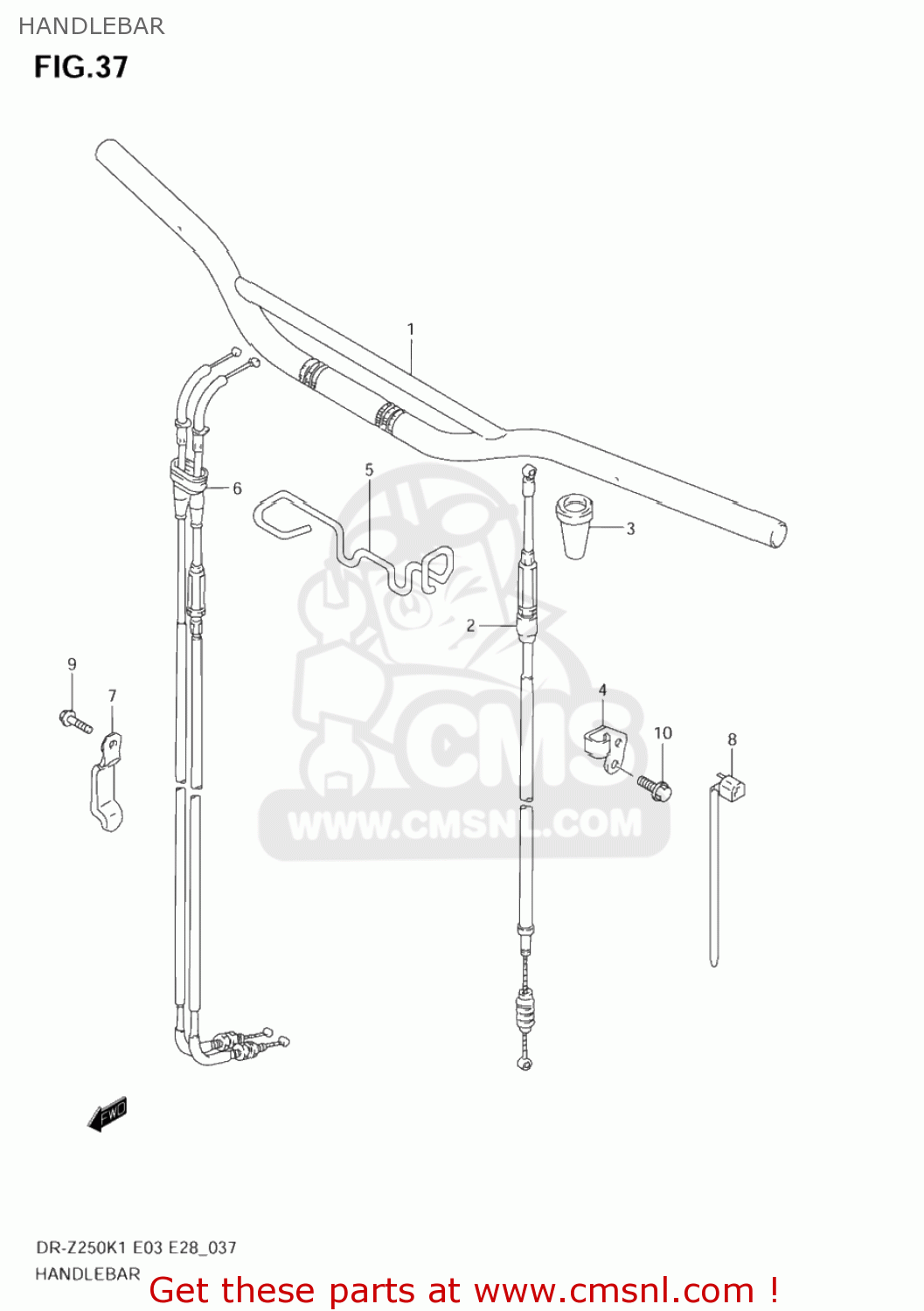

Handlebar diagram DR-Z250 2005 (K5) USA (E03) DRZ250 DR Z250

HANDLEBAR DR-Z250 2005 (K5) USA (E03) DRZ250 DR Z250

HANDLEBAR DR-Z250 2005 (K5) USA (E03) DRZ250 DR Z250

prices are in EUR

ref

part #

description

quantity

1

5611014D5013L
ref: 1

HANDLEBAR(SILVER)

€ 129.50

2

5820013E10
ref: 2

CABLE ASSY,CLUTCH

€ 34.50

3

5827331000
ref: 3

BOOT,CLUTCH CABLE

€ 2.50

4

5863413E00
ref: 4

STOPPER,CLUTCH CABLE

€ 0.00

5

5862113E10
ref: 5

GUIDE,CABLE

€ 0.00

6-1

5830013E30
ref: 6-1

CABLE ASSY,THROTTLE

€ 89.50

6-2

5830013E40
ref: 6-2

CABLE ASSY,THROTTLE

€ 0.00

7

0940309307
ref: 7

CLAMP

€ 2.50

8

0940718402
ref: 8

CLAMP(L:165)

€ 2.50

9

0155006103
ref: 9
01550-0610A

BOLT

€ 2.50

10

0154706123
ref: 10
01547-0612B

BOLT

€ 2.00
