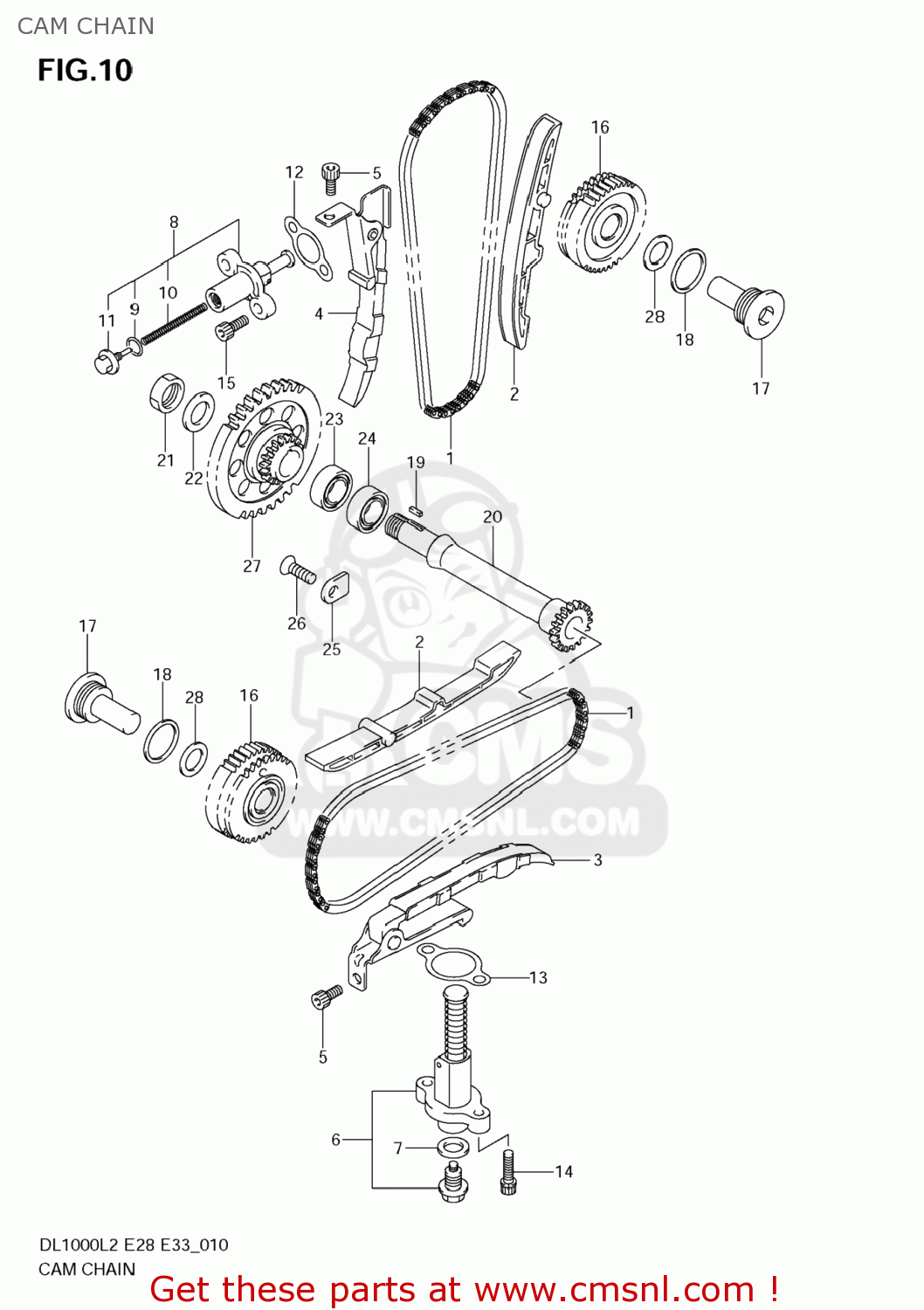

CAM CHAIN

ref

part #

description

quantity

1

1276023F00
ref: 1

CHAIN,CAMSHAFT DRIVE

€ 67.50

2

1277106G00
ref: 2

GUIDE,CAM CHAIN

€ 15.00

3

1281006G00
ref: 3

TENSIONER,CAM CHAIN FR

€ 41.00

4

1281506G00
ref: 4

TENSIONER,CAM CHAIN RR

€ 41.00

5

071200612A
ref: 5

BOLT

€ 3.50

6

1283205A10
ref: 6

ADJUSTER ASSY,TENSIONER FR

€ 86.00

7

0916812018
ref: 7

GASKET(12X21X2) (NAS)

€ 2.00

8

1283030A01
ref: 8

ADJUSTER ASSY,TENSIONER

€ 54.50

9

1283202A00
ref: 9

O RING

€ 2.00

10

1283330A01
ref: 10

SPRING

€ 1.50

11

1283402A00
ref: 11

PLUG,ADJUSTER

€ 8.00

12

1283719B10
ref: 12

GASKET,TENSIONER ADJUSTER (NAS)

€ 3.00

13

1283724A10
ref: 13

GASKET,TENSIONER ADJUSTER (NAS)

€ 3.50

14

071300625A
ref: 14

BOLT

€ 2.50

15

071300620A
ref: 15

BOLT

€ 3.00

16

1275006G00
ref: 16

GEAR,CAM CHAIN IDLER NO.2

€ 452.50

17

1275502F01
ref: 17

SHAFT,IDLER NO.2

€ 34.00

18

0916826001
ref: 18

GASKET(26.5X30.5X1) (NAS)

€ 4.50

19

0942104004
ref: 19

KEY

€ 3.50

20

1271606G00
ref: 20

SHAFT,IDLER

€ 99.00

21

0914016001
ref: 21

NUT

€ 4.50

22

0918116212
ref: 22

SHIM(16X26X1.5)

€ 2.00

23

0811263030
ref: 23

BEARING

€ 17.50

24

0926225006
ref: 24

BEARING(25X47X8)

€ 24.00

25

2474120A00
ref: 25

RETAINER,COUNTER BEARING,R

€ 2.00

26

0912606011
ref: 26

SCREW(6X12)

€ 2.00

27

1273106G01
ref: 27

SPROCKET,IDLER NO.1

€ 77.50

28-1

0918115164
ref: 28-1

SHIM(15X24X0.9)

€ 3.00

28-2

0918115166
ref: 28-2

SHIM(15X24X1)

€ 4.00

28-3

0918115172
ref: 28-3

SHIM(15X24X1.1)

€ 3.00

28-4

0918115176
ref: 28-4

SHIM(15X24X1.2)

€ 3.00

28-5

0918115181
ref: 28-5

SHIM(15X24X1.3)

€ 3.00

28-6

0918115182
ref: 28-6

SHIM(15X24X1.4)

€ 3.00
