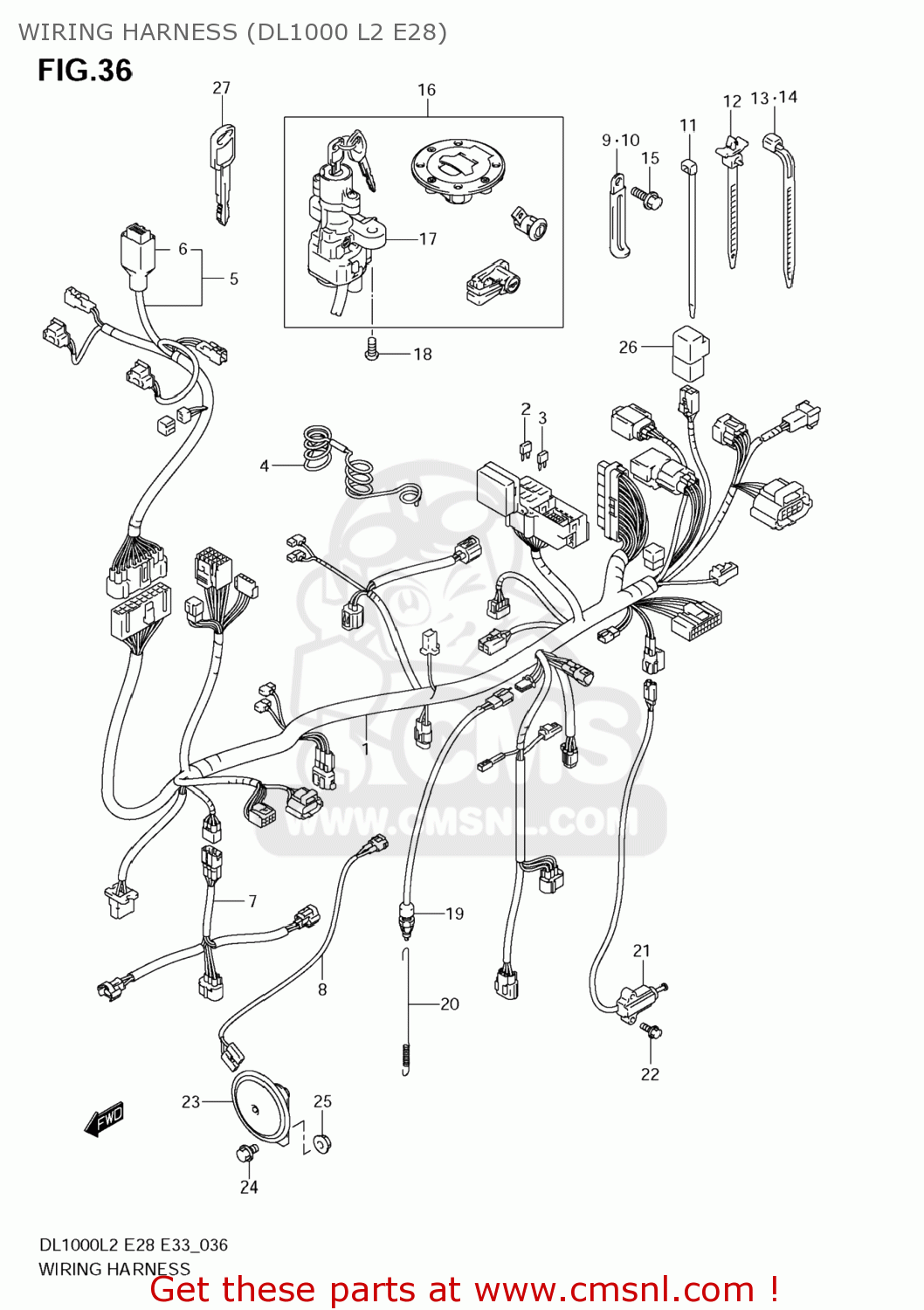

WIRING HARNESS (DL1000 L2 E28)

ref

part #

description

quantity

1

3661006G70
ref: 1

HARNESS,WIRING NO.1

€ 717.00

2

0948110501
ref: 2

FUSE(10A)

€ 3.00

3

0948115501
ref: 3

FUSE(15A)

€ 1.00

4

3661906G01
ref: 4

GUIDE,WIRING HARNESS

€ 17.50

5

3662027G30
ref: 5

HARNESS,WIRING NO.2

€ 135.50

6

3661818G10
ref: 6

COVER,CONNECTOR

€ 8.00

7

3685906G00
ref: 7

WIRE,INJECTOR LEAD

€ 40.00

8

3685206G00
ref: 8

WIRE,HORN LEAD

€ 16.00

9

0940406429
ref: 9

CLAMP(L:45)

€ 2.50

10

0940406433
ref: 10

CLAMP(L:80)

€ 3.00

11

0940714407
ref: 11

CLAMP(L:145)

€ 4.00

12

0940717402
ref: 12

CLAMP

€ 5.00

13

0940711401
ref: 13

CLAMP(L:95)

€ 2.50

14

0940714403
ref: 14

CLAMP(L:125)

€ 2.50

15

015470610B
ref: 15

BOLT

€ 3.00

16

3700007880
ref: 16

LOCK SET

€ 0.00

17

3710006G30
ref: 17

LOCK ASSY,STEERING

€ 136.00

18

0913908016
ref: 18

BOLT(8X20)

€ 3.50

19

3774045D00
ref: 19
37740-31D00

SWITCH ASSY,STOP LAMP

€ 20.50

20

4325906G00
ref: 20

SPRING,STOP LAMP SWITCH

€ 12.50

21

3784006G00
ref: 21

SWITCH ASSY,SIDE STAND

€ 67.00

22

015500616B
ref: 22

BOLT

€ 2.50

23

3850041F00
ref: 23

HORN ASSY

€ 83.50

24

015500812B
ref: 24

BOLT

€ 3.50

25

083161008B
ref: 25

NUT

€ 3.00

26

3874024X50
ref: 26

RELAY ASSY

€ 37.50

27

3714633E00
ref: 27

KEY,BLANK

€ 13.00
