FUEL PUMP

DL1000 VSTROM 2012 (L2) USA (E03)

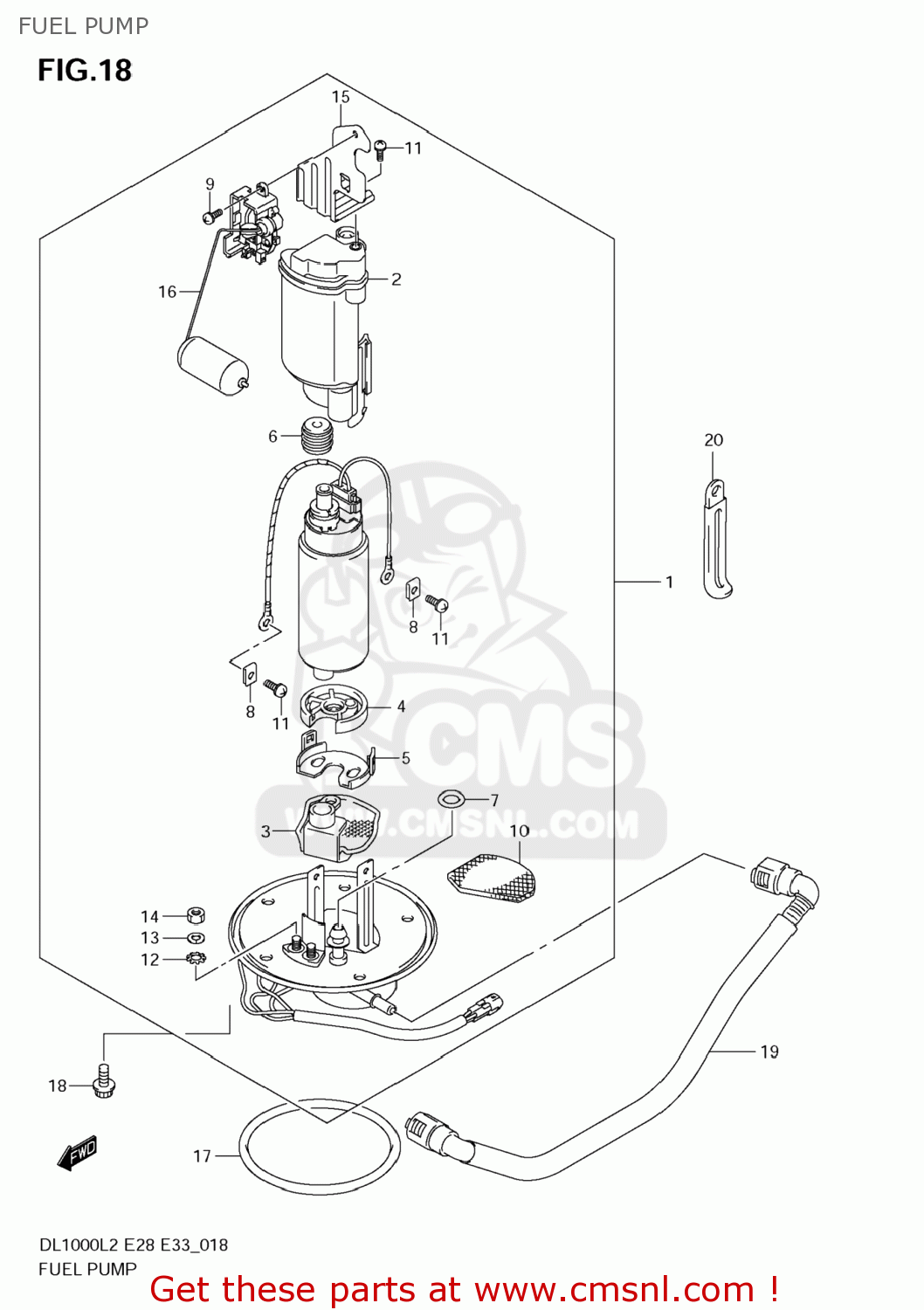

Fuel pump diagram DL1000 VSTROM 2012 (L2) USA (E03)

FUEL PUMP DL1000 VSTROM 2012 (L2) USA (E03)

FUEL PUMP DL1000 VSTROM 2012 (L2) USA (E03)

prices are in EUR

ref

part #

description

quantity

1

1510006G10
ref: 1

PUMP ASSY,FUEL

€ 1,174.50

2

1541024FB0
ref: 2

FILTER,FUEL

€ 320.00

3

1542035F01
ref: 3

STRAINER,FUEL PUMP

€ 55.00

4

1511135F00
ref: 4

CUSHION

€ 8.50

5

1511242F00
ref: 5

HOLDER,FUEL PUMP

€ 18.50

6

1511435F00
ref: 6

BUSH,FUEL PUMP

€ 17.00

7

1511335F00
ref: 7

O RING

€ 7.50

8

1511535F00
ref: 8

NUT

€ 10.50

9

1511606G10
ref: 9

SCREW

€ 6.50

10

1511706G10
ref: 10

SHEET

€ 14.00

11

1511635F10
ref: 11

SCREW

€ 6.00

12

1517135F00
ref: 12

WASHER

€ 6.00

13

1517235F00
ref: 13

WASHER,SPRING

€ 4.00

14

1517335F00
ref: 14

NUT

€ 4.50

15

1518106G00
ref: 15

BRACKET,FUEL GAUGE

€ 39.50

16

3481006G10
ref: 16

GAUGE ASSY,FUEL LEVER

€ 207.00

17

1520135F00
ref: 17

O RING,FUEL PUMP

€ 26.00

18

071200612A
ref: 18

BOLT

€ 3.50

19

1581006G01
ref: 19

HOSE,FUEL

€ 75.50

20

0940406429
ref: 20

CLAMP(L:45)

€ 2.50
