FUEL TANK (DL1000 L2 E33)

DL1000 VSTROM 2012 (L2) USA (E03)

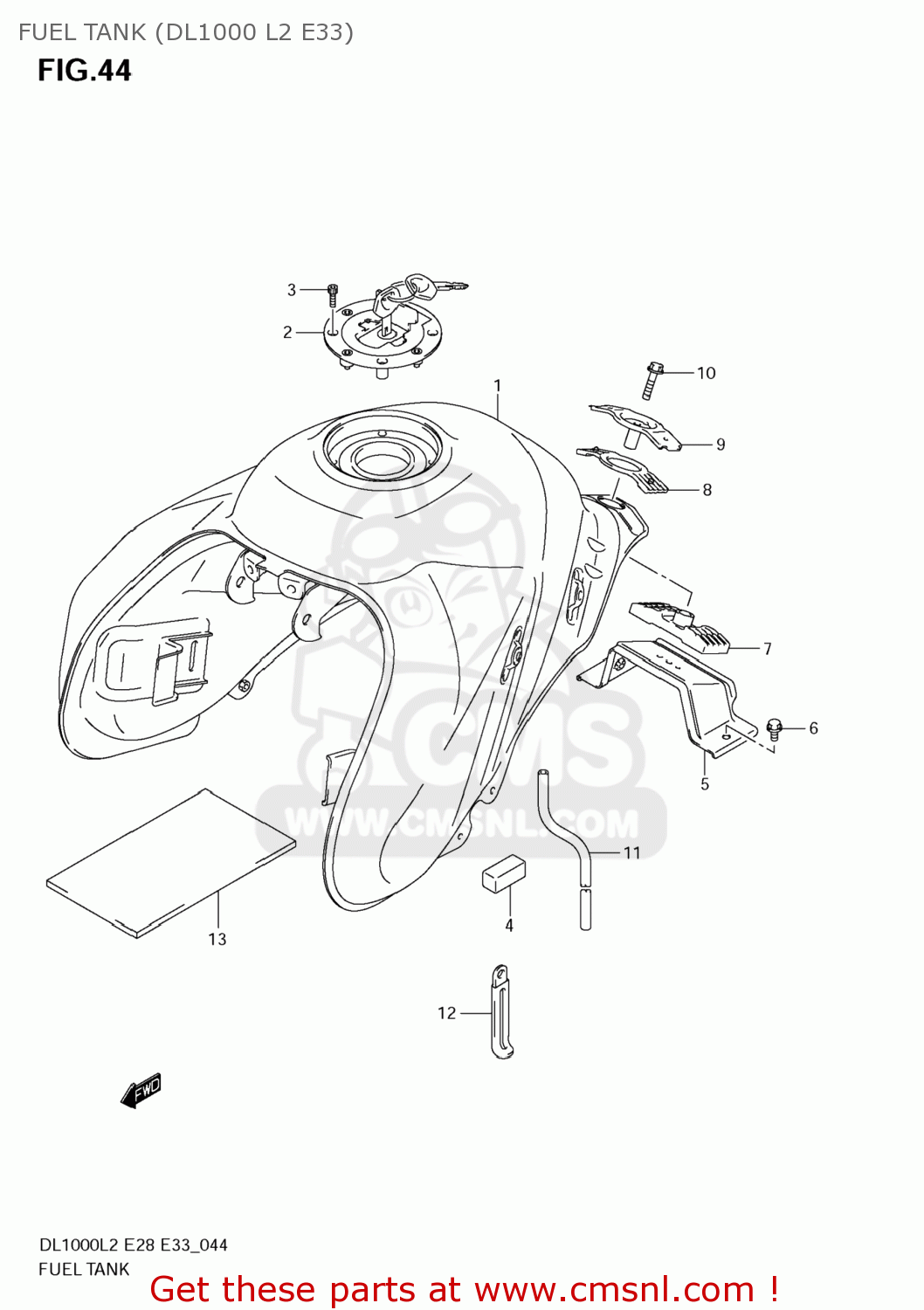

Fuel tank (dl1000 l2 e33) diagram DL1000 VSTROM 2012 (L2) USA (E03)

prices are in EUR

ref

part #

description

quantity

1-1

4410006G50YAY
ref: 1-1
44100-06G51-YAY

TANK ASSY,FUEL(BLACK)

€ 885.00

1-2

4410006G50YVZ
ref: 1-2

TANK ASSY,FUEL(RED)

€ 885.00

4420033830
ref: 2

CAP SET,FUEL TANK

€ 0.00

0910605017
ref: 3

BOLT(5X20)

€ 3.00

4454106G00
ref: 4

CUSHION,FUEL TANK SIDE

€ 13.00

4455006G01
ref: 5

BRACKET,FUEL T

€ 28.00

015500816A
ref: 6

BOLT

€ 2.50

4454506G00
ref: 7

CUSHION,FUEL TANK RR LWR

€ 11.50

4454206G00
ref: 8

CUSHION,FUEL TANK RR UPR

€ 10.50

4453006G00
ref: 9

BRACKET,FUEL TANK RR UP

€ 12.00

015500835B
ref: 10

BOLT

€ 3.50

4442306G00
ref: 11

HOSE,FUEL TANK WATER DRAIN

€ 18.50

0940406429
ref: 12

CLAMP(L:45)

€ 2.50

4419406G00
ref: 13

SHIELD,FUEL TANK CTR

€ 28.50
