STARTING MOTOR

DL1000 VSTROM 2012 (L2) USA (E03)

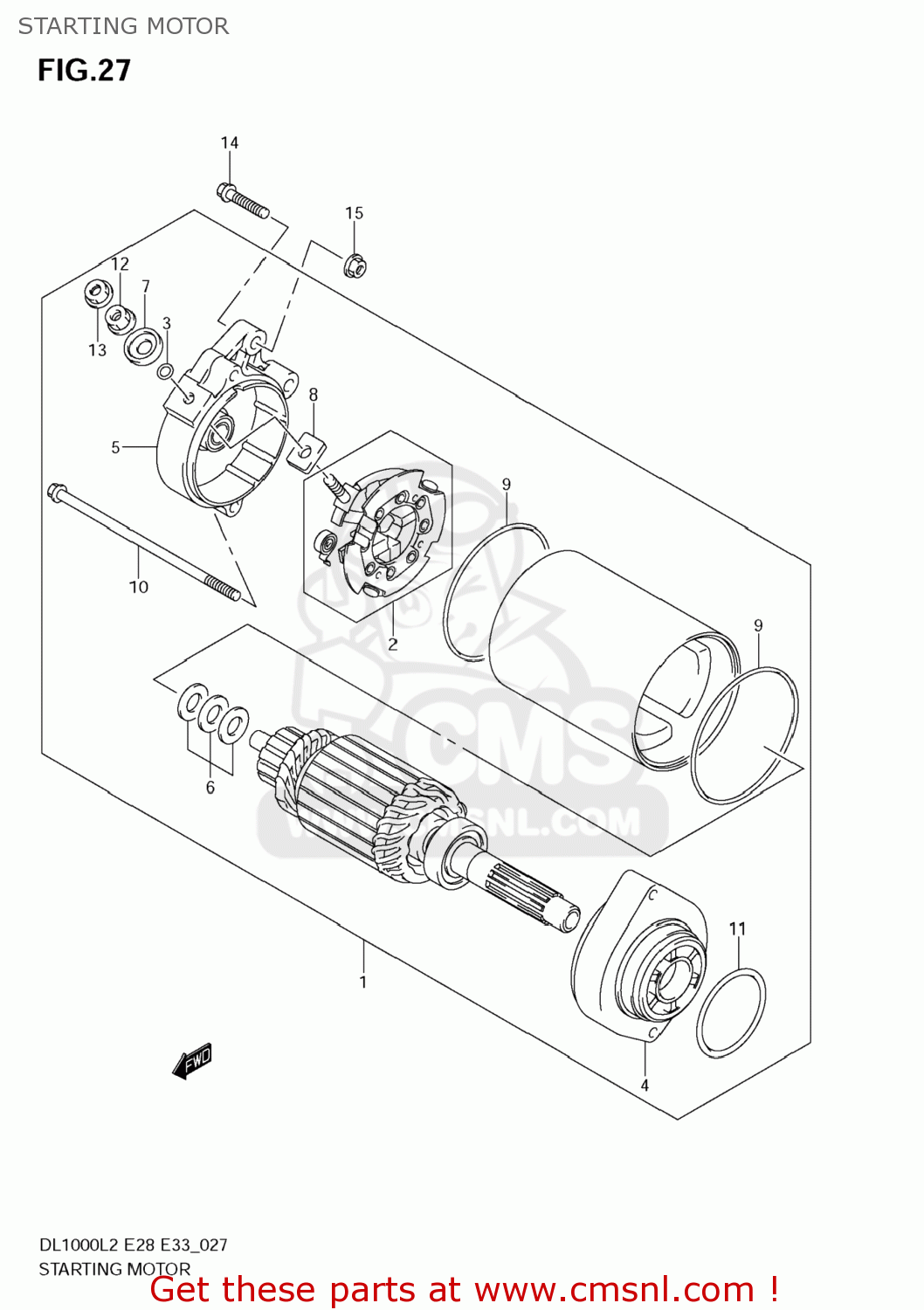

Starting motor diagram DL1000 VSTROM 2012 (L2) USA (E03)

STARTING MOTOR DL1000 VSTROM 2012 (L2) USA (E03)

STARTING MOTOR DL1000 VSTROM 2012 (L2) USA (E03)

prices are in EUR

ref

part #

description

quantity

1

3110006G01
ref: 1

MOTOR ASSY,STARTING

€ 763.00

2

3113245C00
ref: 2

HOLDER SET,BRUSH

€ 46.00

3

3114338300
ref: 3

O RING

€ 3.50

4

3115044B10
ref: 4

HOUSING ASSY

€ 98.50

5

3117002F10
ref: 5

FRAME ASSY

€ 91.50

6

3117043400
ref: 6

SHIM SET,STARTING MOTOR

€ 3.50

7

3117238300
ref: 7

BUSHING

€ 4.00

8

3117388C00
ref: 8

BUSHING

€ 6.00

9

3126444110
ref: 9

O RING

€ 8.00

10

3128124B10
ref: 10

BOLT

€ 5.00

11

3115648B00
ref: 11

O RING

€ 8.50

12

0831000067
ref: 12

NUT

€ 2.50

13

083613506A
ref: 13

NUT

€ 2.00

14

0910306212
ref: 14

BOLT(6X25)

€ 2.50

15

083613506A
ref: 15

NUT

€ 2.00
