REAR CALIPER

DL1000 VSTROM 2012 (L2) USA (E03)

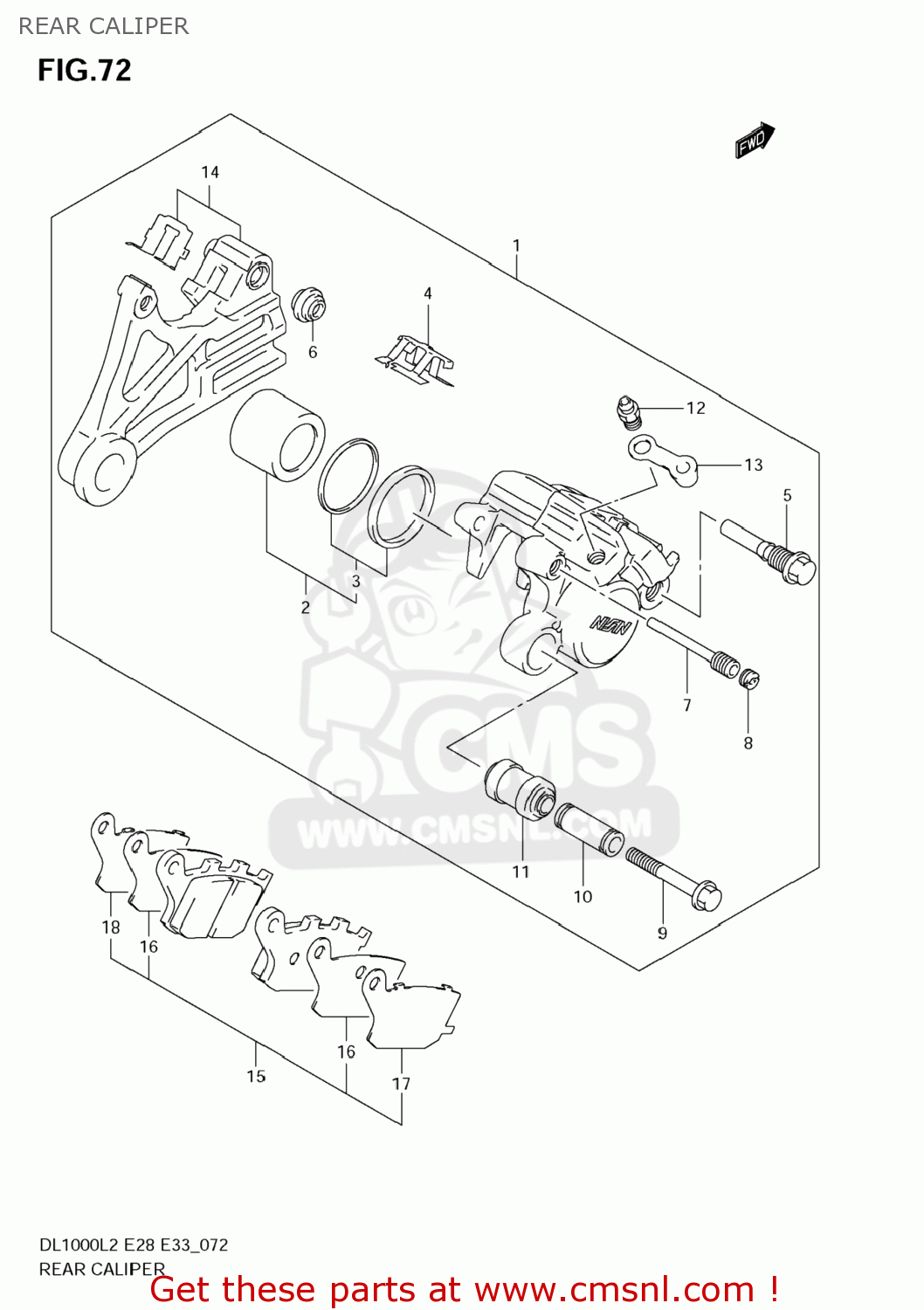

Rear caliper diagram DL1000 VSTROM 2012 (L2) USA (E03)

REAR CALIPER DL1000 VSTROM 2012 (L2) USA (E03)

REAR CALIPER DL1000 VSTROM 2012 (L2) USA (E03)

prices are in EUR

ref

part #

description

quantity

1

6910006G00999
ref: 1

CALIPER ASSY,RR

€ 597.00

2

6910004810
ref: 2

PISTON SET

€ 65.50

3

6910004820
ref: 3

SEAL SET,PISTON

€ 12.50

4

6911506G00
ref: 4

SPRING,PAD

€ 7.50

5

6910504F00
ref: 5

BOLT

€ 11.50

6

5930314500
ref: 6

BOOT

€ 5.50

7

6914140F00
ref: 7

PIN,PAD

€ 17.50

8

5914621E10
ref: 8

PLUG,PIN

€ 6.50

9

6918204F00
ref: 9

BOLT

€ 7.50

10

6918504F00
ref: 10

SLEEVE

€ 12.50

11

6918604F00
ref: 11

BOOT,SLEEVE

€ 11.00

12

5912101A00
ref: 12

BLEEDER

€ 8.50

13

5912201A00
ref: 13

CAP,BLEEDER

€ 4.50

14

6915006G00
ref: 14

BRACKET

€ 143.50

15

6910006830
ref: 15

PAD & RETAINER SET

€ 54.00

16

6913206G00
ref: 16

INSULATOR

€ 13.50

17

6913306G00
ref: 17

RETAINER

€ 10.00

18

6913406G00
ref: 18

RETAINER

€ 10.00
