OIL COOLER
DL1000 VSTROM 2012 (L2) USA (E03)

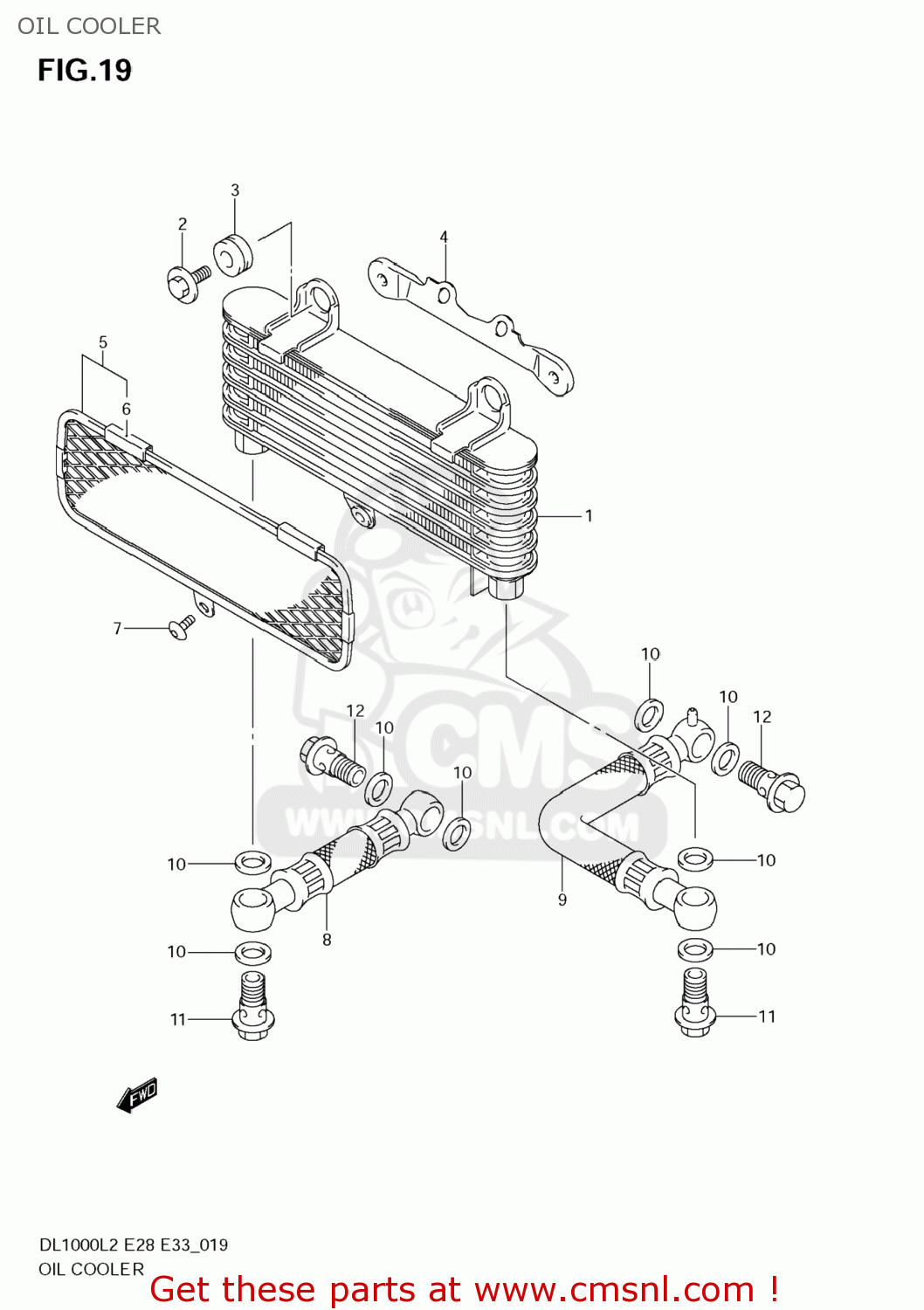

Oil cooler diagram DL1000 VSTROM 2012 (L2) USA (E03)
OIL COOLER DL1000 VSTROM 2012 (L2) USA (E03)
×
prices are in EUR
ref
part #
description
quantity
1
1660016G00
ref: 1
COOLER ASSY,OIL
€ 1,022.00
2
0911606167
ref: 2
BOLT(6X20)
€ 2.00
3
0932009009
ref: 3
CUSHION
€ 5.00
4
1662002F00
ref: 4
BRACKET,OIL COOLER
€ 10.50
5
1665016G00
ref: 5
GUARD,OIL COOLER
€ 44.50
6
1776509F00
ref: 6
PROTECTOR,CTR
€ 2.50
7
021420510B
ref: 7
SCREW
€ 2.50
8
1646016G00
ref: 8
HOSE,OIL COOLER,R
€ 145.50
9
1647016G00
ref: 9
HOSE,OIL COOLER,L
€ 140.50
10
0916814015
ref: 10
GASKET(14X20X1.5) (NAS)
€ 1.50
11
0936012012
ref: 11
09360-12012-A05
BOLT UNION
€ 8.00
12
0936014015
ref: 12
BOLT UNION
€ 10.00
