SIDE COWLING

DL1000 VSTROM 2012 (L2) USA (E03)

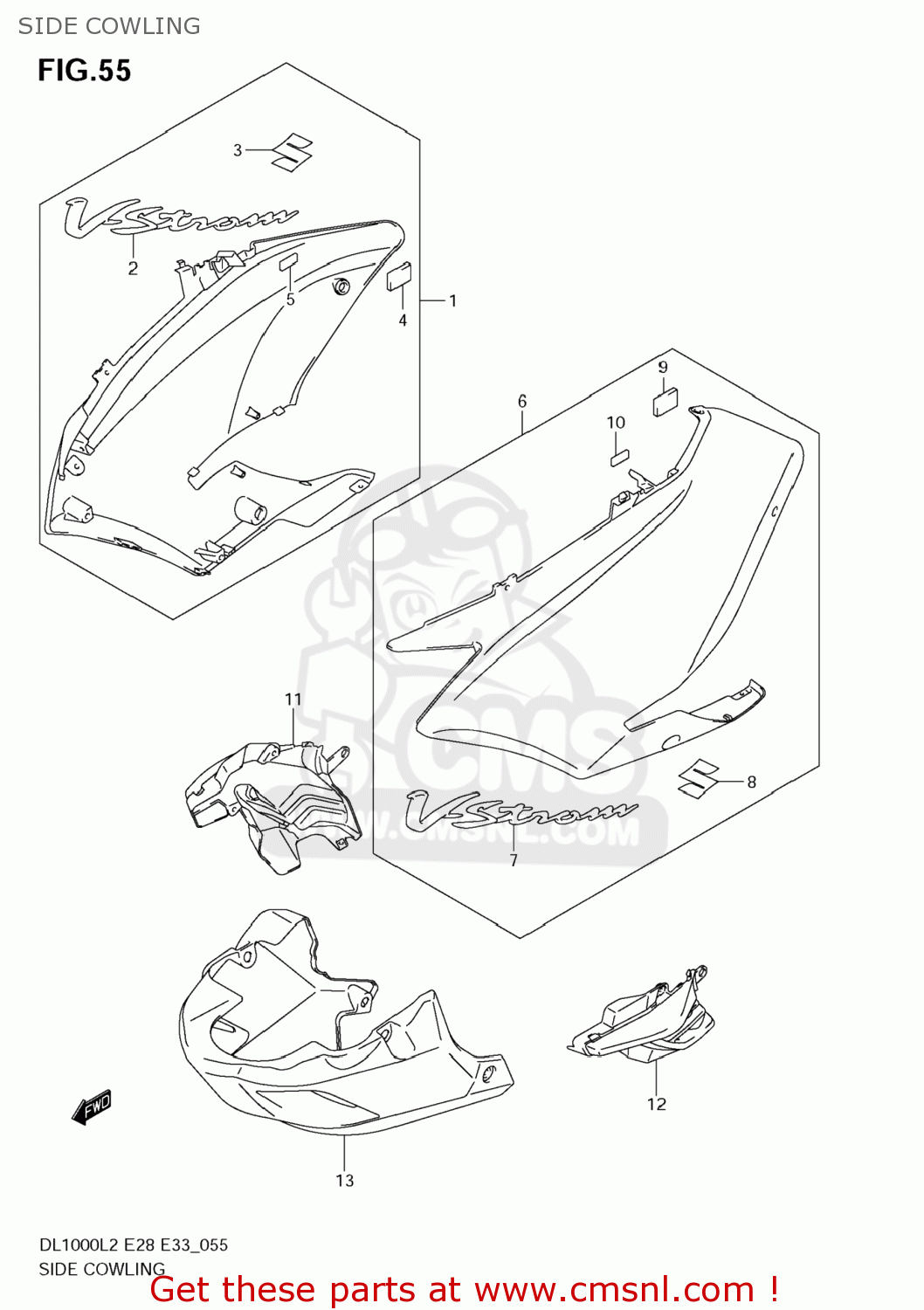

Side cowling diagram DL1000 VSTROM 2012 (L2) USA (E03)

prices are in EUR

ref

part #

description

quantity

1-1

9440206G60YAY
ref: 1-1

COWLING ASSY,SIDE,R

€ 1,088.50

1-2

9440206G60YVZ
ref: 1-2

COWLING ASSY,SIDE,R

€ 235.00

6868106G20
ref: 2

EMBLEM,COWLING SIDE

€ 179.00

6811118G20
ref: 3

EMBLEM,S

€ 22.50

9442206G00
ref: 4

CUSHION

€ 2.50

9444306G00
ref: 5

TAPE(6X25X0.13)

€ 2.00

6-1

9440306G60YAY
ref: 6-1

COWLING ASSY,SIDE,L

€ 1,088.50

6-2

9440306G60YVZ
ref: 6-2

COWLING ASSY,SIDE,L

€ 235.00

6868106G20
ref: 7

EMBLEM,COWLING SIDE

€ 179.00

6811118G20
ref: 8

EMBLEM,S

€ 22.50

9442206G00
ref: 9

CUSHION

€ 2.50

9444306G00
ref: 10

TAPE(6X25X0.13)

€ 2.00

9444006G00291
ref: 11

COVER,SIDE COWL,R(BLACK)

€ 92.50

9445006G00291
ref: 12

COVER,SIDE COWL,L(BLACK)

€ 92.50

9447106GA0291
ref: 13

COWLING,UNDER

€ 200.00
