CAM SHAFT/VALVE
DL1000 VSTROM 2012 (L2) USA (E03)

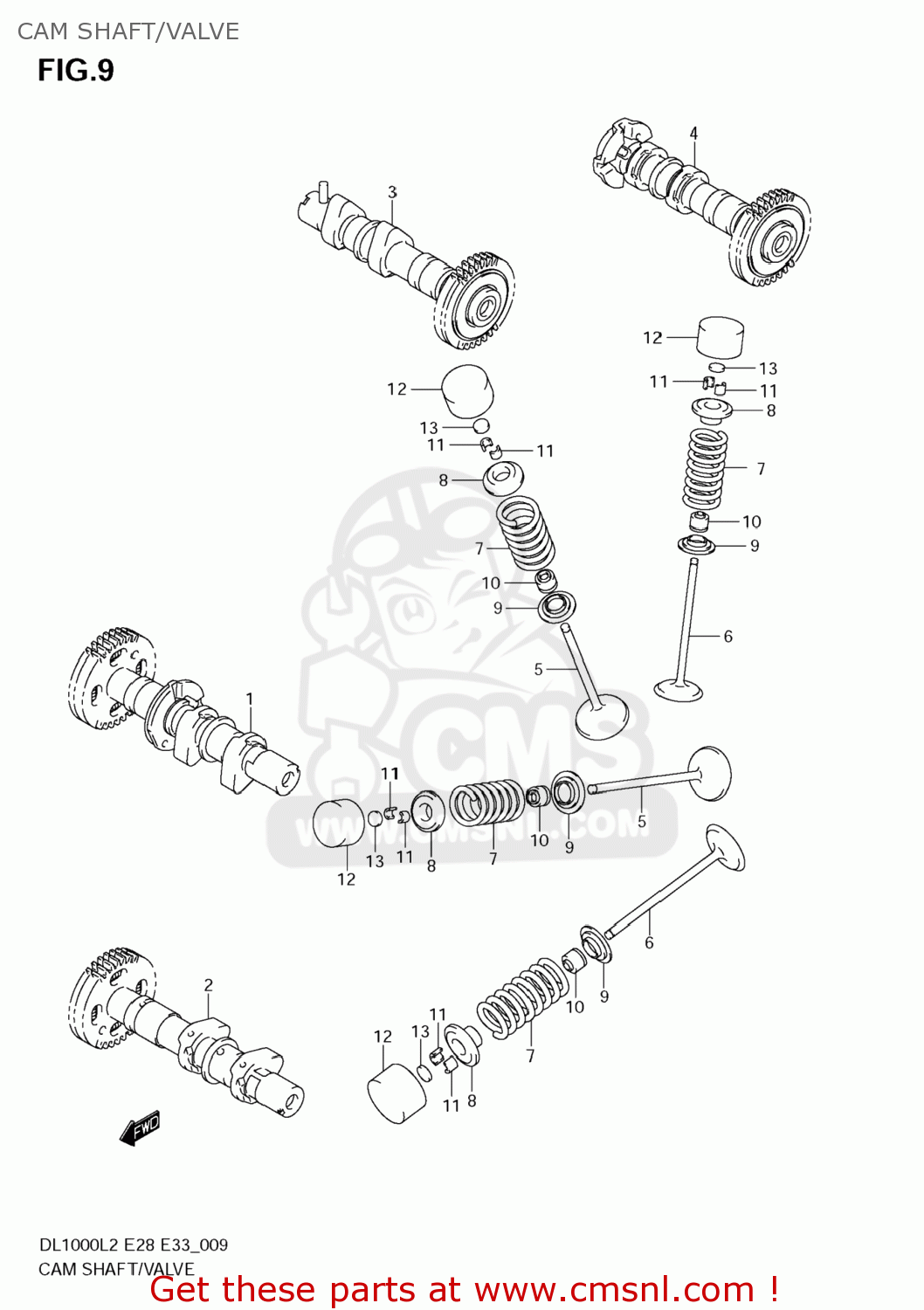

Cam shaft/valve diagram DL1000 VSTROM 2012 (L2) USA (E03)
CAM SHAFT/VALVE DL1000 VSTROM 2012 (L2) USA (E03)
×
prices are in EUR
ref
part #
description
quantity
1
1270106G00
ref: 1
CAMSHAFT ASSY,INTAKE FR
€ 984.00
2
1270206G00
ref: 2
CAMSHAFT ASSY,EXHAUST FR
€ 1,367.50
3
1270306G00
ref: 3
CAMSHAFT ASSY,INTAKE RR
€ 954.50
4
1270406G00
ref: 4
CAMSHAFT ASSY,EXHAUST RR
€ 1,367.50
5
1291116G00
ref: 5
VALVE,INTAKE
€ 24.50
6
1291202F00
ref: 6
VALVE,EXHAUST
€ 81.00
7
1292106G00
ref: 7
SPRING,VALVE
€ 12.00
8
1293106G00
ref: 8
RETAINER,VALVE SPRING
€ 12.50
9
1293306G00
ref: 9
SEAT,VALVE SPRING
€ 4.00
10
0928905015
ref: 10
SEAL,OIL(5.5X11X8.2)
€ 6.50
11
1293224400
ref: 11
COTTER,VALVE
€ 2.00
12
1289102F00
ref: 12
TAPPET
€ 42.50
13-1
1289241C00230
ref: 13-1
SHIM,TAPPET(T:2.3)
€ 7.50
13-10
1289241C00275
ref: 13-10
SHIM,TAPPET(T:2.75)
€ 7.50
13-11
1289241C00280
ref: 13-11
SHIM,TAPPET(T:2.8)
€ 7.50
13-12
1289241C00285
ref: 13-12
SHIM,TAPPET(T:2.85)
€ 7.50
13-13
1289241C00290
ref: 13-13
SHIM,TAPPET(T:2.9)
€ 7.50
13-14
1289241C00295
ref: 13-14
SHIM,TAPPET(T:2.95)
€ 7.00
13-15
1289241C00300
ref: 13-15
SHIM,TAPPET(T:3.0)
€ 7.00
13-16
1289241C00305
ref: 13-16
SHIM,TAPPET(T:3.05)
€ 7.50
13-17
1289241C00310
ref: 13-17
SHIM,TAPPET(T:3.1)
€ 7.50
13-18
1289241C00315
ref: 13-18
SHIM,TAPPET(T:3.15)
€ 7.50
13-19
1289241C00320
ref: 13-19
SHIM,TAPPET(T:3.2)
€ 7.50
13-2
1289241C00235
ref: 13-2
SHIM,TAPPET(T:2.35)
€ 7.00
13-20
1289241C00325
ref: 13-20
SHIM,TAPPET(T:3.25)
€ 7.00
13-21
1289241C00330
ref: 13-21
SHIM,TAPPET(T:3.3)
€ 7.00
13-22
1289241C00335
ref: 13-22
SHIM,TAPPET(T:3.35)
€ 7.00
13-23
1289241C00340
ref: 13-23
SHIM,TAPPET(T:3.4)
€ 7.00
13-24
1289241C00345
ref: 13-24
SHIM,TAPPET(T:3.45)
€ 7.00
13-25
1289241C00350
ref: 13-25
SHIM,TAPPET(T:3.5)
€ 7.00
13-3
1289241C00240
ref: 13-3
SHIM,TAPPET(T:2.4)
€ 7.00
13-4
1289241C00245
ref: 13-4
SHIM,TAPPET(T:2.45)
€ 7.00
13-5
1289241C00250
ref: 13-5
SHIM,TAPPET(T:2.5)
€ 7.00
13-6
1289241C00255
ref: 13-6
SHIM,TAPPET(T:2.55)
€ 7.50
13-7
1289241C00260
ref: 13-7
SHIM,TAPPET(T:2.6)
€ 8.00
13-8
1289241C00265
ref: 13-8
SHIM,TAPPET(T:2.65)
€ 7.00
13-9
1289241C00270
ref: 13-9
SHIM,TAPPET(T:2.7)
€ 8.00
14
1280041810
ref: 14
SHIM SET,TAPPET
€ 793.00
14
1280041810
ref: 14
SHIM SET,TAPPET
€ 793.00
15
9900069471
ref: 15
CASE,TAPPET SHIM
€ 103.50
15
9900069471
ref: 15
CASE,TAPPET SHIM
€ 103.50
