OIL PUMP

DL1000 VSTROM 2012 (L2) USA (E03)

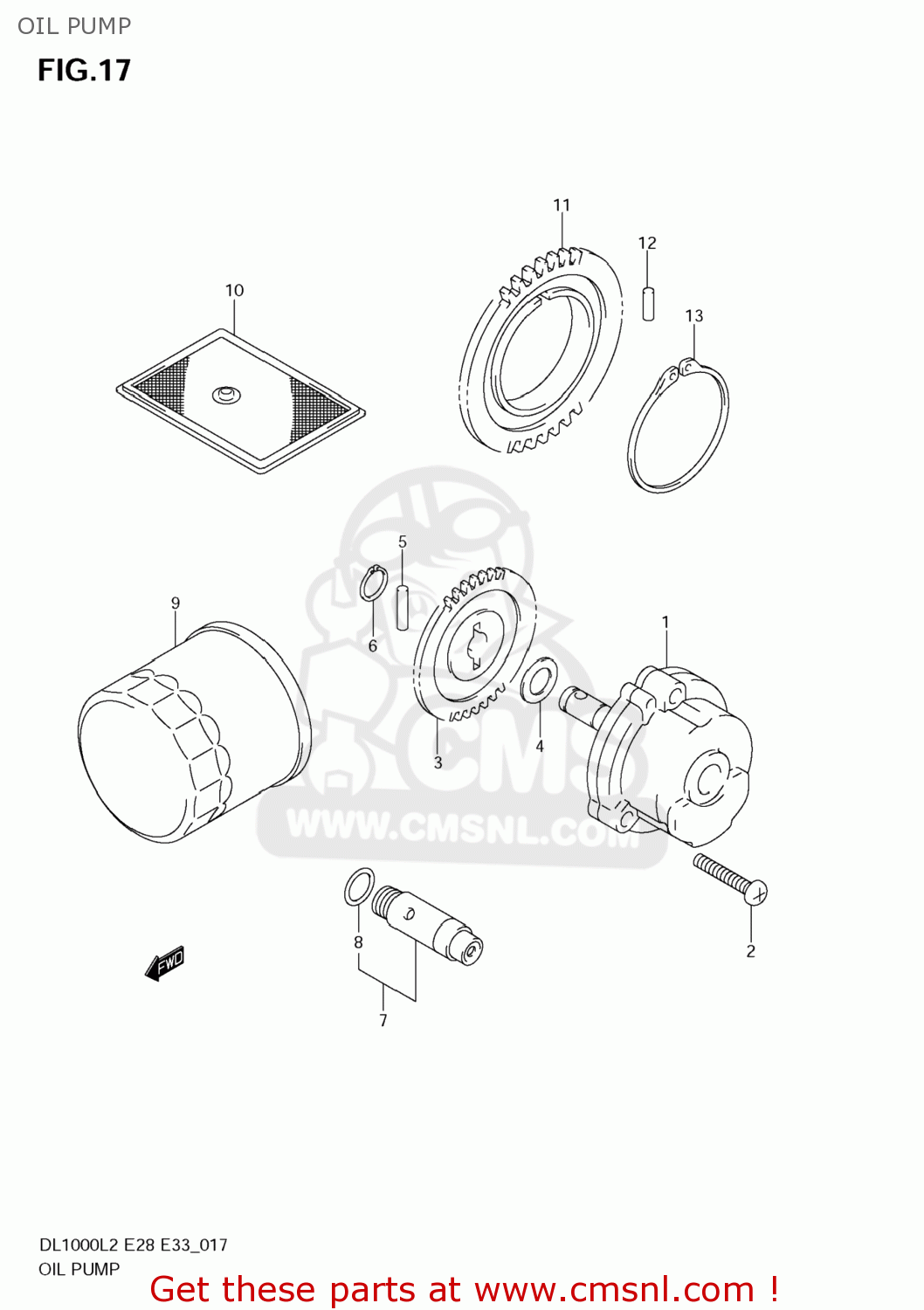

Oil pump diagram DL1000 VSTROM 2012 (L2) USA (E03)

OIL PUMP DL1000 VSTROM 2012 (L2) USA (E03)

OIL PUMP DL1000 VSTROM 2012 (L2) USA (E03)

prices are in EUR

ref

part #

description

quantity

1

1640002FB0
ref: 1

PUMP ASSY,ENGINE OIL

€ 135.50

2

071300625A
ref: 2

BOLT

€ 2.50

3

1633102F00
ref: 3

GEAR,OIL PUMP DRIVEN

€ 35.50

4

0918110158
ref: 4

SHIM(10X18X0.5)

€ 2.50

5

0926104009
ref: 5

PIN(4X15.8)

€ 1.50

6

083313110A
ref: 6

CIRCLIP

€ 2.00

7

1644024F00
ref: 7

VALVE ASSY,OIL RELIEF(7K)

€ 41.50

8

0928013004
ref: 8

O RING(D:1.9,ID:13)

€ 2.50

9

1651007J00
ref: 9

FILTER ASSY,ENGINE OIL

€ 12.50

10

1652032E00
ref: 10

STRAINER,ENGINE OIL

€ 11.50

11

1632102F00
ref: 11

GEAR,ENG OIL PUMP DRIVE

€ 39.00

12

0926106002
ref: 12

PIN(6X6)

€ 1.50

13

0833131509
ref: 13

CIRCLIP

€ 4.50
