THROTTLE BODY (DL1000 L2 E33)

DL1000 VSTROM 2012 (L2) USA (E03)

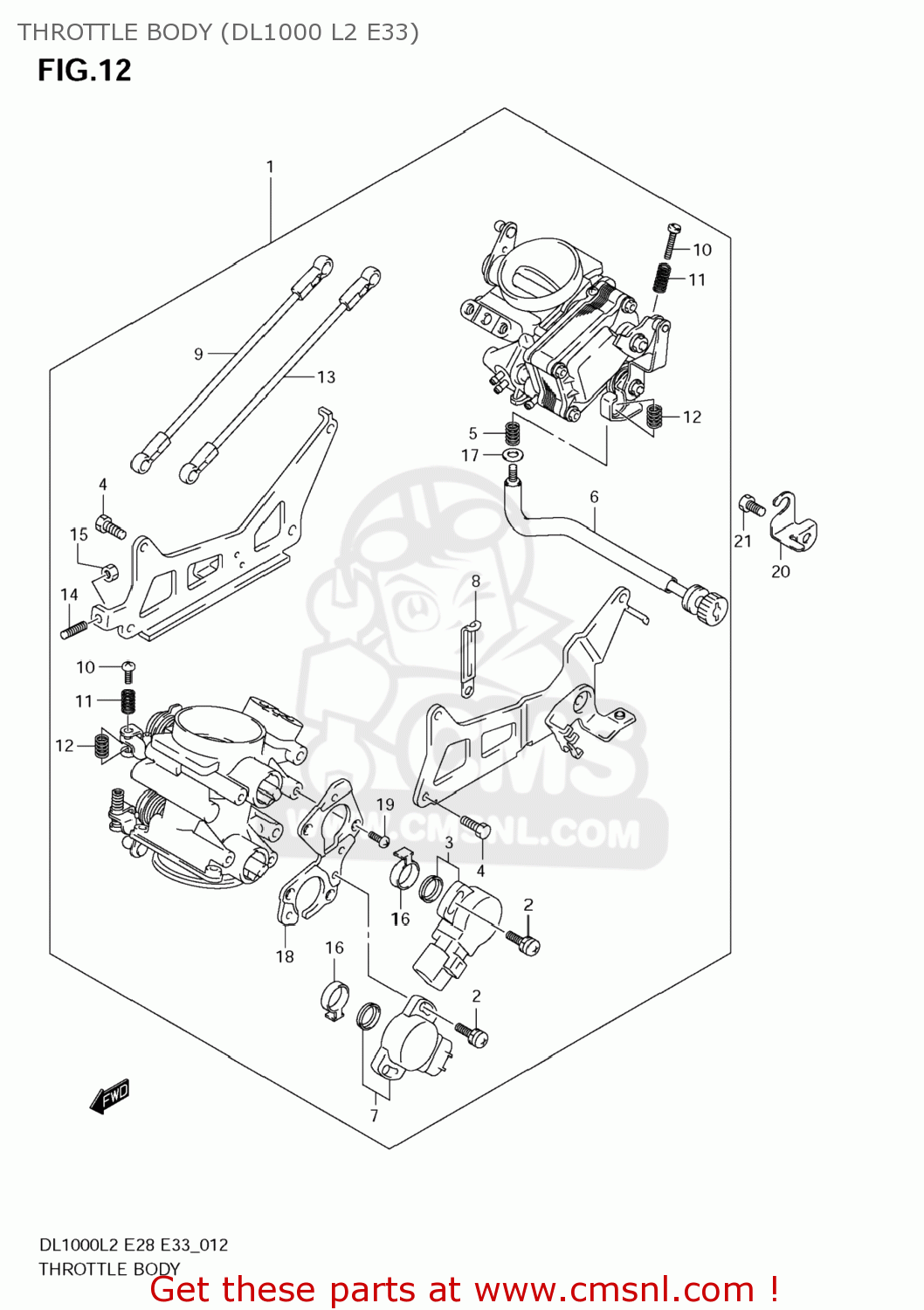

Throttle body (dl1000 l2 e33) diagram DL1000 VSTROM 2012 (L2) USA (E03)

prices are in EUR

ref

part #

description

quantity

1340506G41
ref: 1

BODY ASSY,THROTTLE

€ 911.00

1360502F00
ref: 2

SCREW

€ 3.00

1358006G00
ref: 3

SENSOR ASSY

€ 125.50

1361202F00
ref: 4

BOLT

€ 3.50

1327193011
ref: 5

SPRING

€ 4.50

1327006G00
ref: 6

SCREW ASSY,ADJUST

€ 82.50

1358002F00
ref: 7

SENSOR ASSY,THROTTLE

€ 118.50

0940406429
ref: 8

CLAMP(L:45)

€ 2.50

1355206G10
ref: 9

ROD ASSY

€ 26.50

1354842F00
ref: 10

SCREW

€ 3.50

1327144B00
ref: 11

SPRING

€ 4.00

1326889J00
ref: 12

SPRING

€ 6.00

1355206G00
ref: 13

ROD ASSY

€ 20.00

1360506G00
ref: 14

SCREW,ADJUST

€ 5.00

1360747070
ref: 15

NUT

€ 4.00

1331106G00
ref: 16

RING

€ 6.50

1338609410
ref: 17

WASHER

€ 2.50

1362706G00
ref: 18

PLATE

€ 31.00

0211204107
ref: 19

SCREW

€ 2.00

1327906G00
ref: 20

PLATE,IDLE ADJUST

€ 5.50

015000612B
ref: 21

BOLT

€ 2.00

THROTTLE BODY (DL1000 L2 E33)

all assemblies
