SPEEDOMETER (DL1000 L2 E28)

DL1000 VSTROM 2012 (L2) USA (E03)

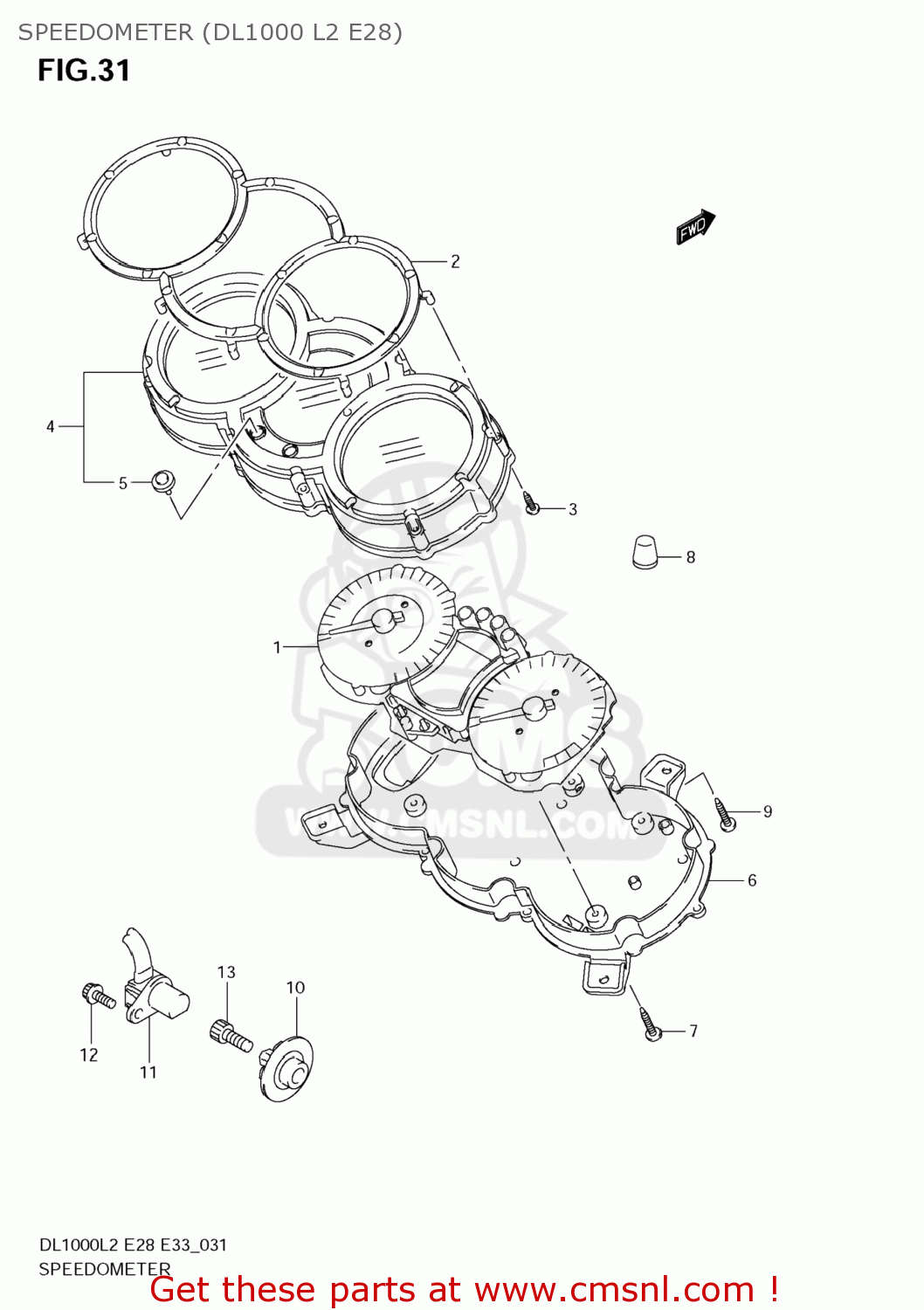

Speedometer (dl1000 l2 e28) diagram DL1000 VSTROM 2012 (L2) USA (E03)

prices are in EUR

ref

part #

description

quantity

3412006G51
ref: 1

SPEEDOMETER

€ 871.00

3419306G50
ref: 2

RING

€ 187.00

3418331F10
ref: 3

SCREW(2.3X8)

€ 3.00

3415027G00
ref: 4

CASE,UPR

€ 146.50

3412424F00
ref: 5

SWITCH,LEVER

€ 6.50

3411127G00
ref: 6

CASE,LWR

€ 72.00

0913203008
ref: 7

SCREW(3X16)

€ 1.50

3495510G00
ref: 8

CUSHION,SPEEDOMETER

€ 3.50

035410520B
ref: 9

SCREW

€ 2.50

3498138G01
ref: 10

ROTOR,SPEED

€ 15.00

3499047F00
ref: 11

SENSOR,SPEED

€ 124.50

071200510B
ref: 12

BOLT

€ 2.00

071300825B
ref: 13

BOLT

€ 3.50
