GEAR SHIFTING
DL1000 VSTROM 2012 (L2) USA (E03)

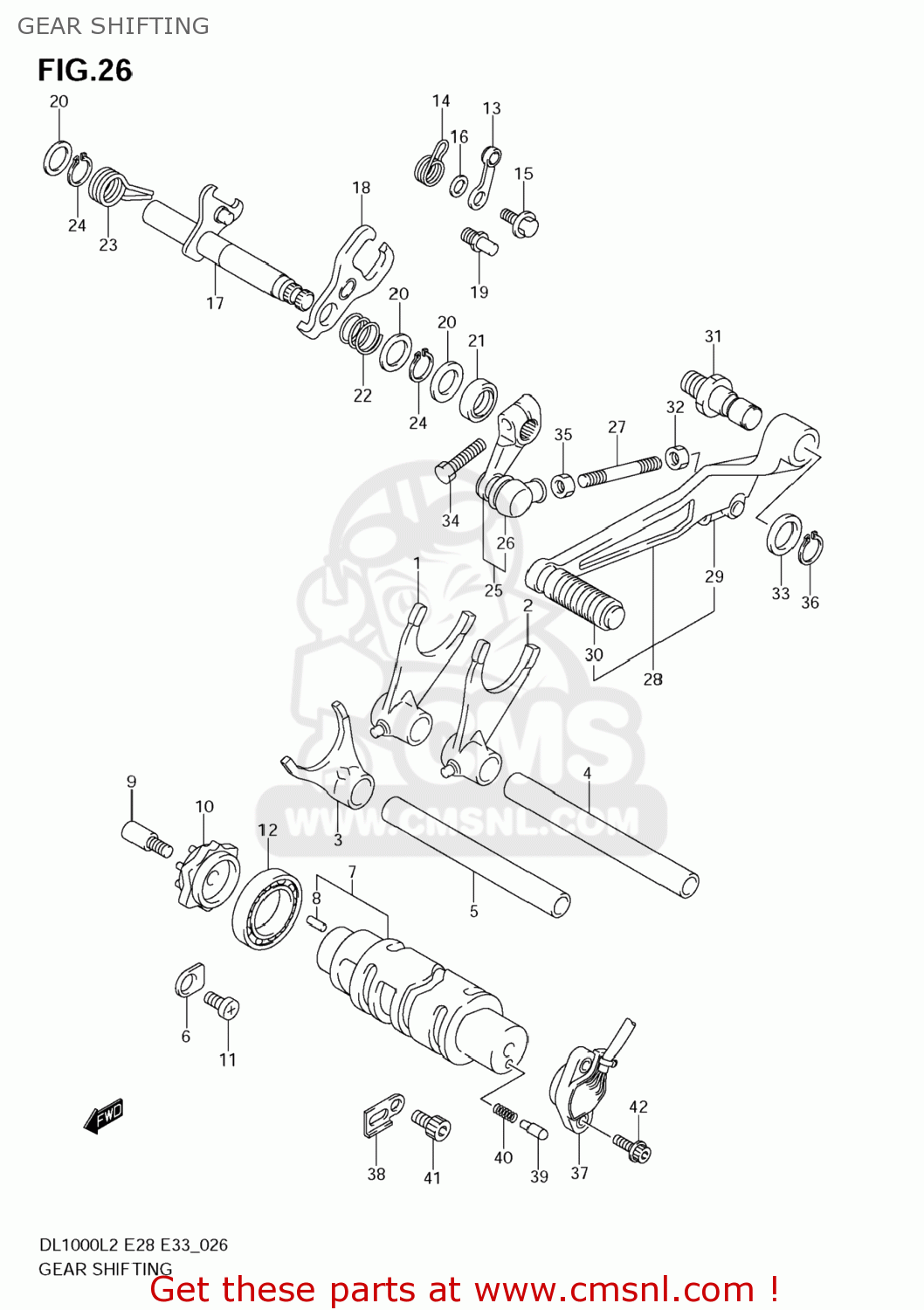

Gear shifting diagram DL1000 VSTROM 2012 (L2) USA (E03)
GEAR SHIFTING DL1000 VSTROM 2012 (L2) USA (E03)
×
prices are in EUR
ref
part #
description
quantity
1
2521117E01
ref: 1
FORK,GEAR SHIFT
€ 64.50
2
2521135F00
ref: 2
FORK,GEAR SHIFT NO.1
€ 99.00
3
2523135F00
ref: 3
FORK,GEAR SHIFT NO.3
€ 108.50
4
2541102F20
ref: 4
SHAFT,GEAR SHIFT FORK
€ 16.00
5
2541102F20
ref: 5
SHAFT,GEAR SHIFT FORK
€ 16.00
6
2474121A00
ref: 6
RETAINER
€ 2.00
7
2531002F10
ref: 7
CAM,GEAR SHIFT
€ 198.00
8
0422104089
ref: 8
PIN
€ 1.50
9
2531212C00
ref: 9
PIN,SHIFT CAM DRIVEN GEAR
€ 6.00
10
2538113E00
ref: 10
PLATE,GEAR SHIFT CAM
€ 30.00
11
0912506122
ref: 11
SCREW(6X12)
€ 1.50
12
0811369050
ref: 12
BEARING
€ 36.00
13
2535006G00
ref: 13
STOPPER,SHIFT CAM
€ 19.00
14
2535538F00
ref: 14
SPRING,GEAR SHIFT CAM STOPPER
€ 3.00
15
0911106041
ref: 15
BOLT(6X14.3)
€ 3.00
16
0821106141
ref: 16
WASHER
€ 2.50
17
2551006G10
ref: 17
SHAFT,GEAR SHIFT
€ 70.00
18
2551206G00
ref: 18
PLATE,GEAR SHIFT CAM DRIVE
€ 36.00
19
2567101011
ref: 19
STOPPER,GEAR SHIFT ARM
€ 3.00
20
0918114167
ref: 20
SHIM(14X22X1)
€ 3.50
21
0928314005
ref: 21
SEAL,OIL(14X22X7.3)
€ 6.50
22
0944017009
ref: 22
SPRING
€ 1.50
23
0944420001
ref: 23
SPRING
€ 5.00
24
083313114A
ref: 24
CIRCLIP
€ 2.00
25
2552006G00
ref: 25
ARM,GEAR SHIFT LINK
€ 56.50
26
2552647000
ref: 26
COVER,DUST
€ 3.50
27
2552543510
ref: 27
ROD,GEAR SHIFT LINK
€ 8.50
28
2560006G10
ref: 28
LEVER ASSY,GEA
€ 90.00
29
2552647000
ref: 29
COVER,DUST
€ 3.50
30
2565220C00
ref: 30
RUBBER,GEAR SHIFT PEDAL
€ 8.00
31
2561703F10
ref: 31
SHAFT,GEAR SHIFT LEVER
€ 10.50
32
0914006025
ref: 32
NUT
€ 2.00
33
0916012011
ref: 33
WASHER(12.5X20X1)
€ 1.50
34
015000620A
ref: 34
BOLT
€ 2.00
35
0831000067
ref: 35
NUT
€ 2.50
36
083313112A
ref: 36
CIRCLIP
€ 2.00
37
3773006G00
ref: 37
BASE ASSY,GEAR SHIFT TERMINAL
€ 130.00
38
3149745000
ref: 38
CLAMP,GENERATOR LEAD WIRE
€ 1.50
39
0920905011
ref: 39
PIN(5X15.5)
€ 2.00
40
0944004010
ref: 40
SPRING
€ 1.50
41
071300510B
ref: 41
BOLT
€ 2.00
42
071200516A
ref: 42
BOLT
€ 1.50
