FUEL DELIVERY PIPE (DL1000 L2 E33)

DL1000 VSTROM 2012 (L2) USA (E03)

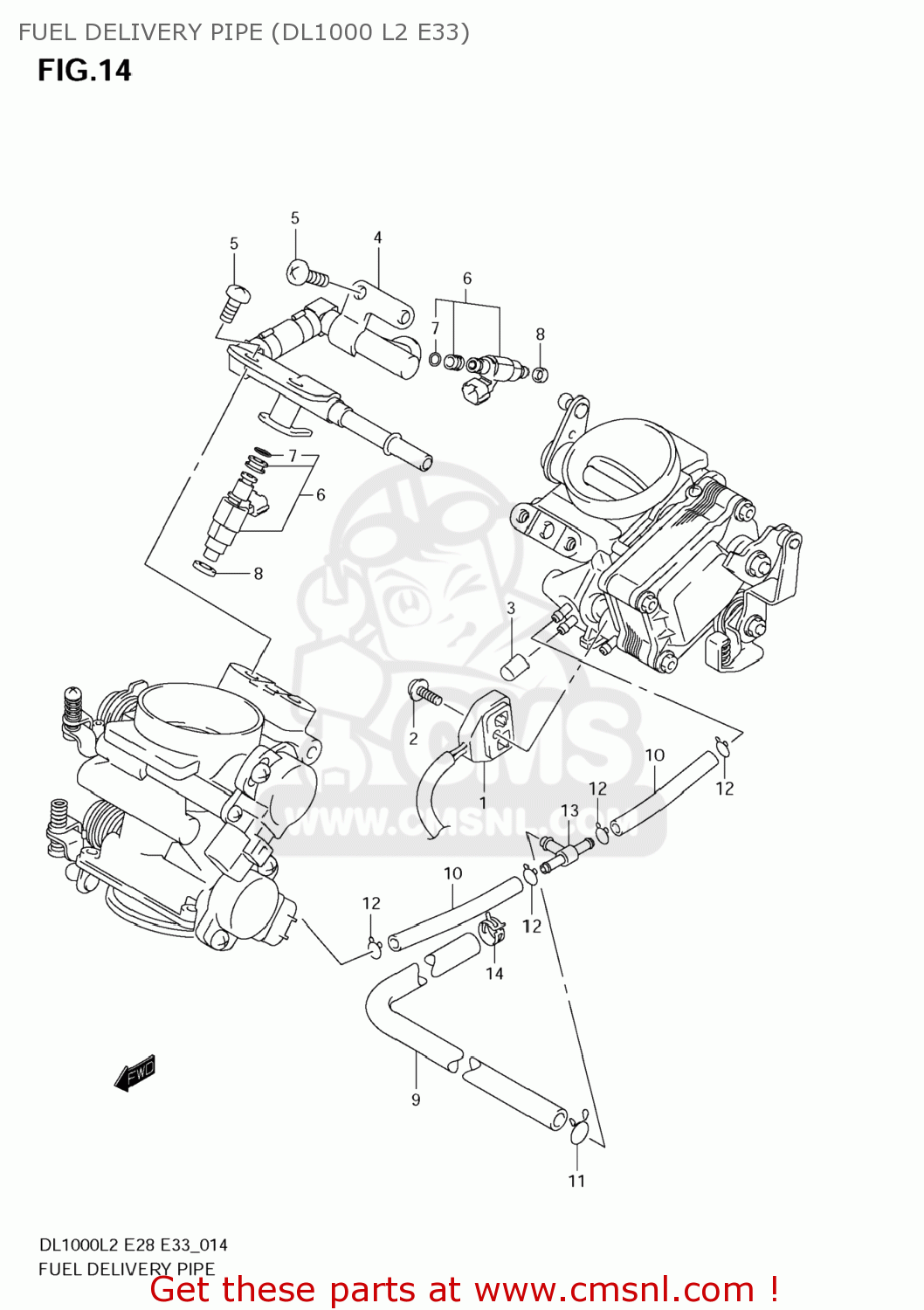

Fuel delivery pipe (dl1000 l2 e33) diagram DL1000 VSTROM 2012 (L2) USA (E03)

prices are in EUR

ref

part #

description

quantity

1347739F00
ref: 1

HARNESS ASSY

€ 53.00

021123416B
ref: 2

SCREW

€ 3.00

1327484000
ref: 3

CAP

€ 5.50

1573006G01
ref: 4

DELIVERY PIPE ASSY

€ 307.50

1360206128
ref: 5

SCREW

€ 2.50

1571006G00
ref: 6

INJECTOR ASSY

€ 311.00

1571758B00
ref: 7

O-RING

€ 7.00

1367233E00
ref: 8

CUSHION,FUEL INJECTOR

€ 12.50

1368306G11
ref: 9

HOSE

€ 50.00

1368106G40
ref: 10

HOSE

€ 15.00

0940110410
ref: 11
09401-10401

CLIP

€ 1.50

0940106101
ref: 12

CLIP

€ 2.50

1368504F10
ref: 13

NIPPLE

€ 6.50

0940109403
ref: 14

CLIP

€ 2.50
