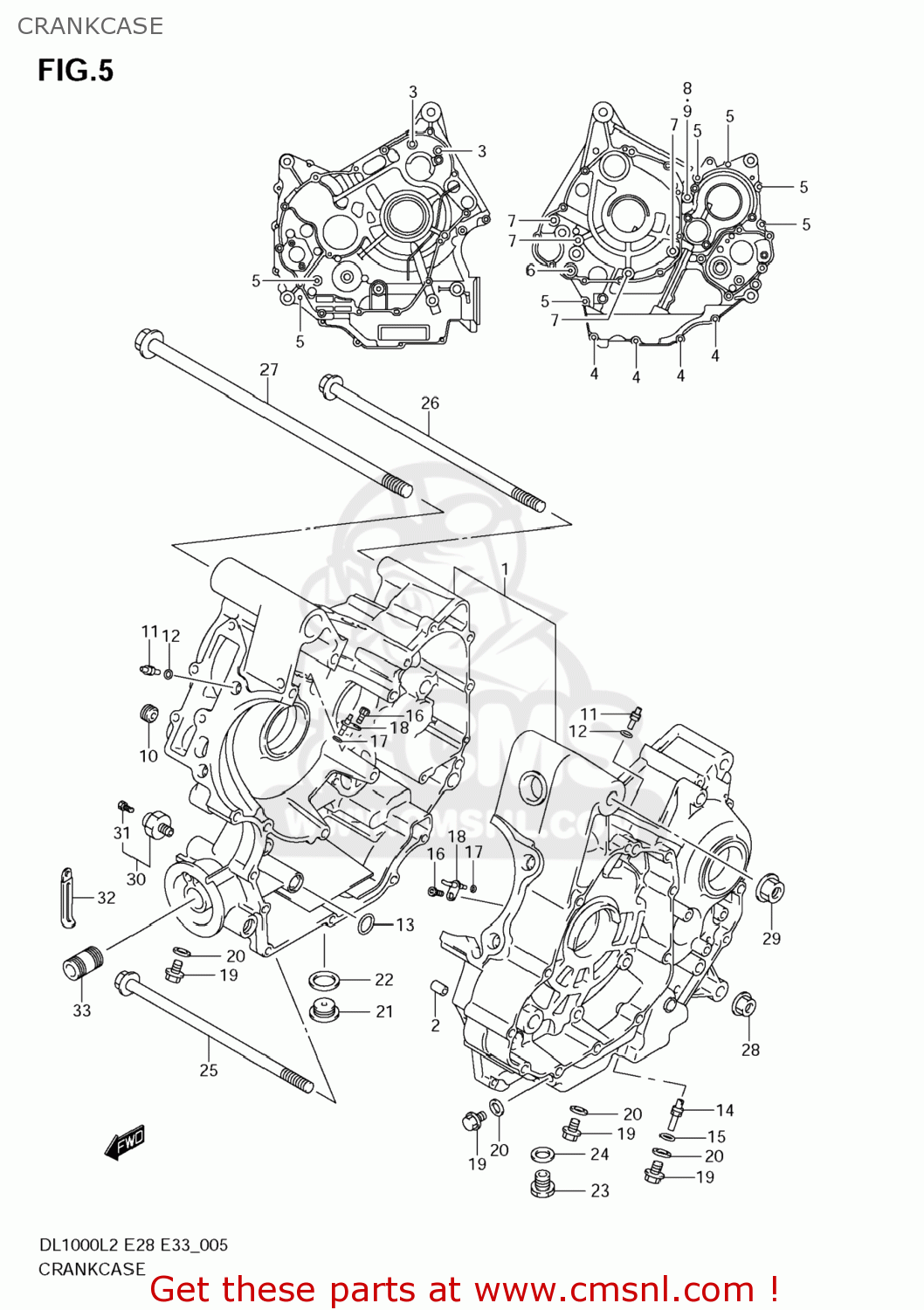

CRANKCASE

ref

part #

description

quantity

1

1130606821
ref: 1

CRANKCASE SET

€ 2,319.50

2

1131933E00
ref: 2

PIN,CRANKCASE

€ 4.00

3

0910608142
ref: 3

BOLT(8X110)

€ 5.50

4

015470630B
ref: 4

BOLT

€ 3.00

5

015470670B
ref: 5

BOLT

€ 3.00

6

015470685B
ref: 6

BOLT

€ 2.50

7

071200890B
ref: 7

BOLT

€ 4.50

8

0910608136
ref: 8

BOLT(8X125)

€ 6.00

9

083220108B
ref: 9

WASHER

€ 1.50

10

1132902F00
ref: 10

JET,OIL GALLERY(3.6)

€ 4.50

11

0949328010
ref: 11

JET,AIR(14)

€ 10.50

12

0928004004
ref: 12

O RING(D:1.2,ID:4)

€ 2.00

13

0928012009
ref: 13

O RING(D:1.9,ID:12.6)

€ 2.50

14

0949320014
ref: 14

JET,OIL GALLERY

€ 8.00

15

0928004004
ref: 15

O RING(D:1.2,ID:4)

€ 2.00

16

0910606075
ref: 16

BOLT(6X12)

€ 2.50

17

0928005007
ref: 17

O RING(D:1.2,ID:4.7)

€ 2.00

18

1139006G10
ref: 18

JET,PISTON COOLING

€ 24.00

19

015500812B
ref: 19

BOLT

€ 3.50

20

0916808016
ref: 20

GASKET(8.2X14X1) (NAS)

€ 1.00

21

0924816012
ref: 21

PLUG,16X8

€ 4.50

22

0916816002
ref: 22

GASKET(16X22X2) (NAS)

€ 2.00

23

0924714036
ref: 23

PLUG(14X20)

€ 5.50

24

0916814002
ref: 24
09168-14004

GASKET(13.8X18.8X4.8) (NAS)

€ 2.50

25

0910310205
ref: 25

BOLT(10X225)

€ 9.50

26

0910310347
ref: 26

BOLT(10X275)

€ 12.00

27

0910312073
ref: 27

BOLT(12X330)

€ 31.00

28

083193110B
ref: 28

NUT

€ 3.00

29

0915912054
ref: 29

NUT

€ 8.00

30

3782033D10
ref: 30

SWITCH ASSY,OIL PRESSURE

€ 29.00

31

3782233D00
ref: 31

BOLT,OIL PRESSURE SWITCH

€ 3.00

32

0940406429
ref: 32

CLAMP(L:45)

€ 2.50

33

1659106B01
ref: 33

UNION,OIL STAND

€ 6.00
