CHAIN CASE

DR500S 1983 (D)

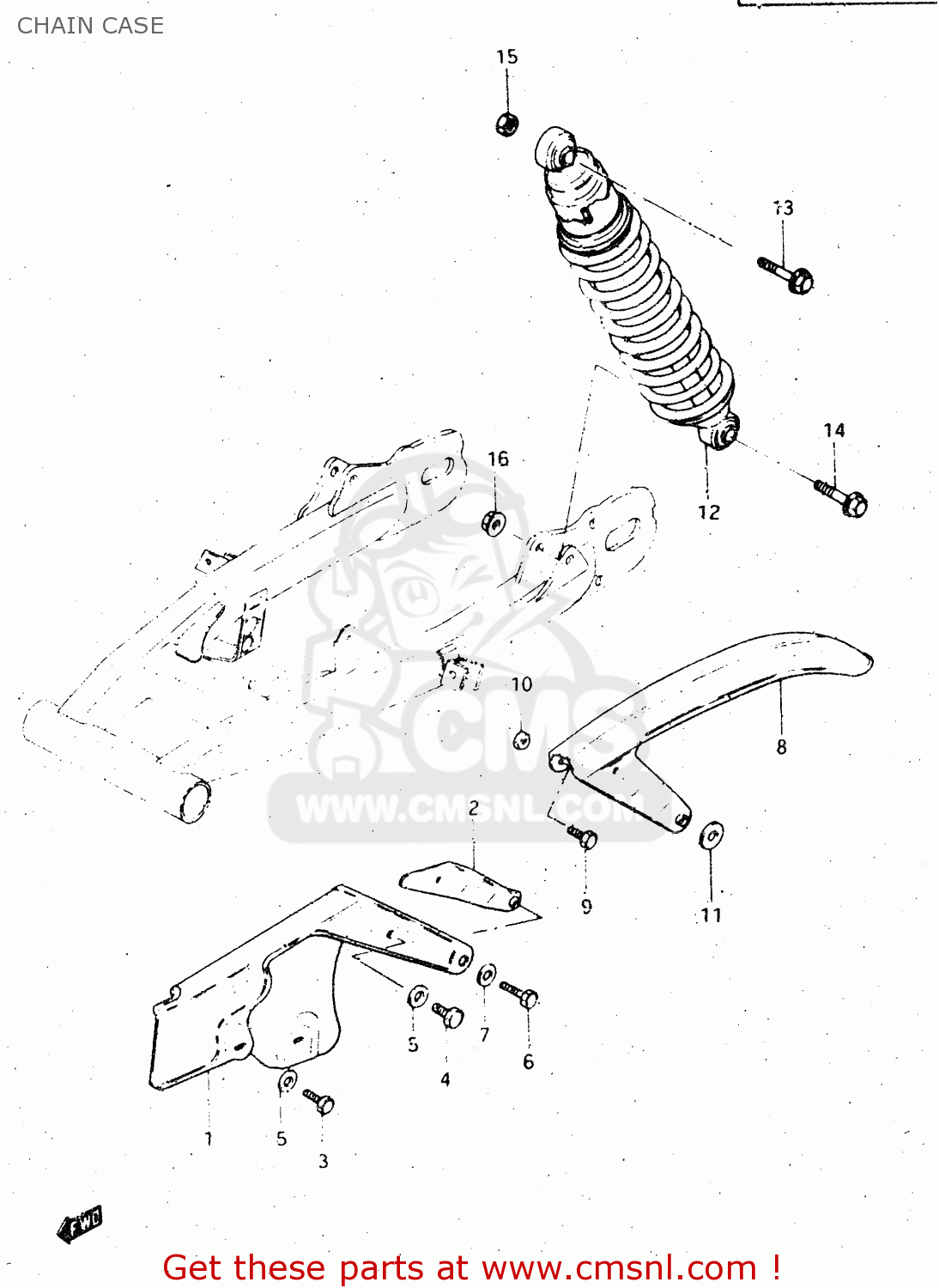

Chain case diagram DR500S 1983 (D)

CHAIN CASE DR500S 1983 (D)

CHAIN CASE DR500S 1983 (D)

prices are in EUR

ref

part #

description

quantity

1

6131137200
ref: 1

CASE,CHAIN

€ 40.00

2

6138037200
ref: 2

REINFORCEMENT,CHAIN CASE

€ 8.50

3

0110706108
ref: 3

BOLT

€ 2.00

4

0910006092
ref: 4

BOLT 6X8

€ 2.50

5

0916906025
ref: 5

WASHER,LOCK

€ 3.00

6

0110706208
ref: 6

BOLT

€ 2.00

7

0832221068
ref: 7

WASHER

€ 2.00

8

6133037200
ref: 8
E22,E24,E39

CHAIN CASE, END

€ 36.00

9

0110706108
ref: 9
E22,E24,E39

BOLT

€ 2.00

10

0831011068
ref: 10
E22,E24,E39

NUT

€ 2.50

11

0916906025
ref: 11
E22,E24,E39

WASHER,LOCK

€ 3.00

12

6210037420
ref: 12

ABSORBER ASSEMBLY,REAR SHOCK

€ 281.50

13

0910310044
ref: 13

BOLT(10X40)

€ 3.00

14

0910310045
ref: 14

BOLT(10X50)

€ 3.50

15

0831022108
ref: 15

NUT

€ 2.50

16

0831931108
ref: 16

NUT

€ 3.00
