REAR COMBINATION LAMP (E1,E4,E6,E21,E24,E25,E34)
DR500S 1983 (D)

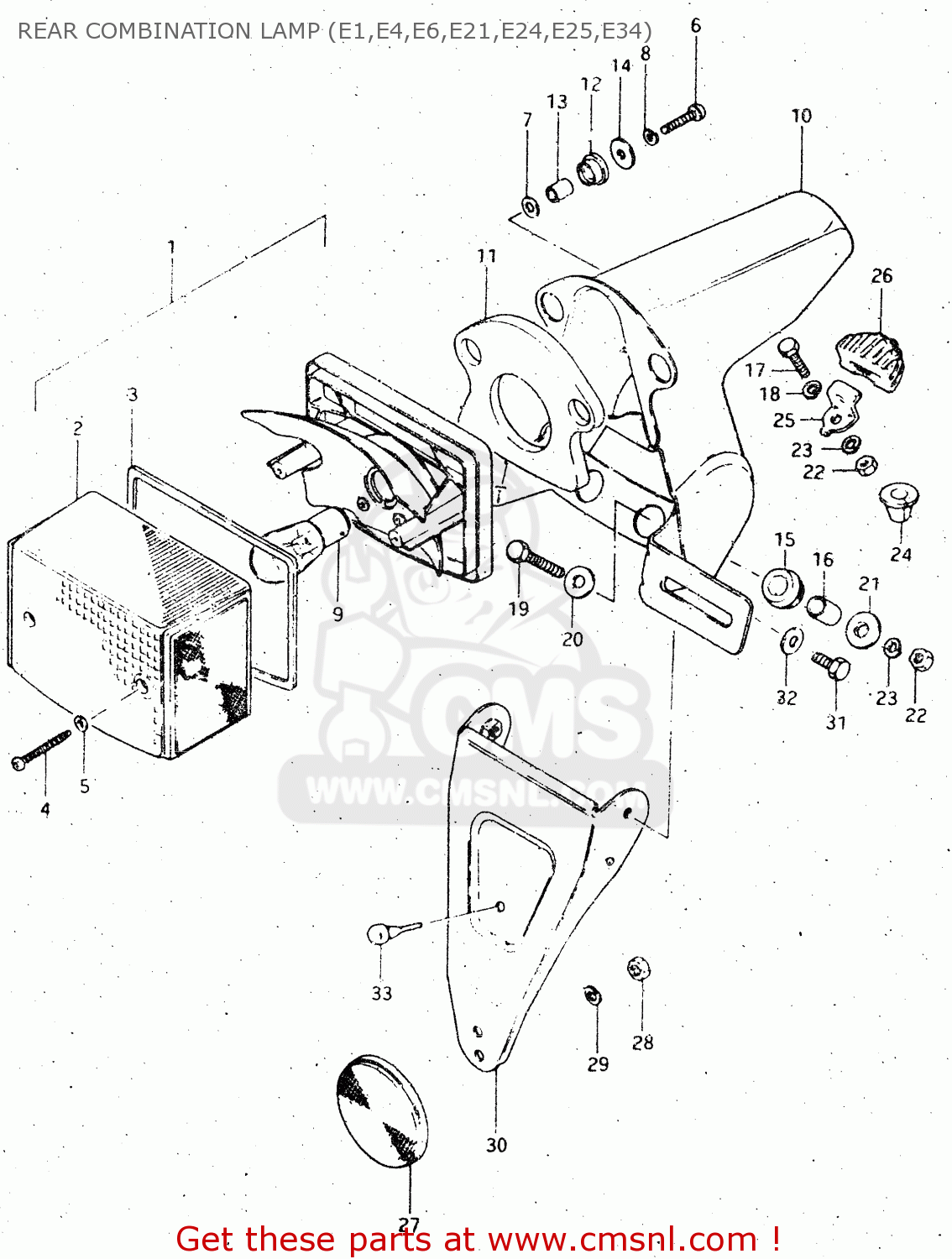

Rear combination lamp (e1,e4,e6,e21,e24,e25,e34) diagram DR500S 1983 (D)
REAR COMBINATION LAMP (E1,E4,E6,E21,E24,E25,E34) DR500S 1983 (D)
×
prices are in EUR
ref
part #
description
quantity
1-1
3572037410999
ref: 1-1
E1,E6,E24
LAMP UNIT, TAIL
€ 78.50
1-2
3572037460999
ref: 1-2
E4,E21,E25,E34
LAMP UNIT, TAIL
€ 78.50
2
3571248524
ref: 2
LENS,RR COMBINATION
€ 26.00
3
3571348510
ref: 3
GASKET (NAS)
€ 8.50
4
0321104308
ref: 4
SCREW
€ 1.50
5
3562743010
ref: 5
GASKET (NAS)
€ 2.00
6
0211205258
ref: 6
SCREW
€ 2.00
7
0832221058
ref: 7
WASHER
€ 2.50
8
0832121058
ref: 8
LOCK WASHER
€ 2.00
9-1
0947106030
ref: 9-1
E1,E6,E24
BULB(6V32/3CP,STANLEY)
€ 12.50
9-2
0947106034
ref: 9-2
E4,E21,E25,E34 EXECU
BULB (6V,21/5W)
€ 0.00
10
3573037410
ref: 10
BRACKET ASSY
€ 81.00
11
3576537410
ref: 11
CUSHION,REAR COMBINATION LAMP
€ 4.50
12
3576437410
ref: 12
CUSHION,REAR COMBINATION LAMP
€ 3.00
13
3576636510
ref: 13
SPACER,REAR COMBINATION LAMP
€ 5.50
14
3572737410
ref: 14
WASHER,REAR COMBINATION LAMP
€ 2.00
15
3576532410
ref: 15
CUSHION,REAR COMBINATION LAMP
€ 3.00
16
3576637120
ref: 16
SPACER
€ 2.50
17
0110706208
ref: 17
BOLT
€ 2.00
18
0832121068
ref: 18
LOCK WASHER
€ 2.50
19
0110706308
ref: 19
BOLT
€ 2.50
20
0916006027
ref: 20
WASHER (6.5X20X1.2)
€ 2.00
21
0916906016
ref: 21
WASHER
€ 1.50
22
0831011066
ref: 22
NUT
€ 2.00
23
0832221066
ref: 23
WASHER, LOWER
€ 2.00
24
0930807004
ref: 24
GROMMET
€ 2.50
25
3579337201
ref: 25
PLATE,RR COMBINATION LAMP
€ 2.00
26
3571737200
ref: 26
CUSHION,REAR COMBINATION LAMP
€ 3.00
27
3597030910
ref: 27
REFLEX REFLECTOR,RR
€ 47.50
28
0831011056
ref: 28
NUT
€ 2.50
29
0832121056
ref: 29
LOCK WASHER
€ 3.00
30-1
3597437410
ref: 30-1
E1,E4,E6,E21,E24,E25
BRACKET
€ 4.50
30-2
3597437420
ref: 30-2
E34
BRACKET
€ 44.00
31
0110706104
ref: 31
BOLT
€ 2.00
32
0832221064
ref: 32
WASHER
€ 2.00
33
0932105005
ref: 33
CUSHION
€ 7.00
