TURN SIGNAL LAMP (E18, E39)
DR500S 1983 (D)

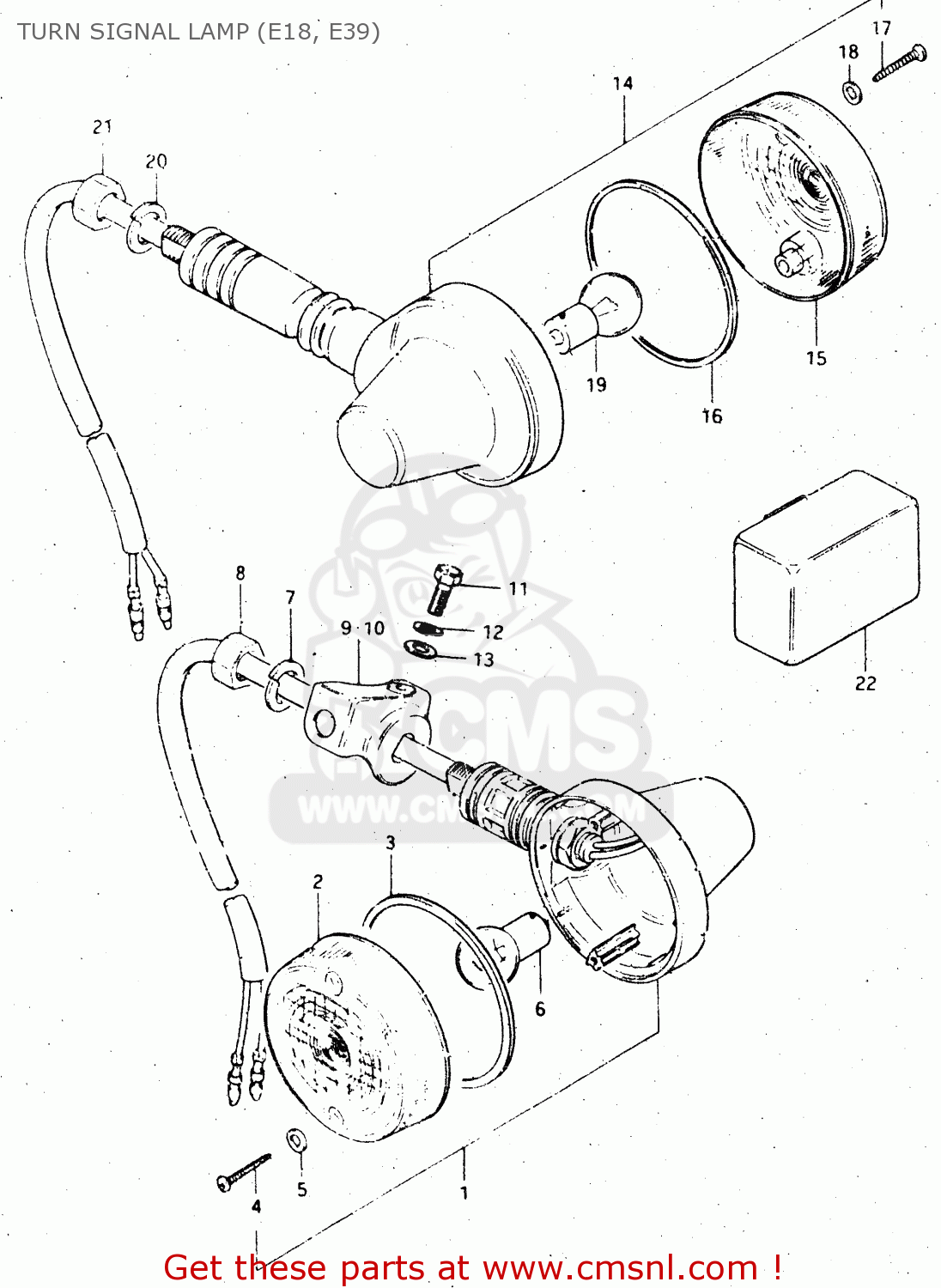

Turn signal lamp (e18, e39) diagram DR500S 1983 (D)
TURN SIGNAL LAMP (E18, E39) DR500S 1983 (D)
×
prices are in EUR
ref
part #
description
quantity
1-1
3560148551
ref: 1-1
E18
LAMP, FRONT TURN SIGNAL
€ 0.00
1-2
3560137481
ref: 1-2
E39
LAMP, FRONT TURN SIGNAL
€ 72.50
2-1
3561248530
ref: 2-1
E18
LENS
€ 7.50
2-2
3561248510
ref: 2-2
E39
LENS
€ 10.50
3
3561328620
ref: 3
GASKET (NAS)
€ 7.00
4
0321104258
ref: 4
SCREW TAPP.
€ 2.00
5
3562743010
ref: 5
GASKET (NAS)
€ 2.00
6
0947106033
ref: 6
EXECUTED LOCALLY
BULB (6V,21W)
€ 0.00
7
0832121125
ref: 7
WASHER
€ 2.50
8
0831012125
ref: 8
NUT 12MM
€ 2.50
9
512512990008C
ref: 9
BRACKET,TURN SIGNAL LAMP
€ 7.50
10
512522990008C
ref: 10
BRACKET,TURN SIGNAL LAMP
€ 7.50
11
0110706128
ref: 11
BOLT
€ 2.00
12
0832121068
ref: 12
LOCK WASHER
€ 2.50
13
0832221068
ref: 13
WASHER
€ 2.00
14
3560337482
ref: 14
TO 35603-38280-999
LAMP, REAR TURN SIGNAL
€ 0.00
15
3561248510
ref: 15
LENS
€ 10.50
16
3561328620
ref: 16
GASKET (NAS)
€ 7.00
17
0321104258
ref: 17
SCREW TAPP.
€ 2.00
18
3562743010
ref: 18
GASKET (NAS)
€ 2.00
19
0947106033
ref: 19
EXECUTED LOCALLY
BULB (6V,21W)
€ 0.00
20
0832121125
ref: 20
WASHER
€ 2.50
21
0831012125
ref: 21
NUT 12MM
€ 2.50
22-1
3861048611
ref: 22-1
MODEL D
RELAY, TURN SIGNAL
€ 51.50
22-2
3861038200
ref: 22-2
MODEL E
RELAY, TURN SIGNAL
€ 51.50
