CRANKCASE

DR500S 1983 (D)

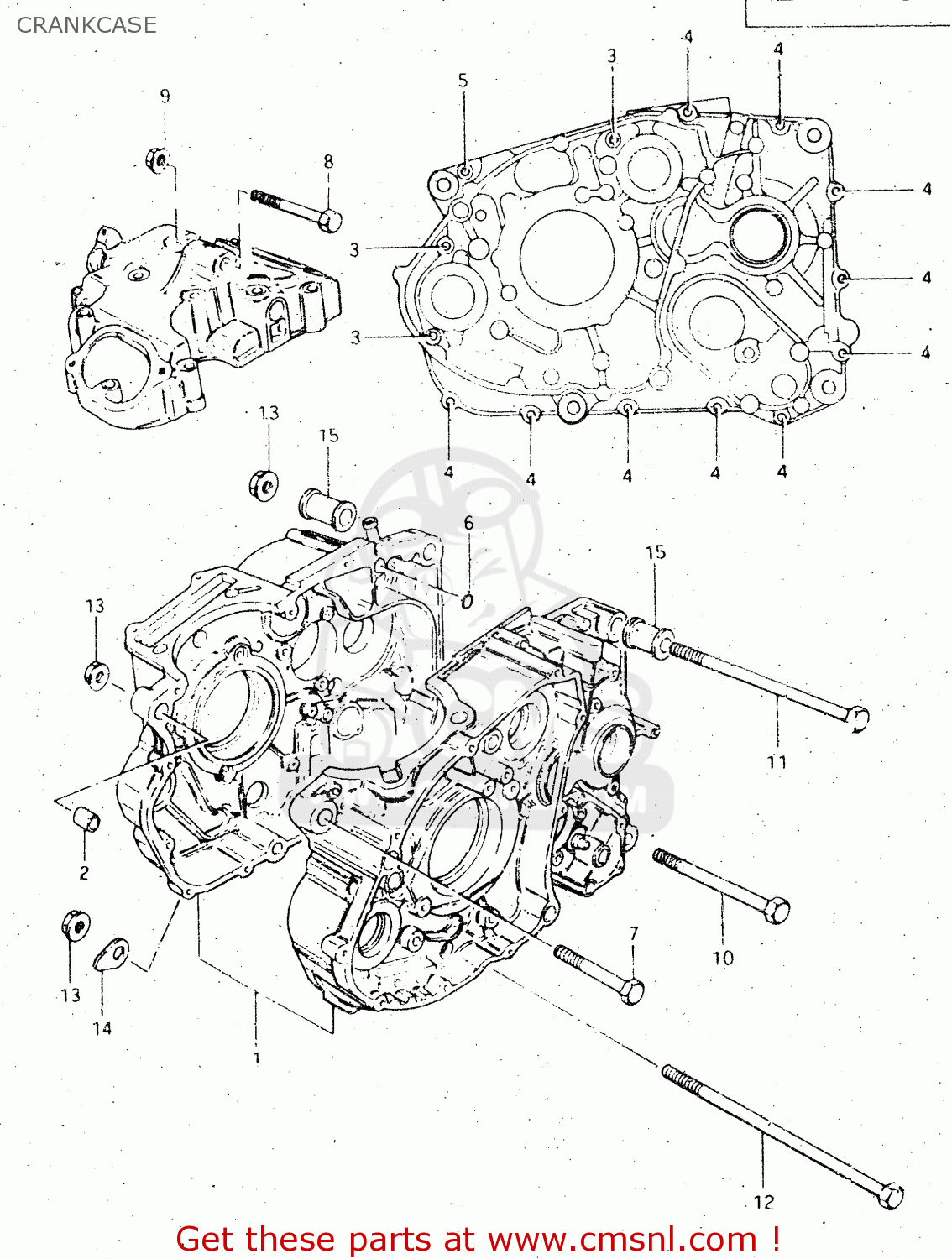

Crankcase diagram DR500S 1983 (D)

CRANKCASE DR500S 1983 (D)

CRANKCASE DR500S 1983 (D)

prices are in EUR

ref

part #

description

quantity

1

1130037410
ref: 1

CRANKCASE ASSEMBLY

€ 969.00

2

0920613001
ref: 2

PIN

€ 2.50

3

0154706605
ref: 3

BOLT (6X60)

€ 3.50

4

0154706404
ref: 4

BOLT 6X40

€ 3.00

5

0154706304
ref: 5

BOLT 6X30

€ 2.50

6

0928009004
ref: 6

O-RING

€ 4.00

7

0910310051
ref: 7

BOLT 10X70

€ 4.00

8

0151708504
ref: 8

BOLT, UPPER

€ 2.50

9

0831931085
ref: 9

NUT

€ 2.50

10

0910310052
ref: 10

BOLT(10X120)

€ 0.00

11

0910310053
ref: 11

BOLT(10X180)

€ 7.50

12

0910310054
ref: 12

BOLT

€ 0.00

13

0831931105
ref: 13

NUT 10MM

€ 3.00

14-1

0916910011
ref: 14-1

WASHER

€ 1.00

14-2

0916910012
ref: 14-2

WASHER

€ 1.00

15

1161032410
ref: 15

SPACER,ENGINE MOUNT

€ 12.00
