STEERING STEM
DR500S 1983 (D)

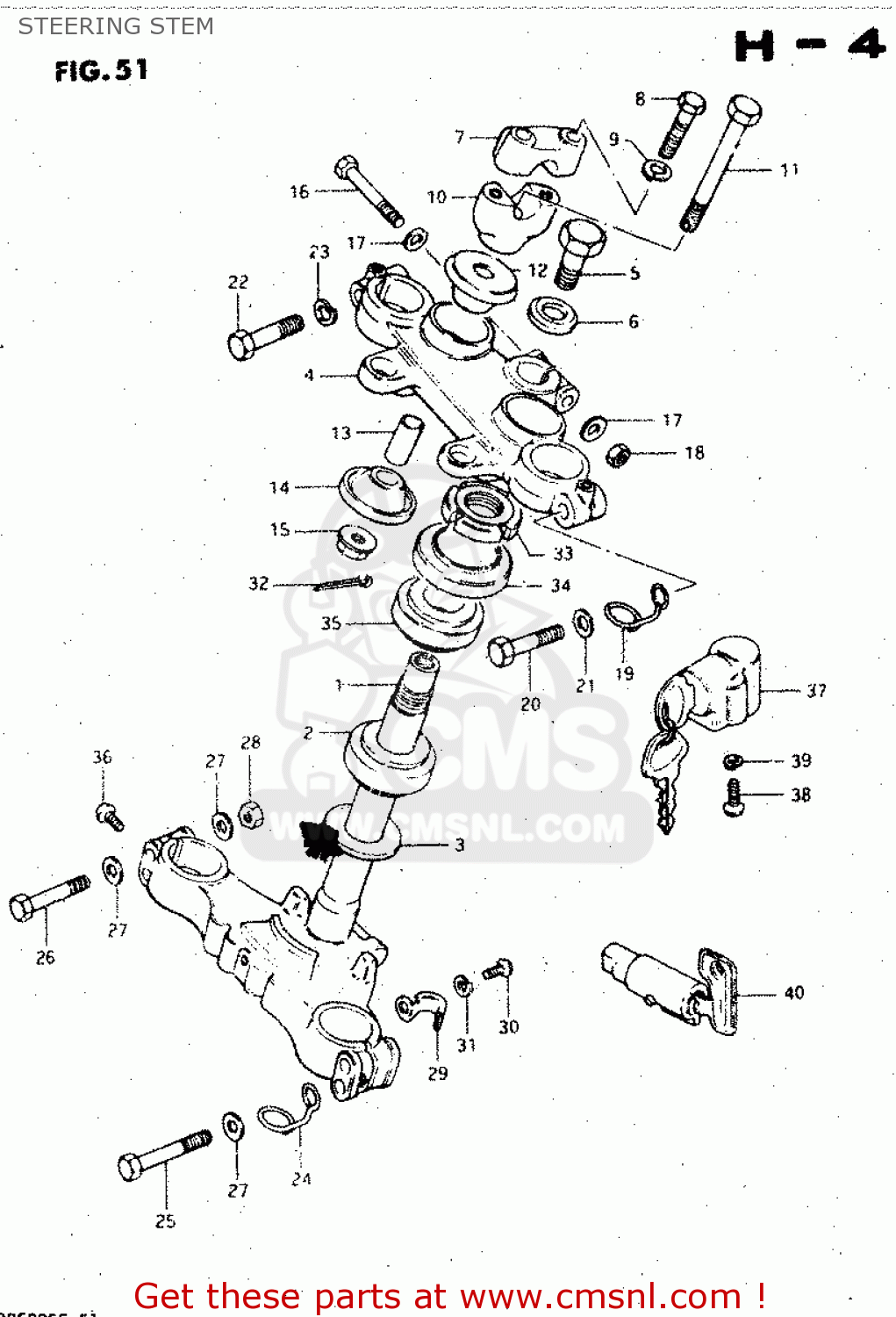

Steering stem diagram DR500S 1983 (D)
STEERING STEM DR500S 1983 (D)
×
prices are in EUR
ref
part #
description
quantity
1
514103722008C
ref: 1
STEM,STEERING
€ 360.50
2
0926530005
ref: 2
BEARING
€ 49.50
3
0821130402
ref: 3
WASHER,THRUST
€ 4.00
4
513103744008C
ref: 4
STEM HEAD, STEERING
€ 0.00
5
5135130540
ref: 5
BOLT,STEERING STEM HEAD
€ 5.00
6
5135641310
ref: 6
WASHER
€ 6.00
7
5621137441291
ref: 7
HOLDER, HANDLE UPPER
€ 15.50
8
5132137446
ref: 8
BOLT
€ 7.00
9
0832121088
ref: 9
LOCK WASHER
€ 2.00
10
562213741008C
ref: 10
HOLDER,HANDLEBAR
€ 21.00
11
5132137410
ref: 11
BOLT,HANDLE HOLDER
€ 7.00
12
5624137410
ref: 12
CUSHION,HANDLE,UPPER
€ 11.50
13
0918010065
ref: 13
SPACER(10.2X14X46)
€ 4.50
14
5624237410
ref: 14
CUSHION,HANDLE,LOWER
€ 32.50
15
0831931108
ref: 15
NUT
€ 3.00
16
0110708558
ref: 16
BOLT 8X55
€ 3.00
17
0832221088
ref: 17
WASHER
€ 2.00
18
0831012088
ref: 18
NUT
€ 2.00
19
5145529330
ref: 19
CLIP
€ 5.50
20
0110710408
ref: 20
BOLT 10X40
€ 3.00
21
0832211108
ref: 21
WASHER
€ 2.50
22-1
5135237446
ref: 22-1
MODEL D
BOLT,STEERING STEM HEAD
€ 2.50
22-2
5145115113
ref: 22-2
MODEL E
BOLT,FORK INNER TUBE F
€ 2.50
23
0832121108
ref: 23
LOCK WASHER
€ 2.00
24
5145532400
ref: 24
GUIDE,CABLE
€ 5.50
25
0110708608
ref: 25
BOLT
€ 2.50
26
0110708558
ref: 26
BOLT 8X55
€ 3.00
27
0832221088
ref: 27
WASHER
€ 2.00
28
0831012088
ref: 28
NUT
€ 2.00
29
5145305110
ref: 29
CLIP,BRAKE CABLE
€ 4.50
30
0211206108
ref: 30
SCREW
€ 1.50
31
0832121068
ref: 31
LOCK WASHER
€ 2.50
32
0411120208
ref: 32
PIN 20X20
€ 1.50
33
5163128000
ref: 33
NUT,STEERING STEM(25X44X10)
€ 12.50
34
5164349001
ref: 34
DUST SEAL,STEERING,UPPER
€ 7.50
35
0926525008
ref: 35
TAPER,ROLLER BEARING
€ 48.50
36
0214205067
ref: 36
SCREW 5X6
€ 2.50
37
5191025311
ref: 37
LOCK ASSY,STEERING
€ 22.50
38
0211205128
ref: 38
SCREW
€ 2.50
39
0832121058
ref: 39
LOCK WASHER
€ 2.00
40
5190030901
ref: 40
E22
LOCK ASSY,STEERING(NEIMAN)
€ 168.50
