REAR COMBINATION LAMP (E22)
DR500S 1983 (D)

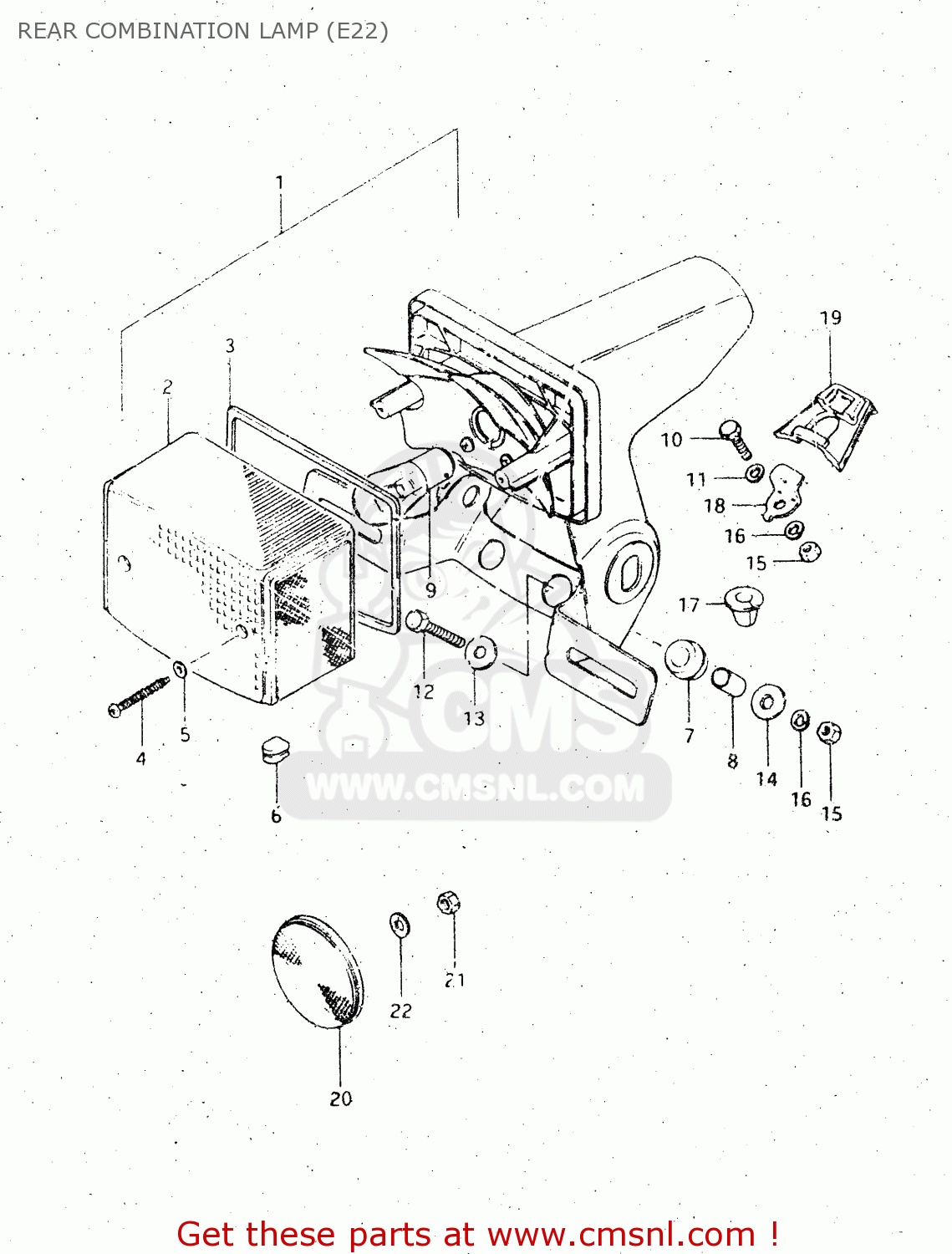

Rear combination lamp (e22) diagram DR500S 1983 (D)
REAR COMBINATION LAMP (E22) DR500S 1983 (D)
×
prices are in EUR
ref
part #
description
quantity
1
3571037490999
ref: 1
LAMP ASSY, TAIL
€ 0.00
2
3571248524
ref: 2
LENS,RR COMBINATION
€ 26.00
3
3571348510
ref: 3
GASKET (NAS)
€ 8.50
4
0321104308
ref: 4
SCREW
€ 1.50
5
3562743010
ref: 5
GASKET (NAS)
€ 2.00
6
3572830640
ref: 6
GROMMET,REAR COMBINATION LAMP
€ 3.00
7
3576532410
ref: 7
CUSHION,REAR COMBINATION LAMP
€ 3.00
8
3576637120
ref: 8
SPACER
€ 2.50
9
0947106034
ref: 9
EXECUTED LOCALLY
BULB (6V,21/5W)
€ 0.00
10
0110706208
ref: 10
BOLT
€ 2.00
11
0832121068
ref: 11
LOCK WASHER
€ 2.50
12
0110706308
ref: 12
BOLT
€ 2.50
13
0916006027
ref: 13
WASHER (6.5X20X1.2)
€ 2.00
14
0916906016
ref: 14
WASHER
€ 1.50
15
0831011068
ref: 15
NUT
€ 2.50
16
0832221068
ref: 16
WASHER
€ 2.00
17
0930807004
ref: 17
GROMMET
€ 2.50
18
3579337401
ref: 18
PLATE
€ 0.00
19
3571737400
ref: 19
CUSHION
€ 9.50
20
3597045611
ref: 20
REFLECTOR,REFLEX
€ 47.50
21
0831011056
ref: 21
NUT
€ 2.50
22
0832221056
ref: 22
WASHER
€ 2.50
