FOOTREST

DR500S 1983 (D)

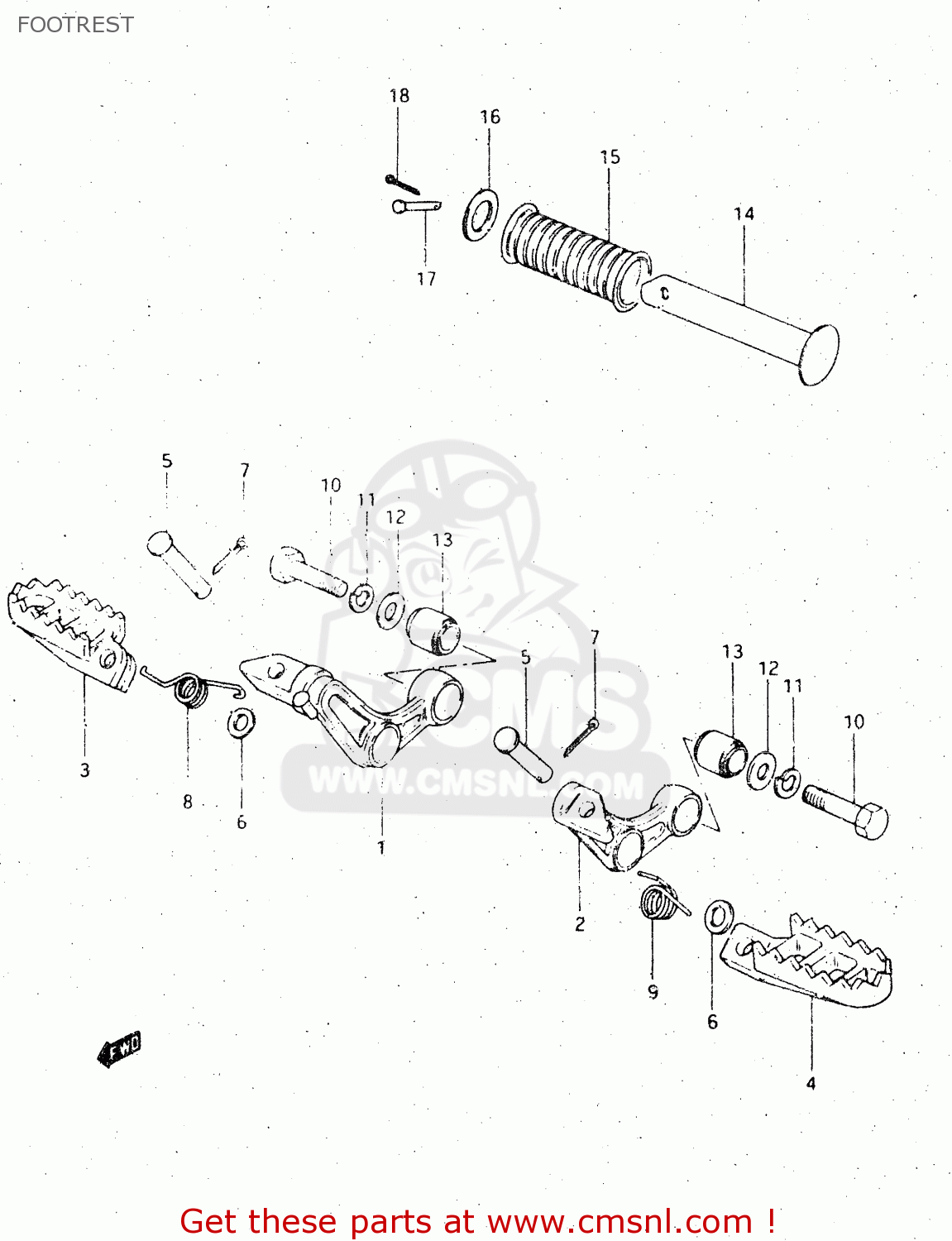

Footrest diagram DR500S 1983 (D)

FOOTREST DR500S 1983 (D)

FOOTREST DR500S 1983 (D)

prices are in EUR

ref

part #

description

quantity

1

4351037410
ref: 1

BAR,FRONT FOOTREST

€ 22.50

2

4352037410
ref: 2

BAR,FRONT FOOTREST,LEFT

€ 38.00

3

4355137202
ref: 3

FOOTREST,RIGHT

€ 31.00

4

4356140401
ref: 4
TO 43561-40401-019

FOOTREST

€ 24.50

5

0920008035
ref: 5

PIN

€ 6.50

6

0832221088
ref: 6

WASHER

€ 2.00

7

0411120208
ref: 7

PIN 20X20

€ 1.50

8

0944814022
ref: 8

SPRING

€ 2.00

9

0944814019
ref: 9

SPRING

€ 2.50

10

0910010117
ref: 10

BOLT

€ 2.50

11

0832121108
ref: 11

LOCK WASHER

€ 2.00

12

0916010013
ref: 12

WASHER (10.1X21X2.3)

€ 2.00

13

0931910047
ref: 13

BUSH

€ 8.00

14

4361044000
ref: 14

BAR,PILLION FOOTREST

€ 14.50

15

4361203001
ref: 15

RUBBER,PILLION FOOTREST

€ 3.50

16

0916019006
ref: 16

WASHER (19.5X32X2)

€ 2.00

17

0920006010
ref: 17

PIN

€ 2.50

18

0411120206
ref: 18

COTTER PIN

€ 1.50
