HEADLAMP (E1, E6, E24)

DR500S 1983 (D)

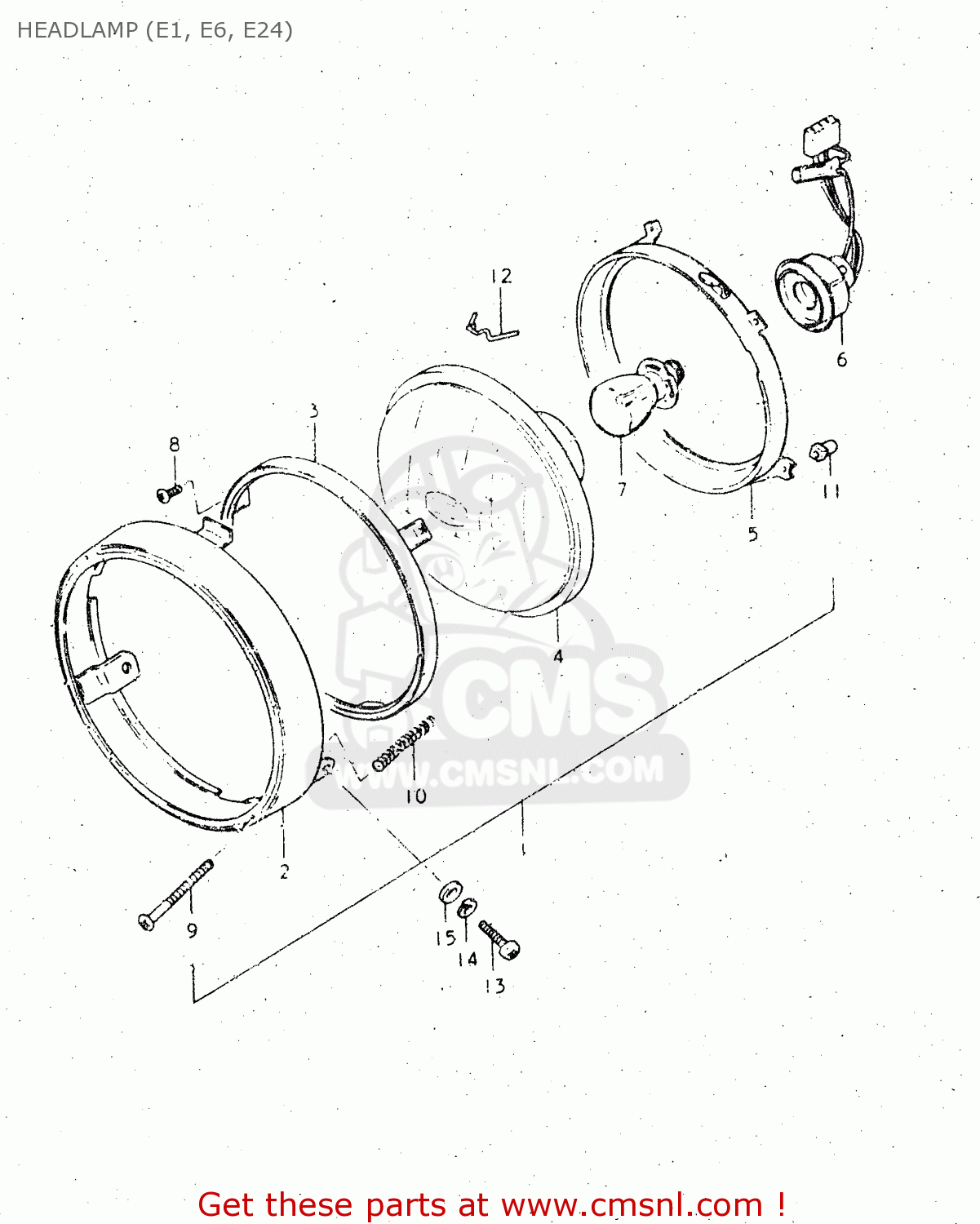

Headlamp (e1, e6, e24) diagram DR500S 1983 (D)

HEADLAMP (E1, E6, E24) DR500S 1983 (D)

HEADLAMP (E1, E6, E24) DR500S 1983 (D)

prices are in EUR

ref

part #

description

quantity

1

3510037210
ref: 1

HEADLAMP ASSY

€ 0.00

2

3511148530
ref: 2

RIM

€ 34.00

3

3512748530
ref: 3

RETAINER,HEADLAMP

€ 13.00

4

3512132400
ref: 4

UINT

€ 57.00

5

3513048540
ref: 5

RING, MOUNTING

€ 18.00

6

3517137210
ref: 6

SOCKET

€ 0.00

7

0947106043
ref: 7

BULB(6V,35/35W)

€ 7.00

8

0211204088
ref: 8

SCREW

€ 1.50

9

3515133611
ref: 9

SCREW,HEADLAMP ADJUST

€ 4.00

10

3515431900
ref: 10

SPRING,ADJUSTING

€ 3.50

11

3515248530
ref: 11

NUT,HEADLAMP ADJUSTER

€ 2.00

12

3512848530
ref: 12

SPRING,HEADLAMP UNIT

€ 3.50

13

0211205168
ref: 13

SCREW

€ 2.50

14

0832121058
ref: 14

LOCK WASHER

€ 2.00

15

0832221058
ref: 15

WASHER

€ 2.50
