CRANK BALANCER

DR500S 1983 (D)

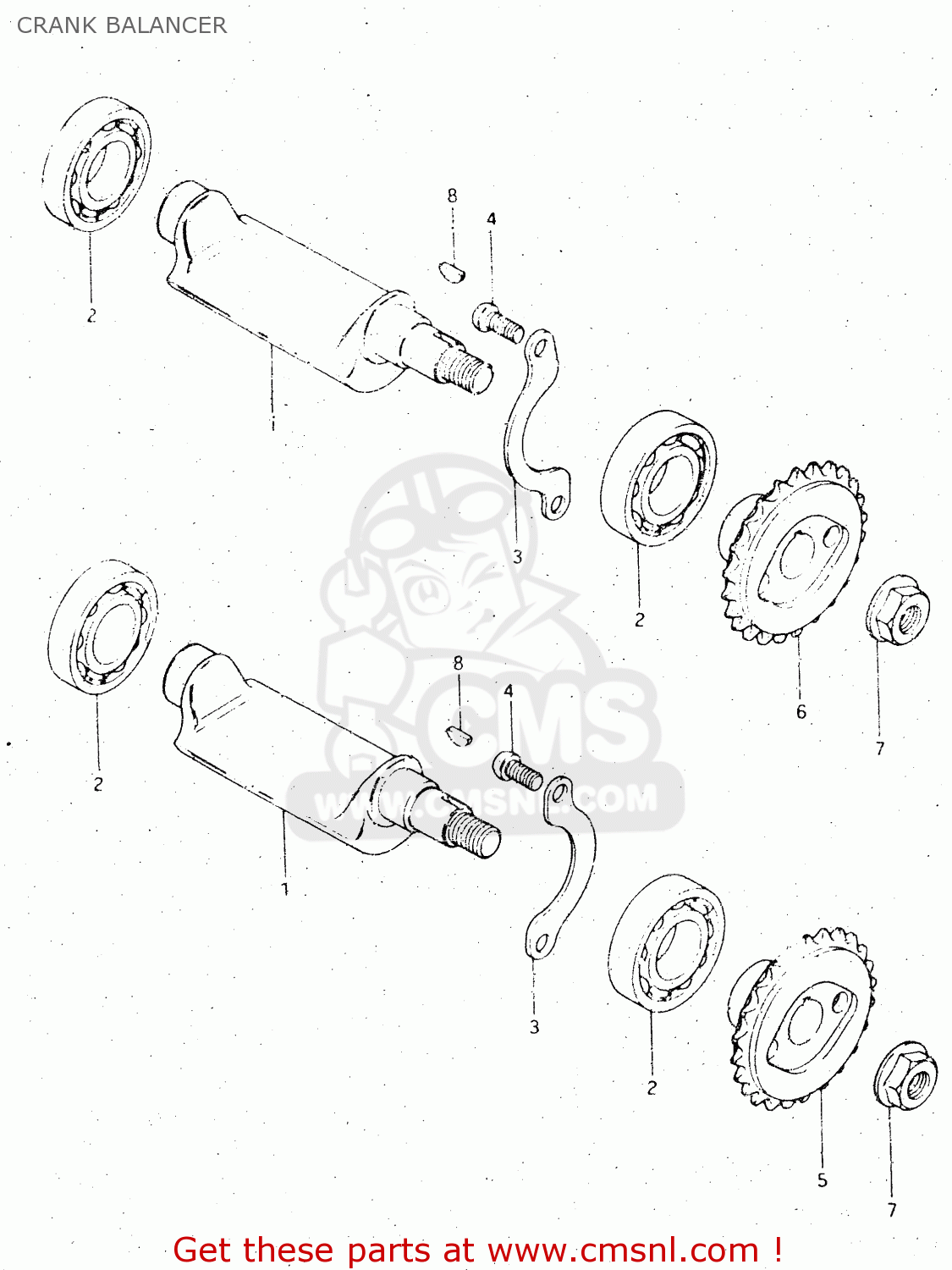

Crank balancer diagram DR500S 1983 (D)

CRANK BALANCER DR500S 1983 (D)
CRANK BALANCER DR500S 1983 (D)
CRANK BALANCER DR500S 1983 (D)
prices are in EUR
ref
part #
description
quantity
1
1265137400
ref: 1
BALANCER,CRANKSHAFT
€ 65.00
2
0926220057
ref: 2
BEARING
0926220057
€ 20.50
3
1265937400
ref: 3
RETAINER,CRANK BAL BEARING
1265937400
€ 2.00
4
0211206128
ref: 4
SCREW 6X12
0211206128
€ 2.00
5
1266537452
ref: 5
SPROCKET,BALANCER DRIVE
€ 32.50
6
1267537452
ref: 6
SPROCKET,BALANCER DRIVE
€ 35.50
7
0915910014
ref: 7
NUT
0915910014
€ 2.00
8
0834131039
ref: 8
KEY
0834131039
€ 2.00
