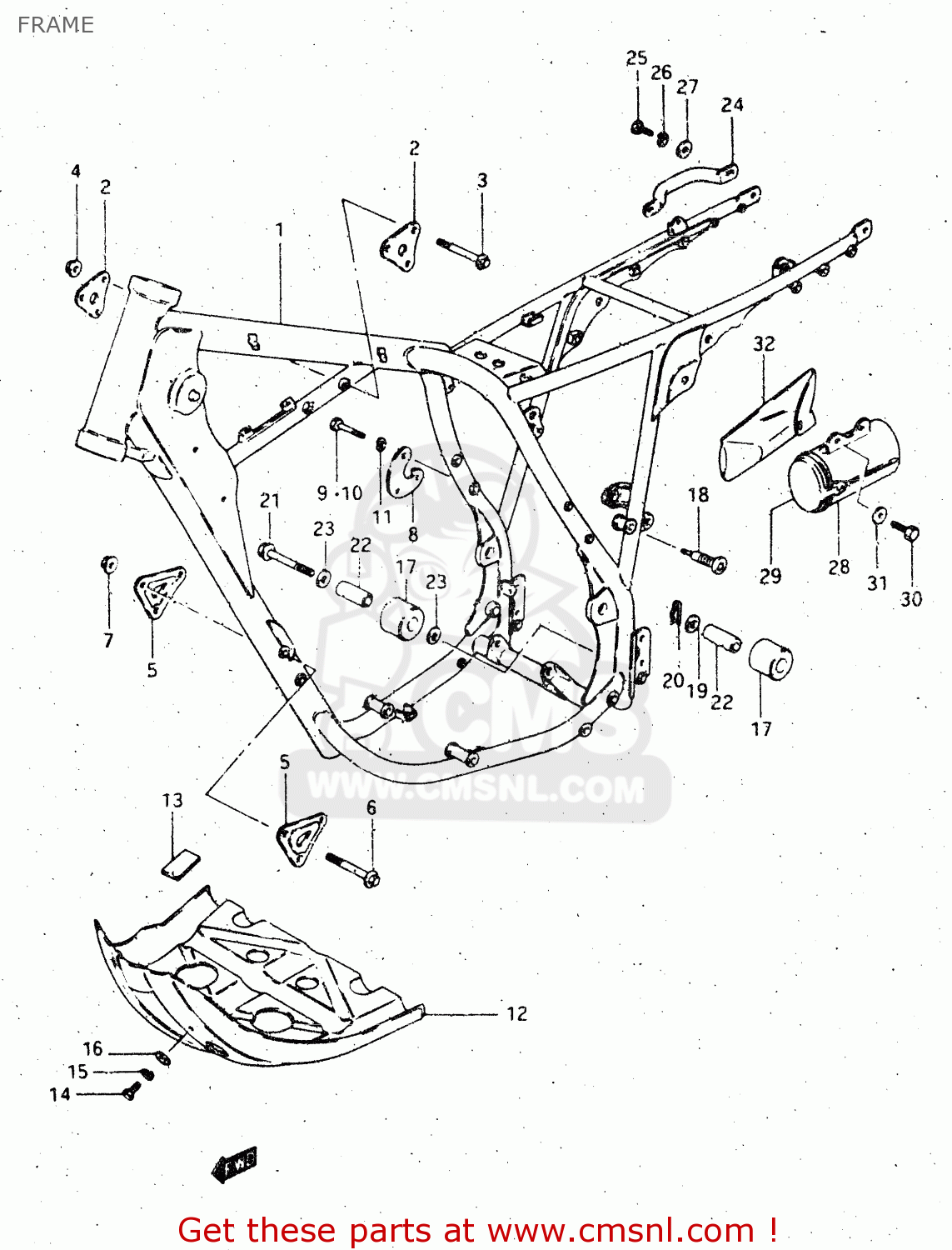

FRAME

ref

part #

description

quantity

1-1

4110037410019
ref: 1-1
MODEL D/E

FRAME

€ 980.00

1-2

411003741019F
ref: 1-2
MODEL E

FRAME (BLUE)

€ 0.00

1-3

4110037420019
ref: 1-3
MODEL D/E E22

FRAME (BLACK)

€ 0.00

1-4

411003742019F
ref: 1-4
MODEL E E22

FRAME (BLUE)

€ 0.00

2

4199137400
ref: 2

PLATE,ENGINE MOUNTING,UPPER

€ 0.00

3

0151708508
ref: 3

BOLT

€ 3.50

4

0831931088
ref: 4

NUT

€ 2.50

5

4199337400
ref: 5

PLATE,ENGINE MOUNTING,FRONT

€ 18.00

6

0910308075
ref: 6

BOLT 8X67

€ 6.50

7

0831931085
ref: 7

NUT

€ 2.50

8

4199437200
ref: 8

PLATE,ENGINE MOUNTING

€ 10.00

9

0110708605
ref: 9

BOLT, LOWER

€ 2.50

10

0110708505
ref: 10

BOLT

€ 3.00

11

0832121085
ref: 11

LOCK WASHER

€ 2.50

12

4251137400
ref: 12

PLATE,ENGINE,UNDER

€ 47.00

13

4252137400
ref: 13

CUSHION,ENGINE,UNDER

€ 0.00

14

0110706128
ref: 14

BOLT

€ 2.00

15

0832121068
ref: 15

LOCK WASHER

€ 2.50

16

0832221068
ref: 16

WASHER

€ 2.00

17

4391114200
ref: 17

ROLLER,CHAIN LENGTH CONTROL

€ 18.50

18

4391514101
ref: 18

BOLT,CHAIN LENGTH ROLLER

€ 20.50

19

0821210223
ref: 19

WASHER

€ 1.50

20

0833211088
ref: 20

E RING 8MM

€ 2.00

21

0910308043
ref: 21

BOLT(8X45)

€ 4.50

22

4391340400
ref: 22

SPACER,CHAIN LENGTH ROLLER

€ 8.00

23

0916008035
ref: 23

WASHER

€ 2.00

24

4161137400
ref: 24

GRIP,FRAME HANDLE

€ 0.00

25

0110708168
ref: 25

BOLT

€ 2.00

26

0832121086
ref: 26

WASHER,LOCK,8.

€ 2.50

27

0832221088
ref: 27

WASHER

€ 2.00

28

4155037210
ref: 28

HOLDER,TOOL

€ 20.50

29

4155237210
ref: 29

CAP,HOLDER

€ 5.00

30

0110706168
ref: 30

BOLT, UPPER

€ 3.00

31

0916006039
ref: 31

WASHER (6.5X18X1.6)

€ 2.00

32

0980001800
ref: 32

TOOL SET

€ 33.00
