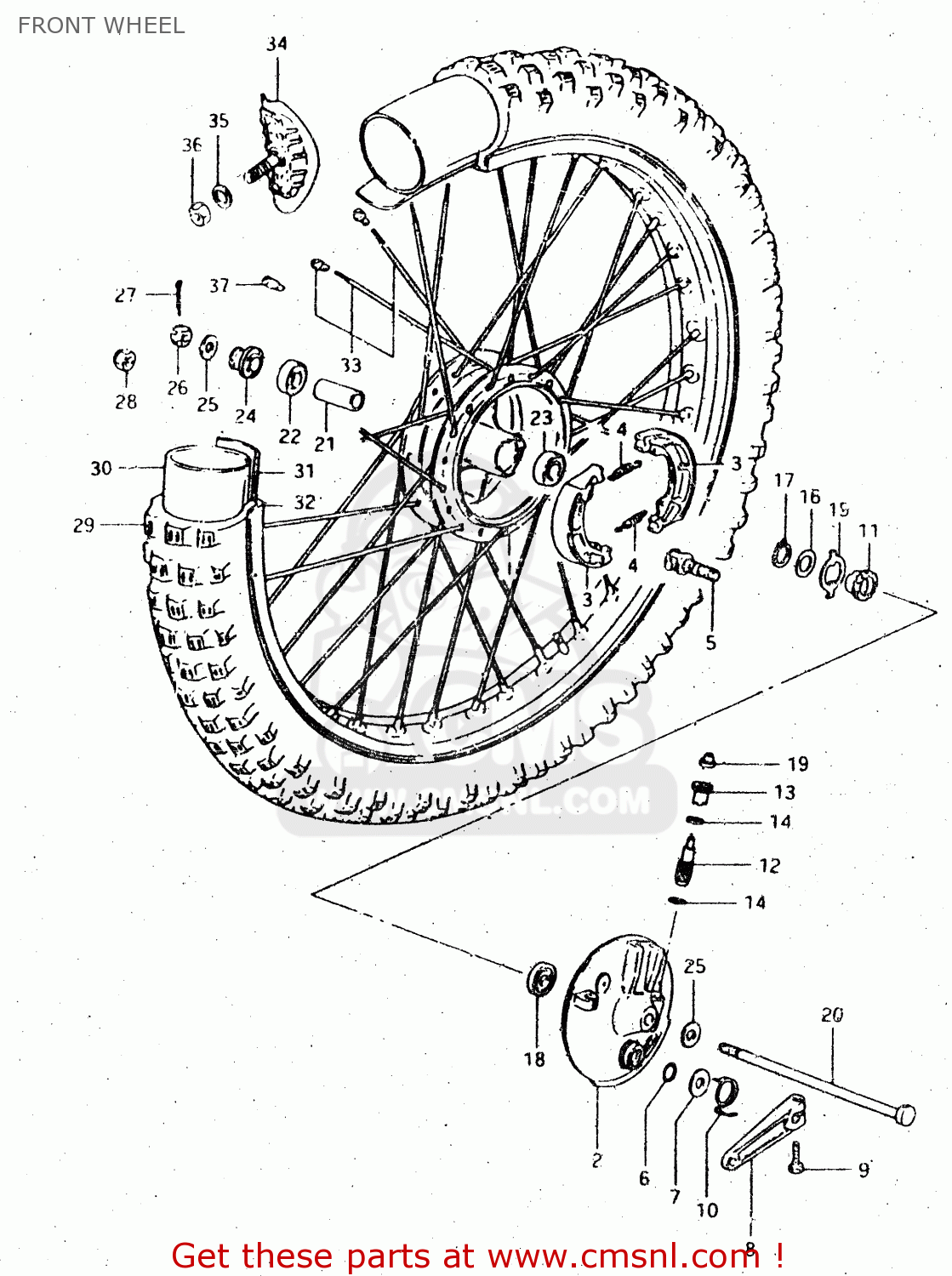

FRONT WHEEL

ref

part #

description

quantity

1

5411040302
ref: 1

DRUM,FRONT HUB

€ 208.00

2

5421037400
ref: 2

PANEL,FRONT BRAKE

€ 101.50

3

5441037200
ref: 3

SHOE,BRAKE

€ 14.00

4

5542041100
ref: 4

SPRING

€ 5.50

5

5444040302
ref: 5

CAM,FRONT BRAKE

€ 24.00

6

0928015001
ref: 6

O-RING,BOSS

€ 2.00

7

0916015001
ref: 7

WASHER (15X24X1.6)

€ 2.50

8

5445132400
ref: 8

LEVER,FRONT BRAKE CAM

€ 48.00

9

0110706258
ref: 9

BOLT

€ 2.00

10

0944832007
ref: 10

SPRING

€ 8.00

11

5461130302
ref: 11

GEAR,SPEEDOMETER

€ 24.50

12

5462130300
ref: 12

PINION,SPEEDOMETER

€ 13.00

13

5463249200
ref: 13

BUSHING,SPEEDOMETER PINION

€ 6.50

14

0916005001
ref: 14

WASHER (5.1X9X0.4)

€ 2.00

15

5466011031
ref: 15

DRIVER,SPEEDOMETER GEAR

€ 31.00

16

0916022001
ref: 16

WASHER(22.5X27X1)

€ 2.00

17

0833111229
ref: 17

CIRCLIP

€ 2.00

18

0928526003
ref: 18

SEAL,OIL(26X38X4)

€ 22.00

19

0928906001
ref: 19

SEAL,OIL(6X10X3)

€ 4.00

20

6471143000
ref: 20

AXLE,REAR

€ 28.50

21

0918012041
ref: 21

SPACER (12.6X19X52)

€ 4.50

22

0812362017
ref: 22

BEARING, RH

€ 15.00

23

0814362017
ref: 23

BEARING

€ 11.50

24

5474037200
ref: 24

SPACER,FRONT AXLE,RIGHT

€ 10.50

25

0832211128
ref: 25

WASHER

€ 2.00

26

0831441128
ref: 26

NUT, REAR AXLE

€ 2.50

27

0411130308
ref: 27

COTTER PIN

€ 1.50

28

0831921128
ref: 28
E22

NUT 12MM

€ 4.00

29

5510037410
ref: 29
IRC

TIRE 3.00-21

€ 0.00

30

5520016510
ref: 30

TUBE

€ 32.50

31

5526116510
ref: 31

PROTECTOR,WHEEL,INNER

€ 5.00

32

5531137220
ref: 32

RIM,FRONT WHEEL (1.60X21)(

€ 343.00

33

5532040410
ref: 33

SPOKE SET,FRONT

€ 39.00

34

6527028600
ref: 34

STOPPER,BEAD

€ 26.50

35

0832211088
ref: 35

WASHER

€ 2.00

36

0831012088
ref: 36

NUT

€ 2.00

37

5541130000
ref: 37

BALANCER,WHEEL (50G)

€ 4.50
