CRANKCASE COVER
DR500S 1983 (D)

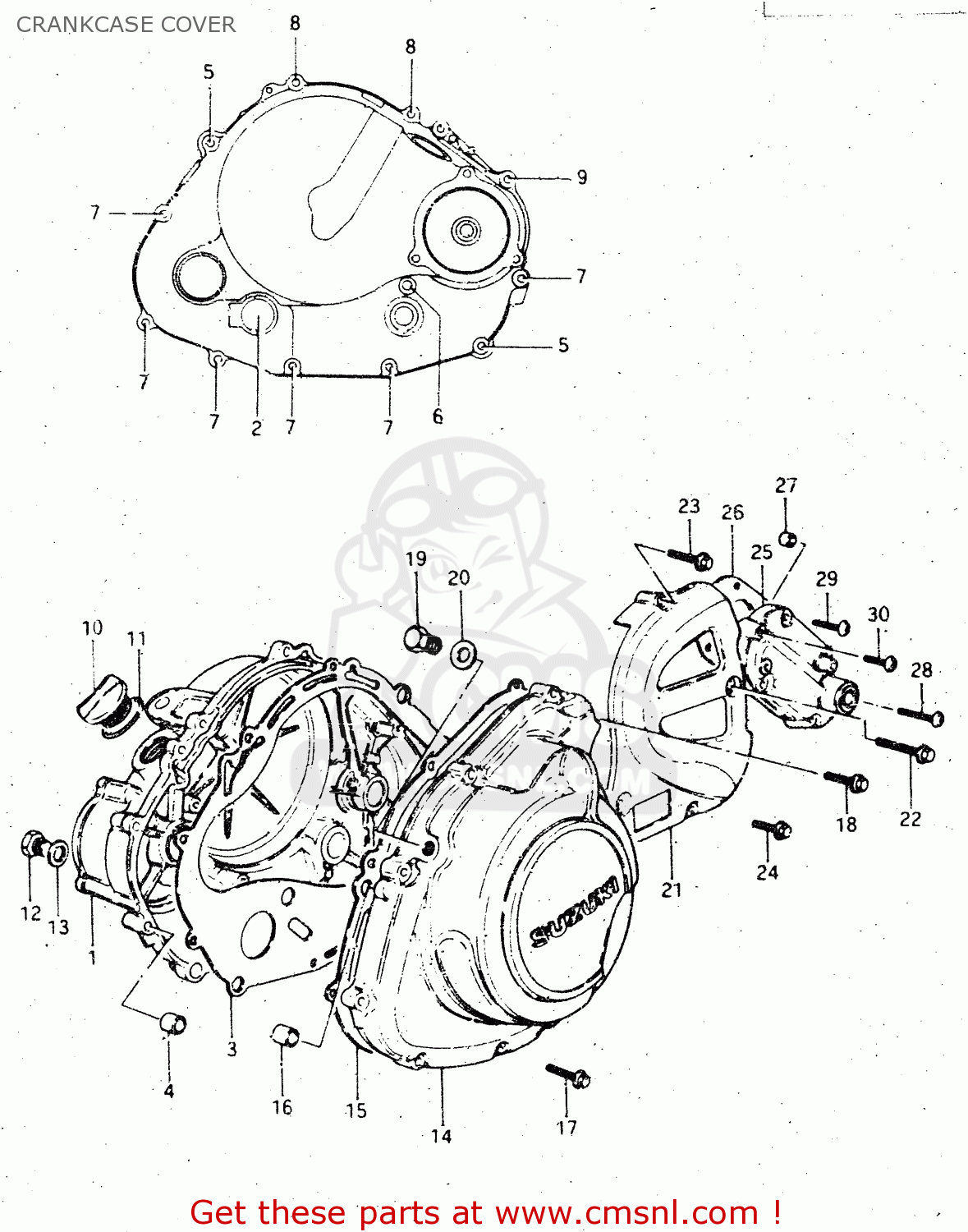

Crankcase cover diagram DR500S 1983 (D)
CRANKCASE COVER DR500S 1983 (D)
×
prices are in EUR
ref
part #
description
quantity
1
1134037401
ref: 1
COVER,CLUTCH
€ 226.50
2
1197145010
ref: 2
LENS,OIL LEVEL CHECK
€ 13.00
3
1148237400
ref: 3
GASKET,CLUTCH COVER (MCA)
€ 20.50
4
0920613001
ref: 4
PIN
€ 2.50
5
0154706505
ref: 5
BOLT 6X50
€ 3.50
6
0154706404
ref: 6
BOLT 6X40
€ 3.00
7
0154706354
ref: 7
BOLT 6X35
€ 3.00
8
0154706254
ref: 8
BOLT 6X25
€ 2.50
9
0912506035
ref: 9
SCREW(6X25)
€ 1.50
10
0925930002
ref: 10
CAP
€ 9.00
11
0928032005
ref: 11
O RING(D:2.2,ID:32)
€ 2.00
12
0924714015
ref: 12
PLUG(14X12)
€ 2.50
13
0916814004
ref: 13
GASKET(14X19.2X2) (NAS)
€ 2.50
14
1135137402
ref: 14
COVER,MAGNETO
€ 113.00
15
1148337400
ref: 15
GASKET,MAGNETO COVER (MCA)
€ 41.00
16
0920613001
ref: 16
PIN
€ 2.50
17
0154706304
ref: 17
BOLT 6X30
€ 2.50
18
0154706254
ref: 18
BOLT 6X25
€ 2.50
19
0924712103
ref: 19
PLUG(12X9)
€ 3.50
20
0916812002
ref: 20
GASKET(12.1X16.2X3.7) (NAS)
€ 2.00
21
1136137401
ref: 21
COVER,ENGINE SPROCKET
€ 54.00
22
0154706454
ref: 22
BOLT
€ 3.00
23
0154706304
ref: 23
BOLT 6X30
€ 2.50
24
0154706205
ref: 24
BOLT 6X20
€ 2.50
25
1137137400
ref: 25
COVER,GEAR SHIFT
€ 37.00
26
1148537400
ref: 26
CUSHION,ENGINE SPROCKET
€ 9.00
27
0421109129
ref: 27
PIN
€ 2.00
28
0211206358
ref: 28
SCREW (6X35)
€ 2.50
29
0211206308
ref: 29
SCREW 6X30
€ 2.50
30
0211206208
ref: 30
SCREW
€ 2.00
