HANDLEBAR (MODEL E)
DR500S 1983 (D)

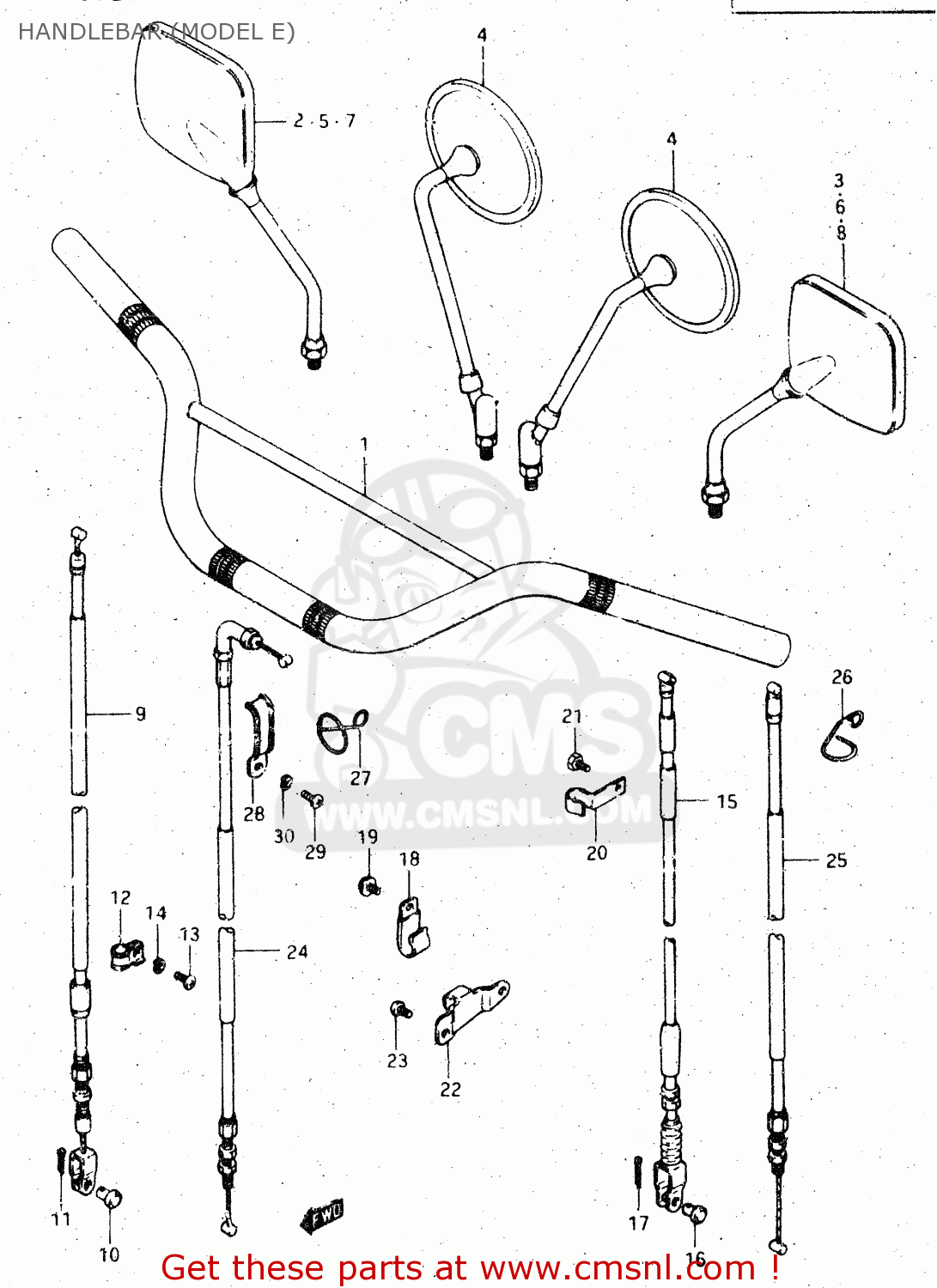

Handlebar (model e) diagram DR500S 1983 (D)
HANDLEBAR (MODEL E) DR500S 1983 (D)
×
prices are in EUR
ref
part #
description
quantity
1
5611037410291
ref: 1
HANDLEBAR (BLACK)
€ 59.50
2
5650001A00
ref: 2
MIRROR ASSEMBLY,REAR VIEW
€ 33.00
3
5660001A00
ref: 3
MIRROR ASSEMBLY,LEFT
€ 48.00
4
5650008010
ref: 4
E2,E4,E21
MIRROR ASSY,RH
€ 119.50
5
5650001A10
ref: 5
E22
MIRROR ASSEMBLY,RIGHT
€ 57.00
6
5660001A10
ref: 6
E22
MIRROR ASSEMBLY,LEFT
€ 30.50
7
5650001A20
ref: 7
E18,E24
MIRROR, REAR VIEW RH
€ 222.50
8
5660001A20
ref: 8
E18,E24
MIRROR, REAR VIEW LH
€ 196.00
9
5810041302
ref: 9
CABLE ASSEMBLY,FRONT BRAKE
€ 33.50
10
0920005001
ref: 10
PIN(L:17.5)
€ 1.50
11
0411120158
ref: 11
PIN
€ 1.50
12
5862140401
ref: 12
GUIDE,CABLE
€ 3.50
13
0211206108
ref: 13
SCREW
€ 1.50
14
0832121068
ref: 14
LOCK WASHER
€ 2.50
15
5820037400
ref: 15
CABLE ASSEMBLY,CLUTCH
€ 32.50
16
0920006011
ref: 16
PIN(L:15)
€ 2.50
17
0411120158
ref: 17
PIN
€ 1.50
18
0940300059
ref: 18
CLAMP
€ 3.50
19
0215206108
ref: 19
SCREW
€ 2.00
20
5862637400
ref: 20
CLAMP,CLUTCH CABLE NO.1
€ 8.50
21
0110706104
ref: 21
BOLT
€ 2.00
22
5863437400
ref: 22
STOPPER,CLUTCH CABLE
€ 0.00
23
0211206125
ref: 23
SCREW
€ 1.50
24
5830037450
ref: 24
CABLE ASSY,THROTTLE
€ 36.50
25
5890037400
ref: 25
CABLE ASSY,DECOMP
€ 18.50
26
5862117200
ref: 26
GUIDE
€ 5.50
27
5862137400
ref: 27
GUIDE,CABLE
€ 0.00
28
0940307309
ref: 28
CLAMP
€ 2.00
29
0211206108
ref: 29
SCREW
€ 1.50
30
0832121068
ref: 30
LOCK WASHER
€ 2.50
