PILOT BOX

DR500S 1983 (D)

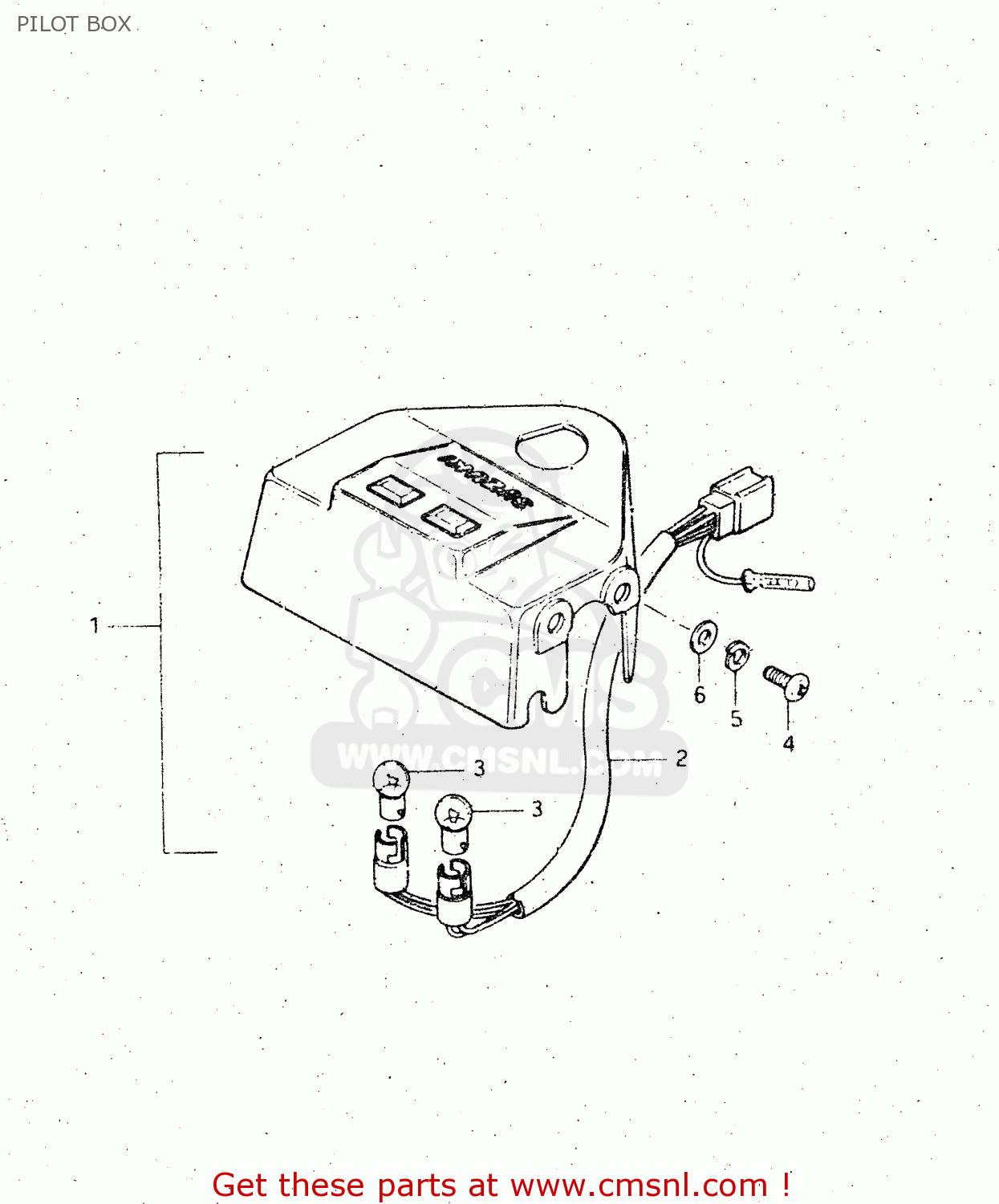

Pilot box diagram DR500S 1983 (D)

PILOT BOX DR500S 1983 (D)

PILOT BOX DR500S 1983 (D)

prices are in EUR

ref

part #

description

quantity

1

3638037402
ref: 1

PILOT BOX ASSY

€ 51.50

2

3632537400
ref: 2

SOCKET

€ 0.00

3

0947106002
ref: 3

BULB(6V/3W)

€ 2.50

4

0211205165
ref: 4

SCREW

€ 2.00

5

0832121055
ref: 5

WASHER,LOCK

€ 3.00

6

0832221055
ref: 6

WASHER,5MM

€ 2.50
