CYLINDER HEAD
DR500S 1983 (D)

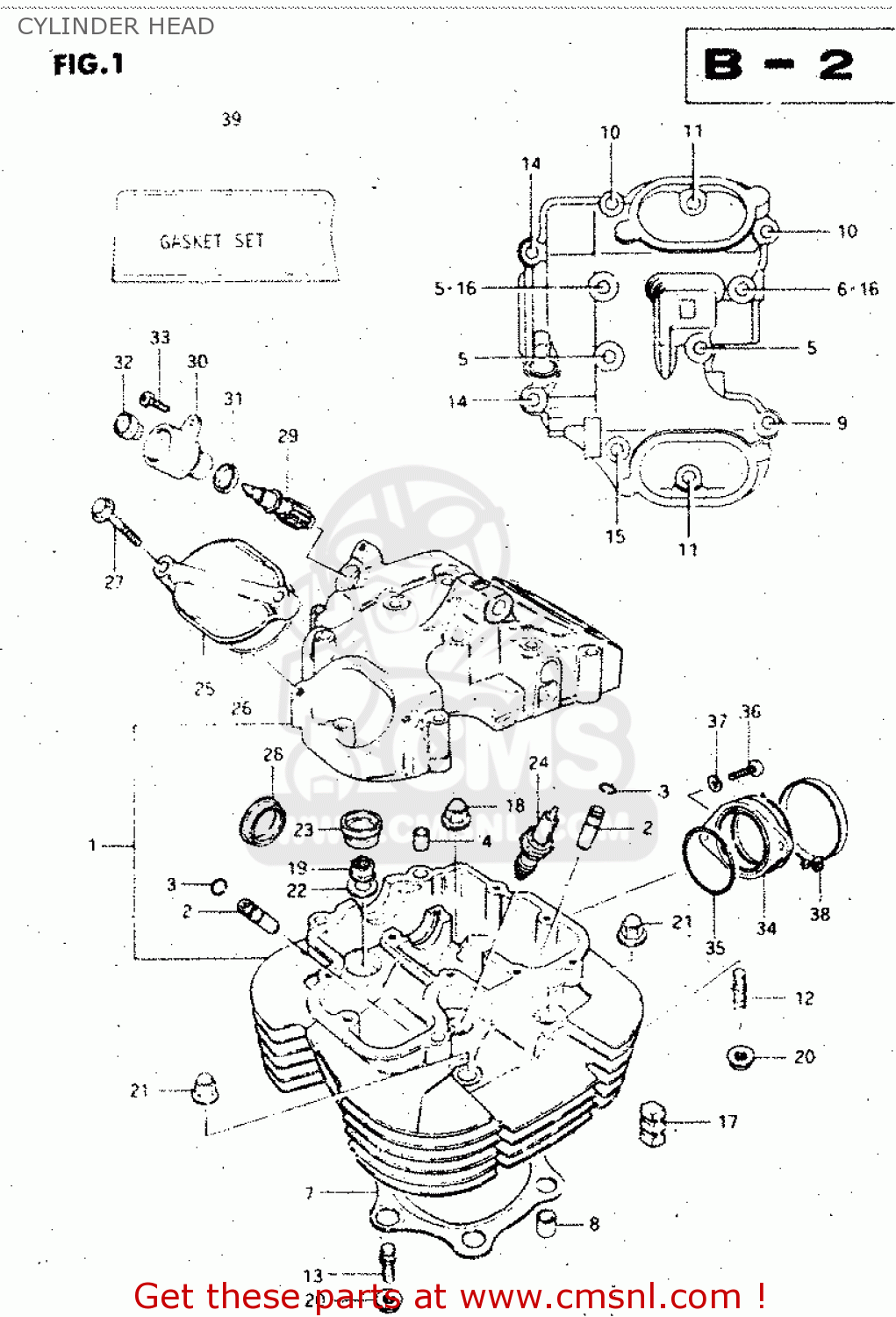

Cylinder head diagram DR500S 1983 (D)
CYLINDER HEAD DR500S 1983 (D)
×
prices are in EUR
ref
part #
description
quantity
1
1110037400
ref: 1
HEAD,CYLINDER (4-VALVE)
€ 748.00
2
1111537470
ref: 2
GUIDE,VALVE
€ 20.00
3
0938110003
ref: 3
RING,SNAP
€ 2.50
4
0920608001
ref: 4
PIN(6.2X8X11)
€ 2.00
5
0151706608
ref: 5
BOLT (6X60)
€ 2.50
6
0910306040
ref: 6
BOLT 6X55
€ 7.00
7
1114137400
ref: 7
GASKET,CYLINDER HEAD (NAS)
€ 42.00
8
0920613001
ref: 8
PIN
€ 2.50
9
0151706505
ref: 9
BOLT 6X50
€ 2.00
10
0151706455
ref: 10
BOLT (6X45)
€ 2.50
11
0151706305
ref: 11
BOLT 6X30
€ 2.50
12
0910808084
ref: 12
STUD
€ 3.50
13
0910808083
ref: 13
STUD
€ 4.00
14
0910306085
ref: 14
BOLT(6X130)
€ 4.50
15
0151706608
ref: 15
BOLT (6X60)
€ 2.50
16
0916806015
ref: 16
WASHER
€ 2.00
17
1125136500
ref: 17
PAD,CYLINDER
€ 6.50
18
0915910026
ref: 18
NUT
€ 6.00
19
0831616105
ref: 19
NUT
€ 2.00
20
0831616085
ref: 20
NUT 8MM
€ 3.00
21
0915910033
ref: 21
NUT
€ 6.00
22
0916810017
ref: 22
GASKET(10.5X22X2) (NAS)
€ 3.50
23
1114537400
ref: 23
NUT,CYLINDER HEAD SEAL
€ 12.00
24-1
0948200144
ref: 24-1
SPARK PLUG D8EA
€ 3.50
24-2
0948200145
ref: 24-2
SPARK PLUG X24ES-U
€ 3.50
24-3
0948200149
ref: 24-3
E2,E4,E6,E18,E21,E22
SPARK PLUG DR8ES-L
€ 3.50
24-4
0948200223
ref: 24-4
E2,E4,E6,E18,E21,E22
PLUG,SPARK(X24ESR-U)
€ 3.50
25
1117537401
ref: 25
CAP,INSPECTION HOLE
€ 16.00
26
0928060004
ref: 26
O RING(D:2.4,ID:23)
€ 4.50
27
0151706255
ref: 27
BOLT
€ 2.50
28
0924130004
ref: 28
PLUG(OD:30)
€ 6.50
29
2643137400
ref: 29
GEAR,TACHOMETER DRIVEN
€ 35.00
30
2644149000
ref: 30
SLEEVE,TACHOMETER DRIVE GEAR
€ 18.00
31
2645145000A
ref: 31
SEAL,TACHOMETER DRIVEN
€ 4.50
32
0928905002
ref: 32
SEAL,OIL(5X12X8)
€ 11.00
33
0912805101
ref: 33
SCREW(5X12)
€ 1.50
34
1311037400
ref: 34
PIPE,INTAKE
€ 38.50
35
0928046001
ref: 35
O-RING (D:2.4 ID:45.7)
€ 9.50
36
0211206168
ref: 36
SCREW
€ 2.50
37
0832121068
ref: 37
LOCK WASHER
€ 2.50
38
0940258306
ref: 38
CLAMP
€ 5.00
39
1140037843
ref: 39
OPT
GASKET SET
€ 57.50
