CRANKCASE

GP125 1978 (C) (E01 E02 E04 E06 E13 E17 E18 E21 E22 E24 E30)

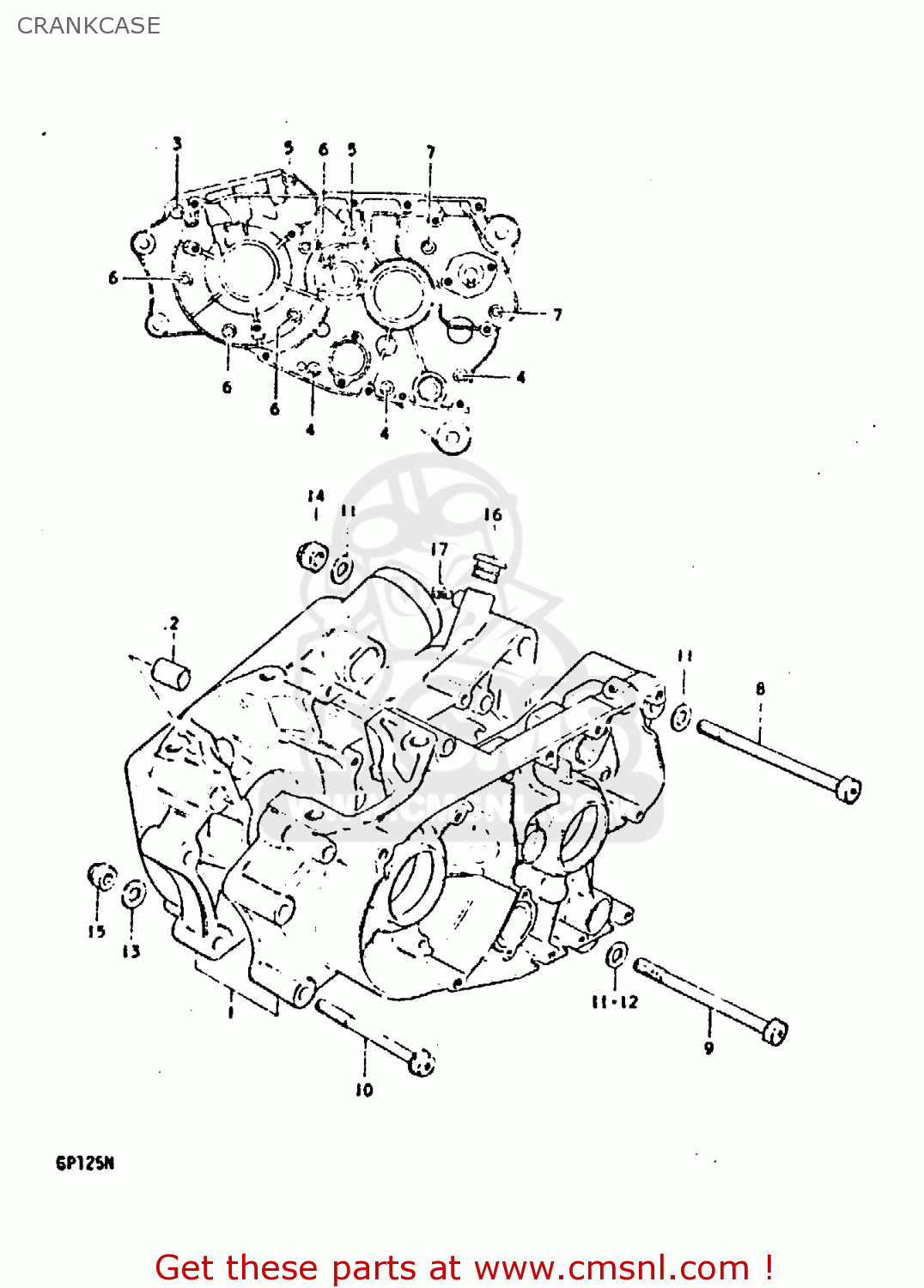

Crankcase diagram GP125 1978 (C) (E01 E02 E04 E06 E13 E17 E18 E21 E22 E24 E30)

CRANKCASE GP125 1978 (C) (E01 E02 E04 E06 E13 E17 E18 E21 E22 E24 E30)
CRANKCASE GP125 1978 (C) (E01 E02 E04 E06 E13 E17 E18 E21 E22 E24 E30)
CRANKCASE GP125 1978 (C) (E01 E02 E04 E06 E13 E17 E18 E21 E22 E24 E30)
prices are in EUR
ref
part #
description
quantity
1
1130039831
ref: 1
CRANKCASE SET
€ 436.00
2
0920613001
ref: 2
PIN
0920613001
€ 2.50
3
0211206708
ref: 3
SCREW 6X70
0211206708
€ 3.00
4
0211206658
ref: 4
SCREW 6X65
0211206658
€ 2.00
5
0211206557
ref: 5
SCREW
0211206557
€ 2.50
6
0211206508
ref: 6
SCREW
0211206508
€ 2.50
7
0211206358
ref: 7
SCREW (6X35)
€ 2.50
8
0910010099
ref: 8
BOLT 10X120
0910010099
€ 3.50
9-1
0910010009
ref: 9-1
BOLT(10X110)
0910010009
€ 3.50
10
0151708908
ref: 10
BOLT 8X90
€ 3.50
11
0832211108
ref: 11
WASHER
€ 2.50
13
0832211088
ref: 13
WASHER
0832211088
€ 2.00
14-1
0915910011
ref: 14-1
NUT
0915910011
€ 3.00
15-1
0915908020
ref: 15-1
NUT
0915908020
€ 2.50
