MUFFLER

GP125 1978 (C) (E01 E02 E04 E06 E13 E17 E18 E21 E22 E24 E30)

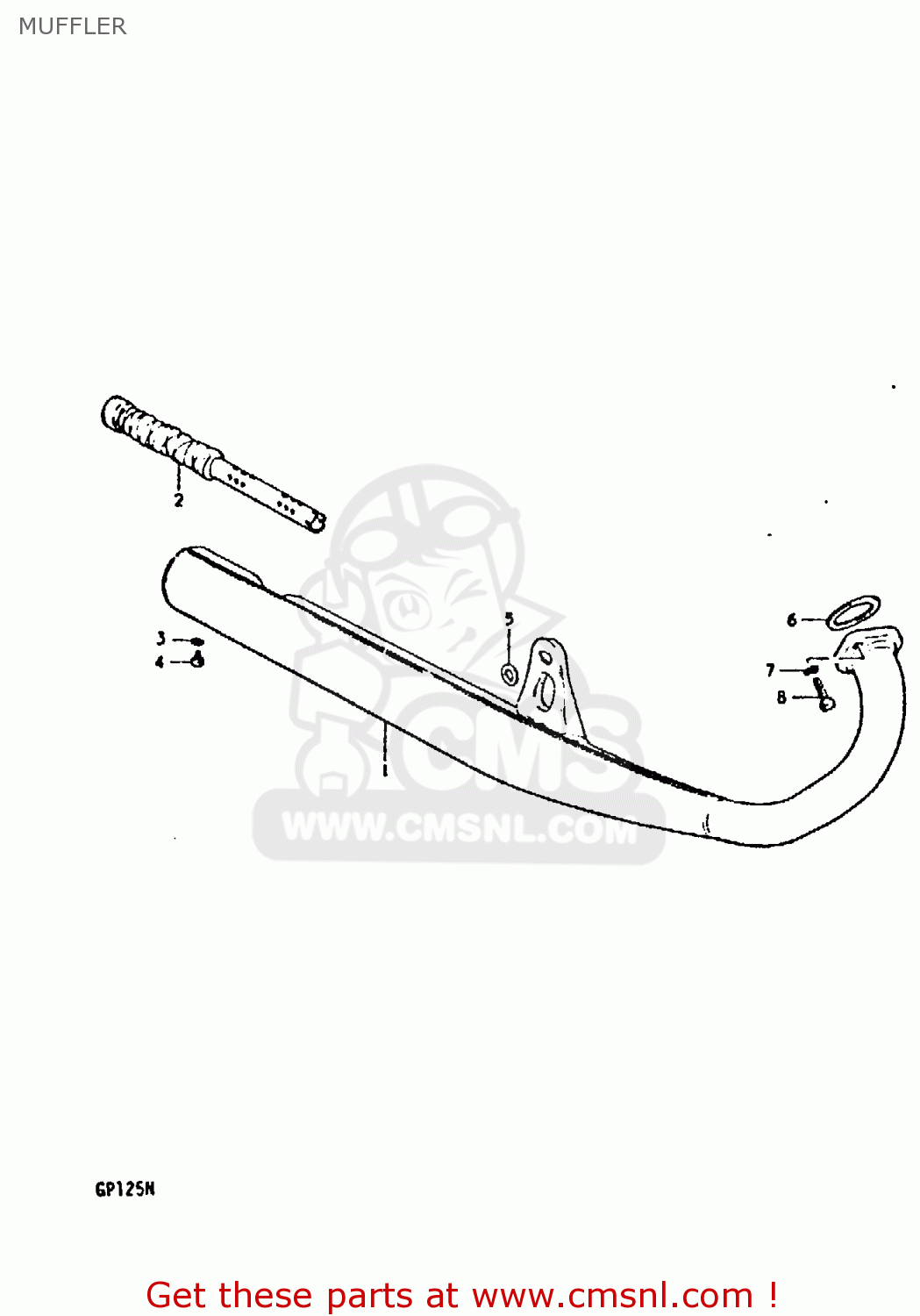

Muffler diagram GP125 1978 (C) (E01 E02 E04 E06 E13 E17 E18 E21 E22 E24 E30)

prices are in EUR

ref

part #

description

quantity

1-2

1430139641
ref: 1-2
FROM 14301-39640 E2,

MUFFLER ASSY

€ 385.00

2-2

1451039100
ref: 2-2
E2, E4, E6, E17, E18

PIPE, BAFFLE

€ 30.50

0832121058
ref: 3

LOCK WASHER

€ 2.00

0912805004
ref: 4

BOLT(5X8)

€ 2.00

0916012012
ref: 5

WASHER (12.5X24X3.2)

€ 2.50

1418111010
ref: 6

GASKET,EXHAUST PIPE (NAS)

€ 8.00

0832121088
ref: 7

LOCK WASHER

€ 2.00

0110708258
ref: 8

BOLT

€ 2.50
