TURN SIGNAL LAMP (E18)

GP125 1978 (C) (E01 E02 E04 E06 E13 E17 E18 E21 E22 E24 E30)

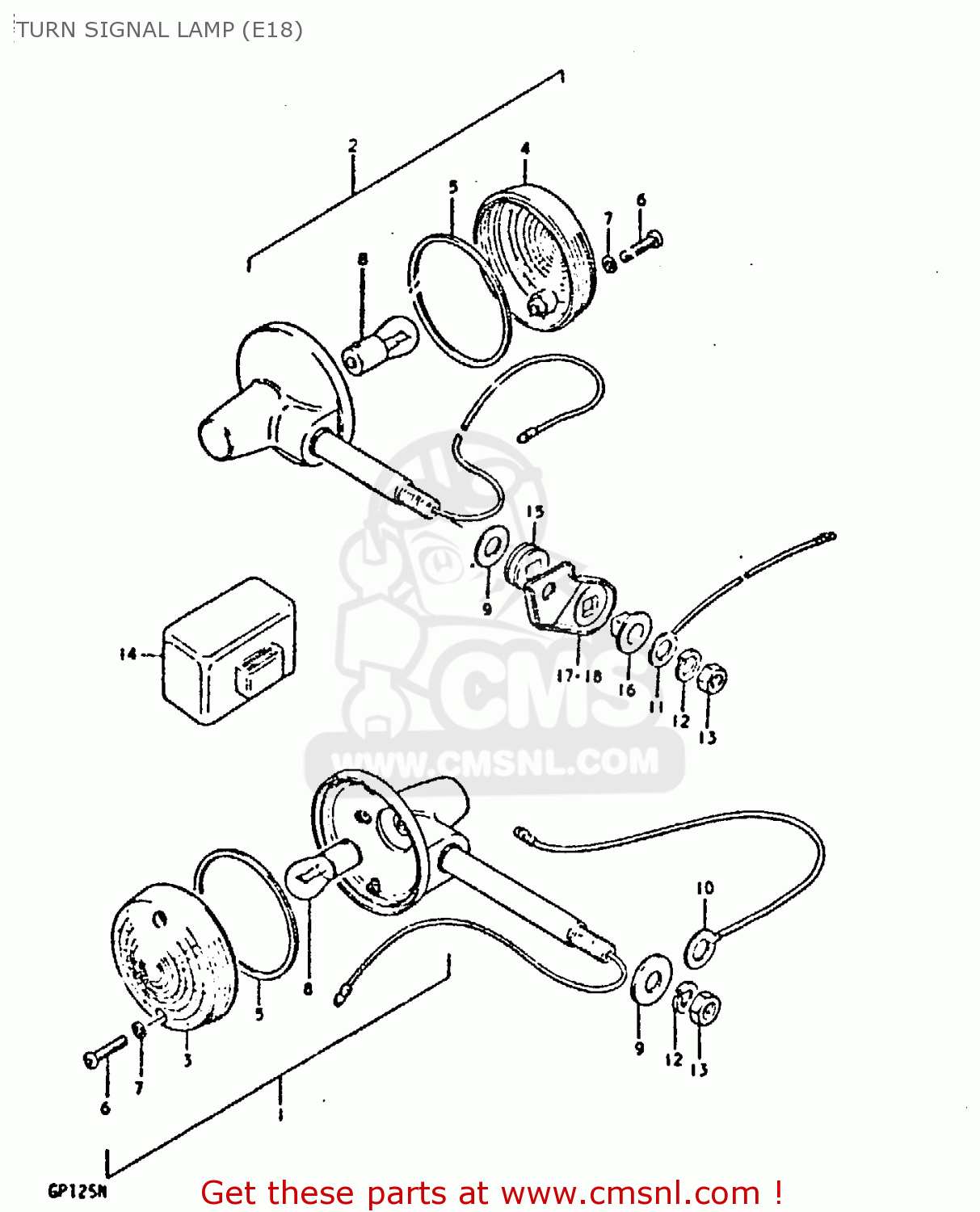

Turn signal lamp (e18) diagram GP125 1978 (C) (E01 E02 E04 E06 E13 E17 E18 E21 E22 E24 E30)

prices are in EUR

ref

part #

description

quantity

1-1

3560139280
ref: 1-1
TO 35601-39281

LAMP, FRONT TURN SIGNAL

€ 0.00

2-1

3560339282
ref: 2-1
TO 35603-39283

LAMP, REAR TURN SIGNAL

€ 65.00

3561228620
ref: 3

LENS

€ 10.50

4-1

3565239280
ref: 4-1

LENS

€ 9.00

3561328620
ref: 5

GASKET (NAS)

€ 7.00

3562347610
ref: 6

SCREW

€ 1.50

3562743010
ref: 7

GASKET (NAS)

€ 2.00

0947106041
ref: 8

BULB (6V,21W)

€ 3.50

0916010006
ref: 9

WASHER (10.5X30X2.3)

€ 2.50

3861048611
ref: 14

RELAY, TURN SIGNAL

€ 51.50
